Be Quiet PC Case Pure Base 501 Airflow Window Midi Tower White

Specifications:

• Product Number: BGW75
• Model: PURE BASE 501 Airflow Window White
• Colour: White

• Motherboard compatibility:

  • ATX
  • M-ATX
  • Mini-ITX

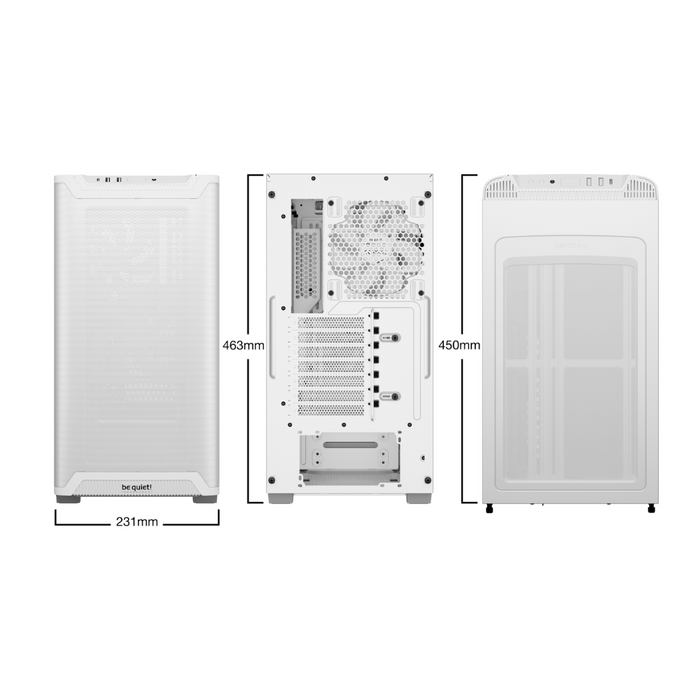

• Case size excl. stands:
  • Length: 450mm
  • Width: 231mm
  • Height: 449mm
• Case size incl. stands:
  • Length: 450mm
  • Width: 231mm
  • Height: 463mm
• Volume (L): 39.2

• PSU form factor: ATX PS/2

• Net weight (kg): 7.2

• Expansion slots: 7

Pre-installed fans

• Fan at front: 1x Silent Wings 3 140mm PWM

• Fan at rear: 1x Silent Wings 3 140mm PWM

• Dimensions Front:
  • Length: 140mm
  • Width: 25mm
  • Height: 140mm
• Dimensions Rear:
  • Length: 140mm
  • Width: 25mm
  • Height: 140
• Fan speed at 100% PWM / 12V (rpm): 1200

• Airflow at 100% PWM / 12V (CFM / m3/h): 57.4/97.5

• Air Pressure at 100% PWM / 12V (mm H2O): 0.96

• Noise level at 100% PWM / 12V (dB(A)): 21.9

• Voltage range (V DC): 5 - 13.2

• Input power (W): 3.6

• Input current (A): 0.06

• Connector: 4-pin PWM

• Lifespan (h / 25°C): 80,000


Maximum fan installation

• Maximum fans: 6

• Top (mm): 2 x 140 / 2 x 120mm

• Front (mm): 2 x 140 / 3 x 120mm

• Rear (mm): 1x 140/ 1x 120mm

Optional radiator installation

• Top (mm): 120 / 140

• Front (mm): 120 / 140 / 240 / 280 / 360

• Rear (mm): 120/140


PSU compatibility

• Maximum dimensions excl. bottom fan (mm): 180

• Maximum dimensions incl. bottom fan (mm): 180

Graphics card

• HDD cage (in height of graphics card) installed (mm): 368

• HDD cage (in height of graphics card) removed (mm): 368

• Maximum PCIe slots with vertical graphics card (pcs.): 5

Drive bay capacity

• 3.5 slots (scope of delivery): 2

• 3.5 slots (max.): 2

• 2.5 slots (scope of delivery): 5

• 2.5 slots (max.): 5

Cooling

• Max. construction height of CPU cooler unit (mm): 178

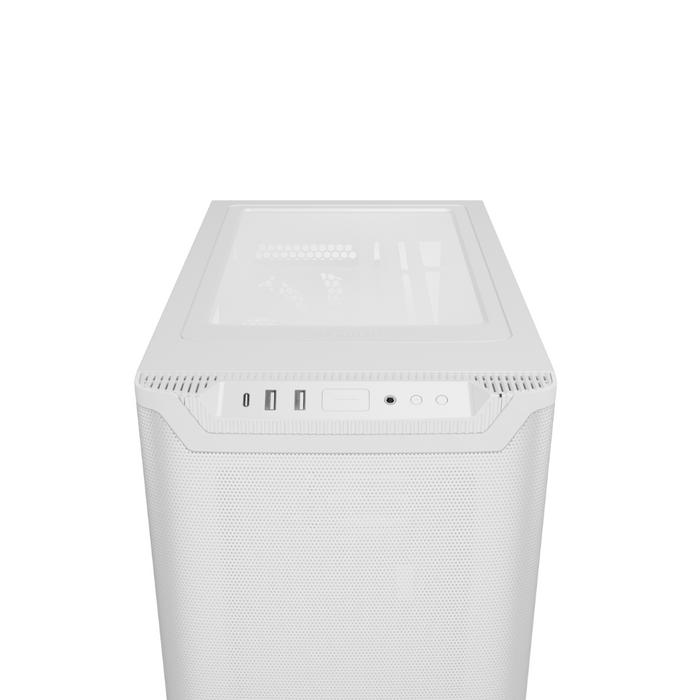

I/O Panel

• USB 3.2 Gen. 2 Type C: 1
• USB 3.2 Type A: 2

• HD Audio I/O: Mic + Audio

Insulation and damping

• Side panel insulation mats

• Anti-vibration decoupled HDD

• Anti-vibration decoupled fan

• Anti-vibration decoupled PSU

• Anti-vibration decoupled motherboard-tray

Scope of delivery

• Screw set (Drives/Motherboard)
• Additional standoffs (pcs.): 1
• Cable ties (pcs.): 12

Removeable dust filters

• Bottom: 1
• Top: 1
• Front: 1

Material

• Top cover: Steel

• Front panel: ABS

• Side panel: Steel

• Side Panel Window: Glass
• Stands: ABS
