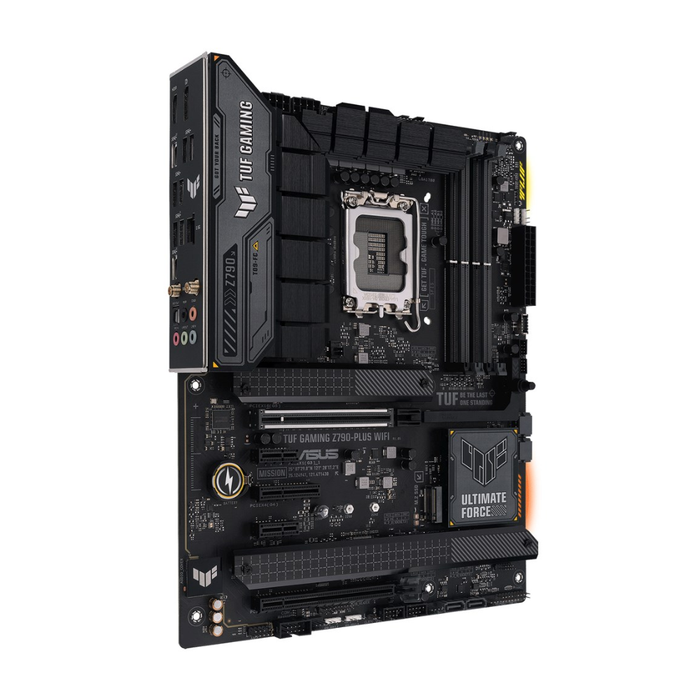

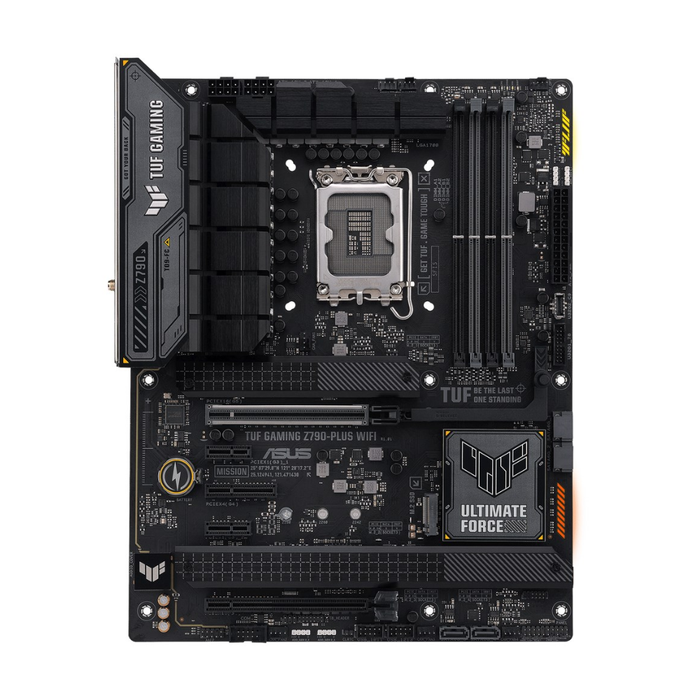

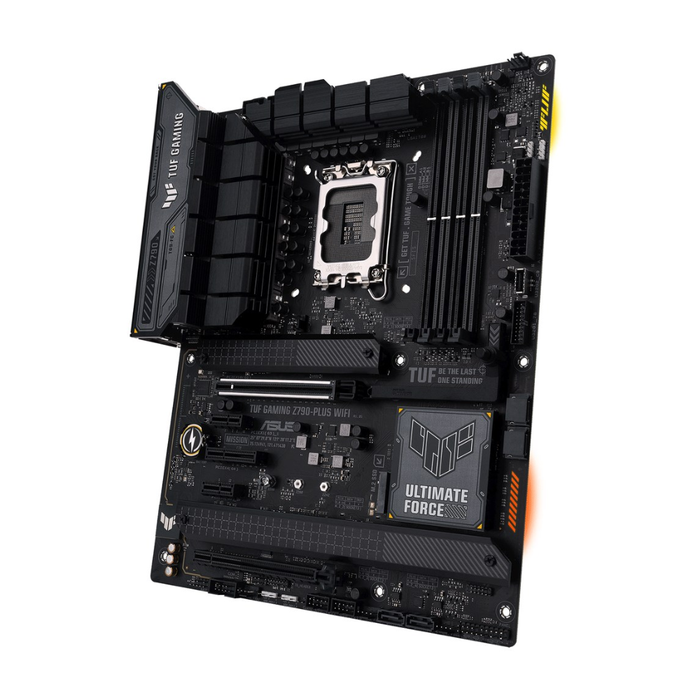

Asus Motherboard TUF Gaming Z790-Plus WiFi

Specifications:

• Product Number: 90MB1D80-M0EAY0

Processor

• Processor manufacturer: Intel

• Processor socket: LGA 1700

• Compatible processor series: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Gold
• Supported processor sockets: LGA 1700

Memory

• Supported memory types: DDR5-SDRAM

• Number of memory slots: 4

• Memory slots type: DIMM

• Memory channels: Dual-channel

• ECC сompatibility: Non-ECC

• Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 MHz

• Supported memory clock speed (max): 7200 MHz

• Maximum internal memory: 128 GB

• Unbuffered memory: Yes

Storage controllers

• Supported storage drive types: HDD & SSD

• Supported storage drive interfaces: M.2, SATA III

• RAID support: Yes
• RAID levels: 0, 1, 10, 5

Graphics

• Parallel processing technology support: Not supported

• On-board graphics card: No

Internal I/O

• USB 2.0 connectors: 2

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

• Number of SATA III connectors: 4

• Front panel audio connector: Yes

• ATX Power connector (24-pin): Yes

• CPU fan connector: Yes

• Number of chassis fan connectors: 4

• EPS power connector (8-pin): Yes

• Number of COM connectors: 1

• Thunderbolt headers: 1

• 12V power connector: Yes

• RGB LED pin header: Yes

Rear panel I/O ports

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

• USB 3.2 Gen 2x2 Type-C ports quantity: 1

• Ethernet LAN (RJ-45) ports: 1

• HDMI ports quantity: 1

• HDMI version: 2.1

• DisplayPorts quantity: 1

• DisplayPort version: 1.4

• Headphone outputs: 1

• Line-in: Yes

• Microphone in: Yes

• S/PDIF out port: Yes

• WiFi-AP antenna jack: 2

Network

• Ethernet LAN: Yes

• Ethernet interface type: 2.5 Gigabit Ethernet

• Wi-Fi: Yes

• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)

• Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-
• Fi 6 (802.11ax)

• Bluetooth: Yes

• Bluetooth version: 5.3

Features

• Motherboard chipset: Intel Z790

• Audio chip: Realtek S1220A

• Audio output channels: 7.1 channels

• Product colour: Black

• Motherboard form factor: ATX

• Motherboard chipset family: Intel

• Power source type: ATX

• Windows operating systems supported: Windows 10, 11

Expansion slots

• PCI Express x1 (Gen 3.x) slots: 2

• PCI Express x4 (Gen 4.x) slots: 1

• PCI Express x16 (Gen 4.x) slots: 1

• PCI Express x16 (Gen 5.x) slots: 1

• Number of M.2 (M) slots: 4

BIOS

• BIOS type: UEFI AMI

Weight & dimensions

• Width: 305 mm

• Depth: 244 mm

Packaging content

• Cables included: SATA

• User guide: Yes
