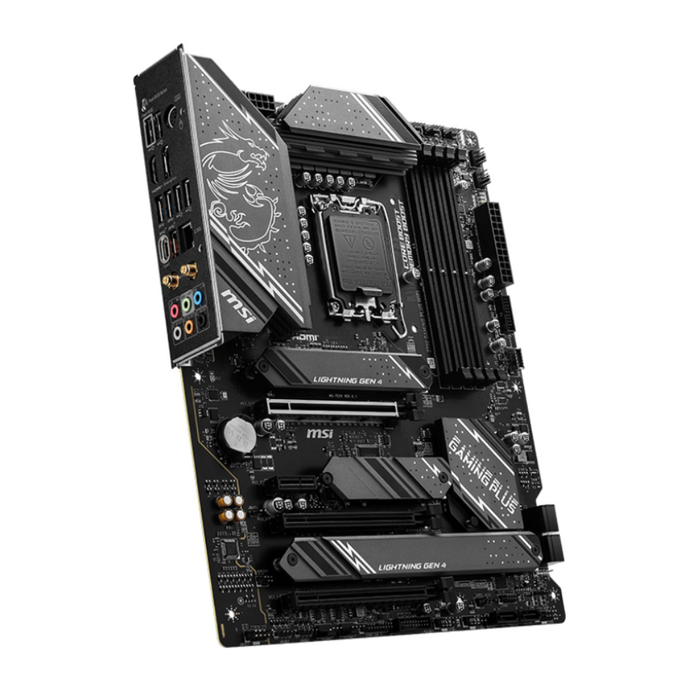

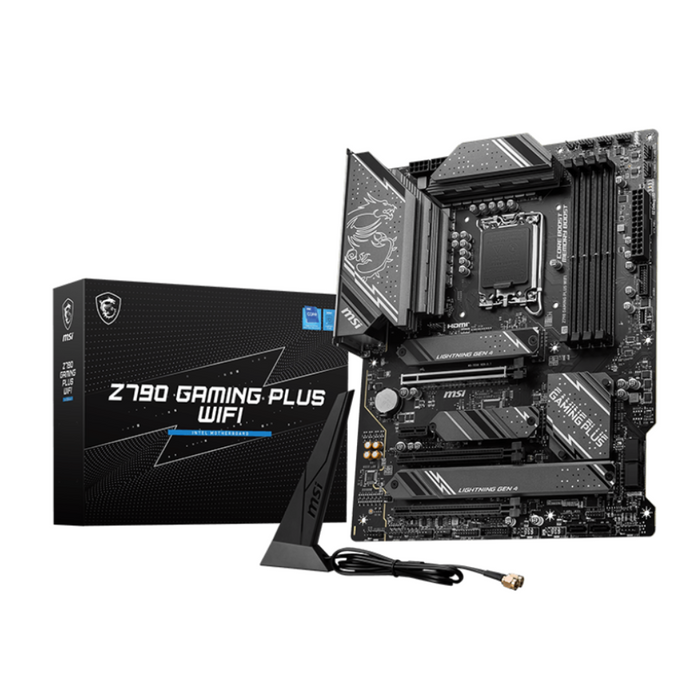

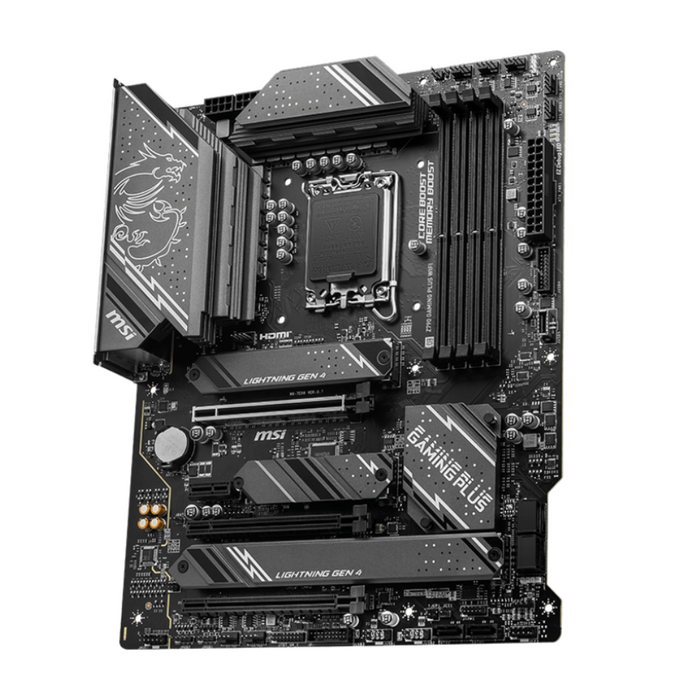

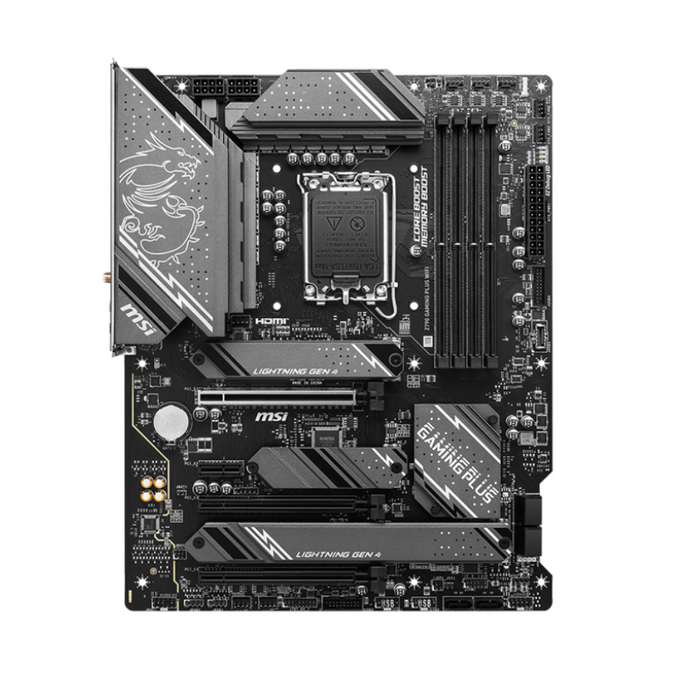

MSI Motherboard Z790 Plus WiFi

Specifications:

• Product Number: 7E06-026R

Chipset

• Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

• LGA 1700

Memory

• 4x DDR5, Maximum Memory Capacity 256GB

• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
• Supports Intel XMP3.0 OC

• Supports Dual-Controller Dual-Channel mode

• Supports non-ECC, un-buffered memory

Onboard Graphics

• 1x HDMI

• Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz

• 1x DisplayPort

• Support DP 1.4, maximum resolution of 4K 60Hz

Slot

• 3x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

• Realtek ALC897 Codec

• 7.1-Channel High Definition Audio

Storage

• 4x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 6x SATA 6G

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 4x USB 5Gbps Type A (Front)

• 1x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Rear)

LAN

• Intel 2.5Gbps LAN

Internal I/O

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 6x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Tuning Controller connector(JDASH)

• 2x Addressable V2 RGB LED connector (JARGB_V2)

• 2x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 1x USB4 card connector (JTBT_U4_1, supports RTD3)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

Wireless LAN & Bluetooth

• Intel Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.3, FIPS, FISMA

• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

• Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11

LED Feature

• 4x EZ Debug LED

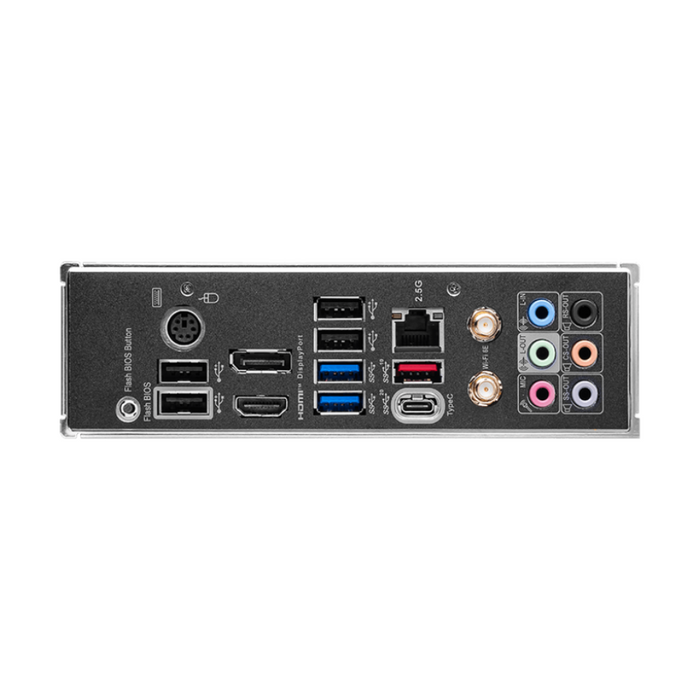

Back Panel Ports

• Keyboard / Mouse

• DisplayPort

• USB 2.0

• 2.5G LAN Port

• Wi-Fi / Bluetooth Antenna

• Audio Connectors

• Flash BIOS Button

• USB 2.0

• HDMI 2.1 Port

• USB 3.2 Gen 1 5Gbps Type-A

• USB 3.2 Gen 2x2 20Gbps Type-C

• USB 3.2 Gen 2 10Gbps Type-A

Operating System

• Support for Windows 11 64-bit, Windows 10 64-bit

PCB Info

• ATX

• 243.84mm x 304.8mm
