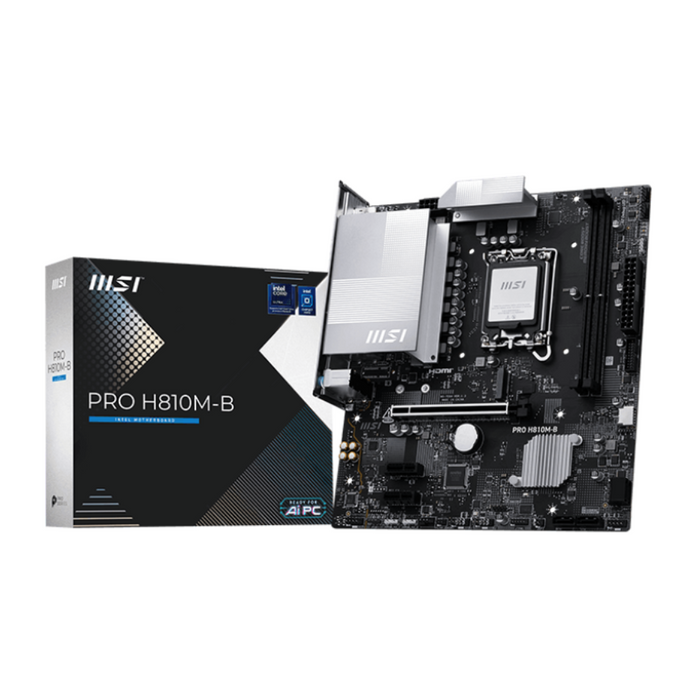

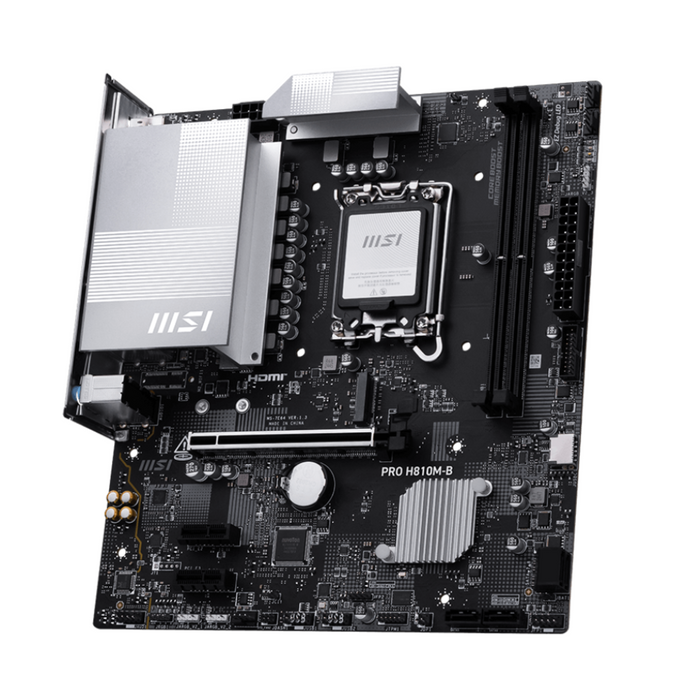

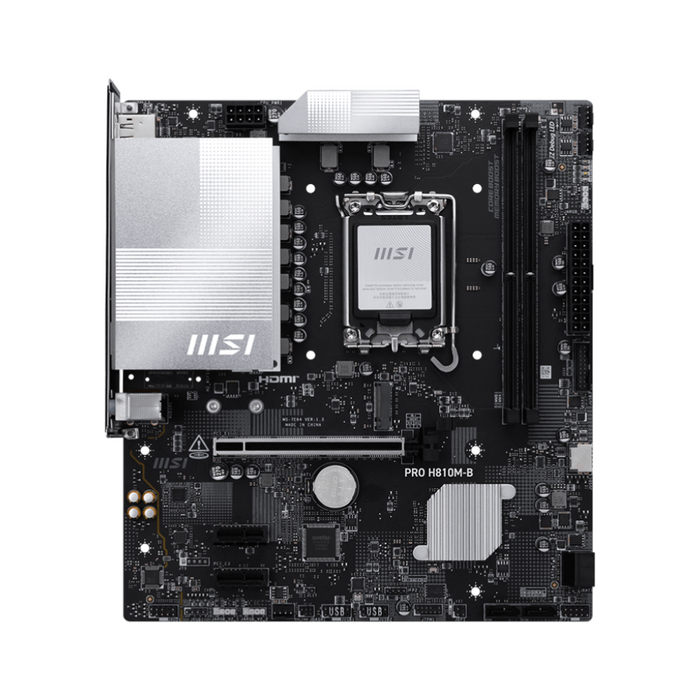

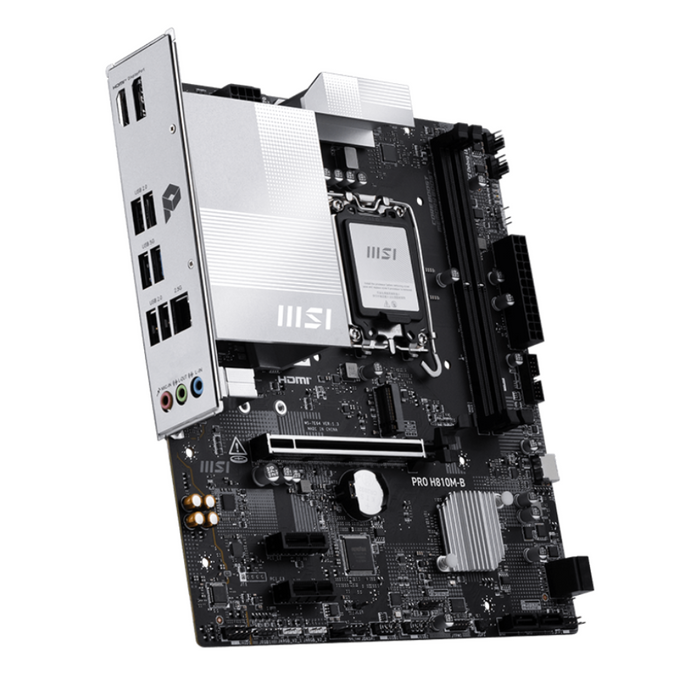

MSI Motherboard PRO H810M-B

Specifications:

• Product Number: 7E64-001R


Processor

• Chipset: INTEL H810

• CPU: Supports Intel Core Ultra Processors (Series 2)

• LGA 1851

Memory

• 2x DDR5 UDIMM
• Maximum Memory Capacity 128GB

• Memory Support DDR5 6400 - 4800 (JEDEC) MT/s
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6400 MT/s
  • 1DPC 2R Max speed up to 6400 MT/s
• Supports Intel POR Speed and JEDEC Speed

• Supports Intel XMP 3.0

• Supports Dual-Controller Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM

Onboard Graphics

• 1x HDMI
• Support HDMITM 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Slot

• 1x PCI-E x16 slot

• 2x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

Audio

• Realtek ALC897 Codec

• 7.1-Channel High Definition Audio

Storage

• 1x M.2

• M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G

USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 1x USB 10Gbps Type C (Front)

LAN

• Realtek 8125 2.5Gbps LAN

Internal I/O

• 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 2x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Tuning Controller connector(JDASH)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

LED Feature

• 4x EZ Debug LED

• 1x EZ Memory Detection LED

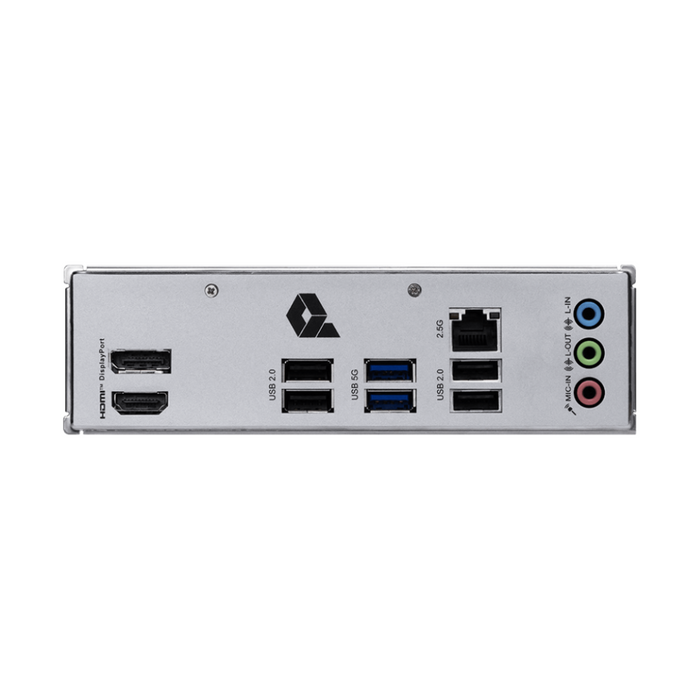

Back Panel Ports

• DisplayPort

• USB 2.0

• USB 5Gbps Type-A

• 2.5G LAN
• Audio Connectors

• HDMI

• USB 2.0

Operating System

• Support for Windows 11 64-bit

PCB Info

• mATX

• 220mm x 243.84mm
