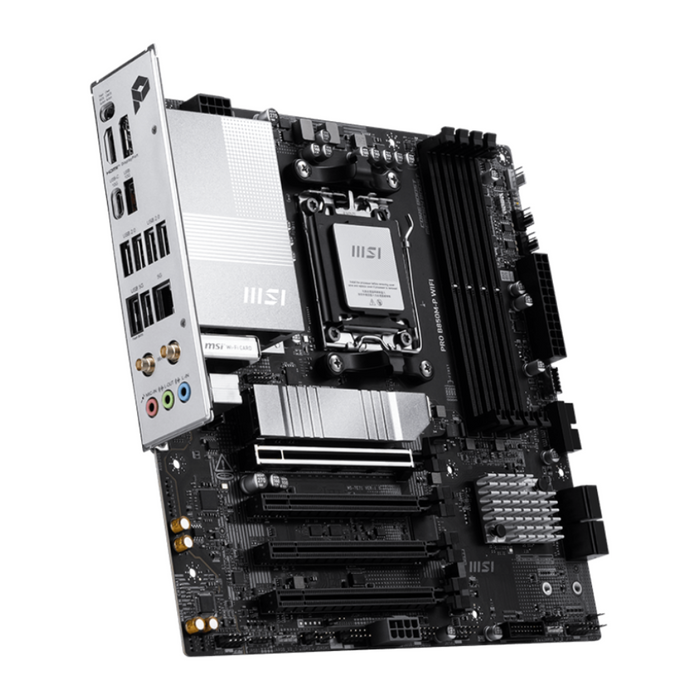

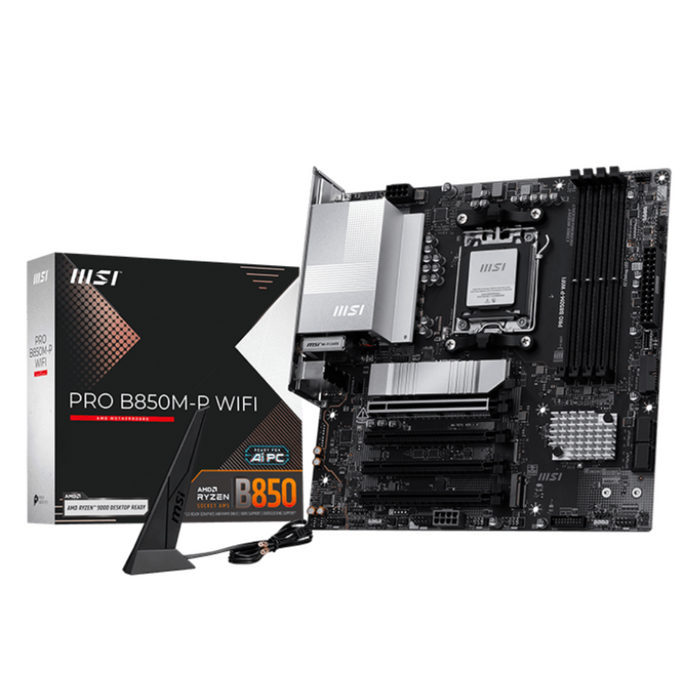

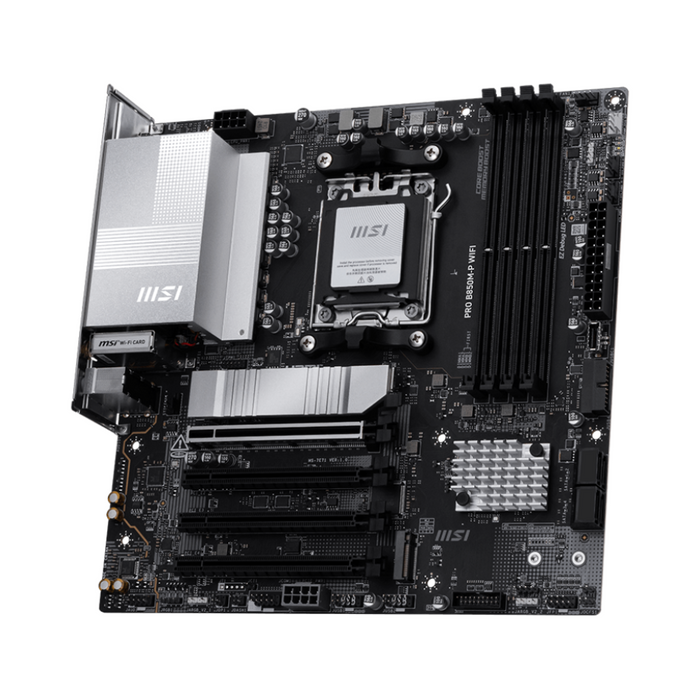

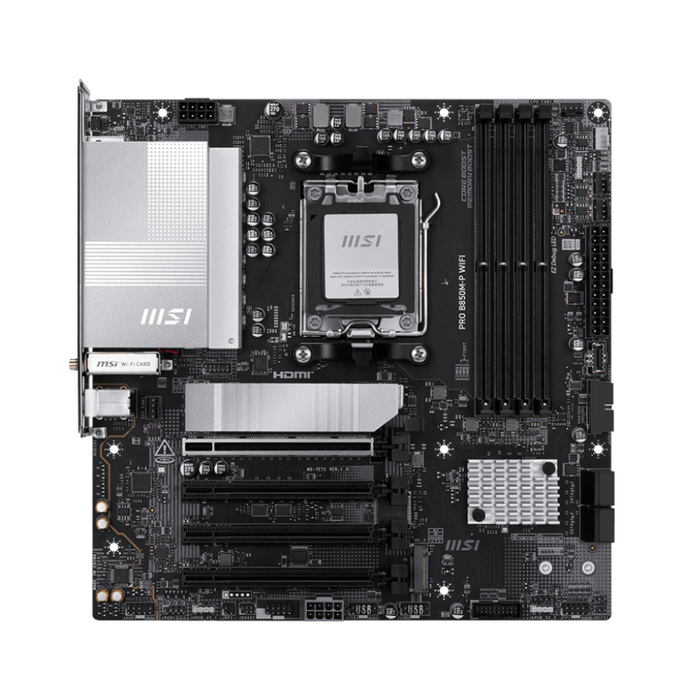

MSI Motherboard PRO B850M-P WiFi

Specifications:

• Product Number: 7E71-001R


Processor

• Chipset: AMD B850
• CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

• Socket: AM5


Memory

• 4x DDR5 UDIMM
• Maximum Memory Capacity 256GB

• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPOTM

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 1x HDMI
• Support HDMITM 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Slot

• Slot4x PCI-E x16 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)


Audio

• Realtek ALC897

• 7.1-Channel High Definition Audio

Storage

• 3x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices

• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices

• 4x SATA 6G
• M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
• M2_2 slot
  • Supports up to PCIe 4.0 x4
  • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)


RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• Supports RAID , RAID 1 and RAID 5 for M.2 NVMe storage devices


USB

• 4x USB 2.0 (Rear)
• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 4x USB 5Gbps Type A (Front)

• 1x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

• 1x USB 10Gbps Type C (Front)

LAN

• LAN: Realtek 8126VB 5G LAN

Wireless LAN & Bluetooth

• Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4**, MLO, 4KQAM

Internal I/O

• 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x Power Connector(PCIE_PWR 8pin)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 3x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Com Port (JCOM)

• 1x Tuning Controller connector(JDASH)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

LED Feature

• 4x EZ Debug LED

• 1x EZ Memory Detection LED

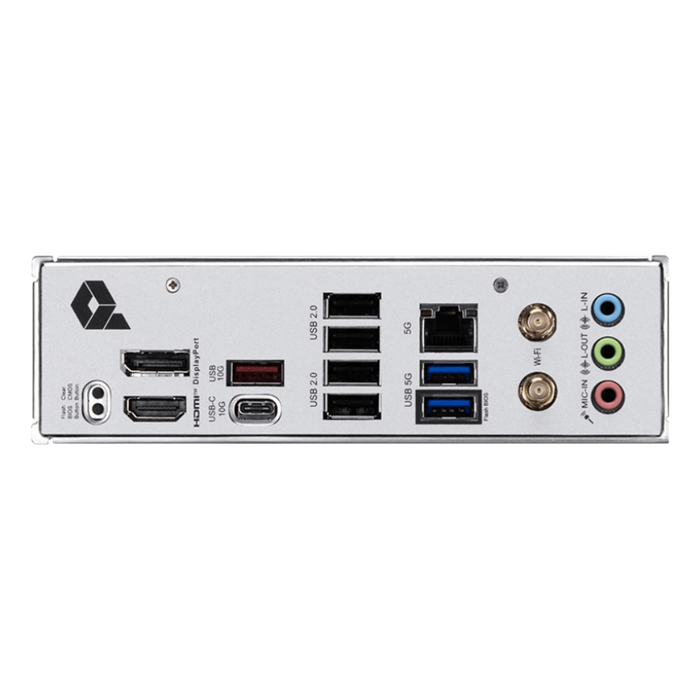

Back Panel Ports

• Clear CMOS Button

• DisplayPort

• USB 10Gbps Type-A

• USB 2.0

• 5G LAN

• Wi-Fi / Bluetooth

• Audio connectors

• Flash BIOS Button

• HDMI

• USB 10Gbps Type-C

• USB 5Gbps Type-A

Operating System

• Support for Windows 11 64-bit

PCB Info

• mATX

• 243.84mm x 243.84mm
