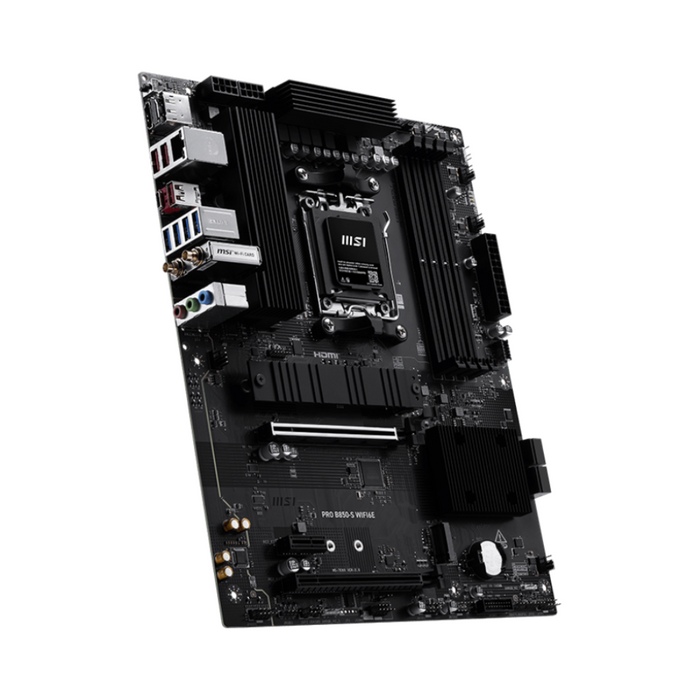

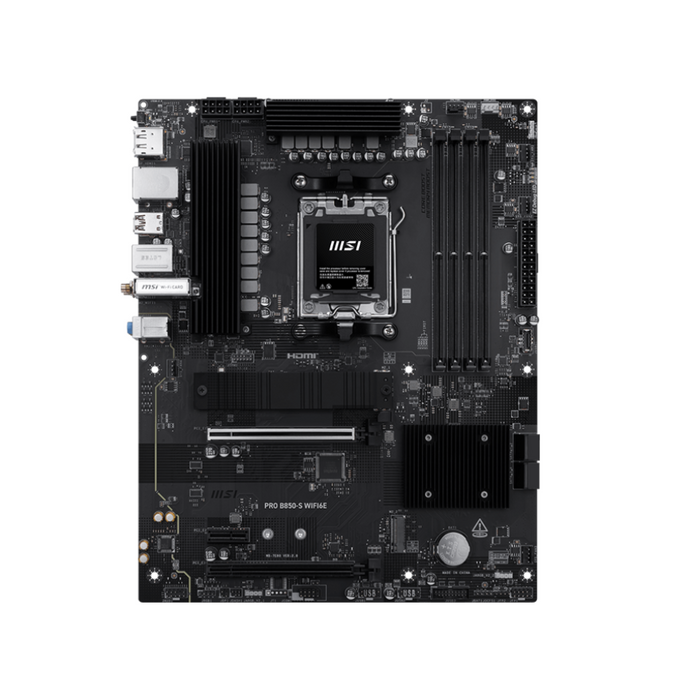

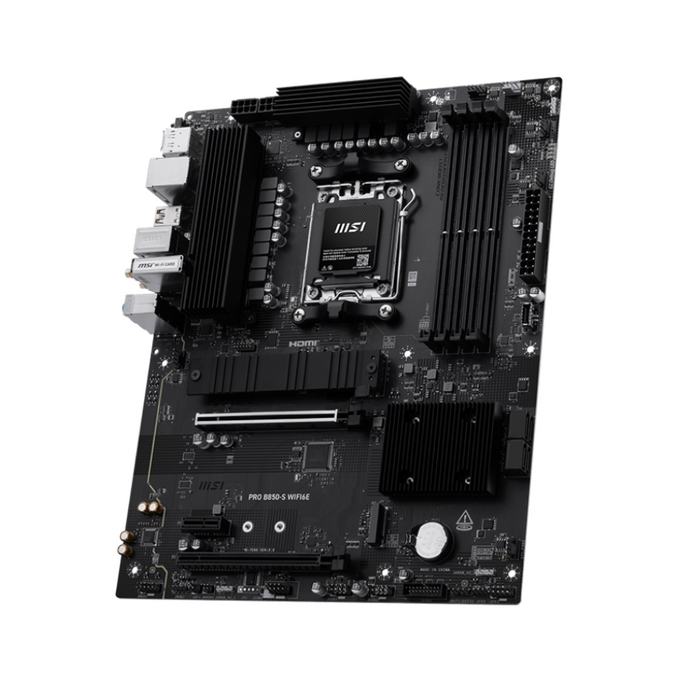

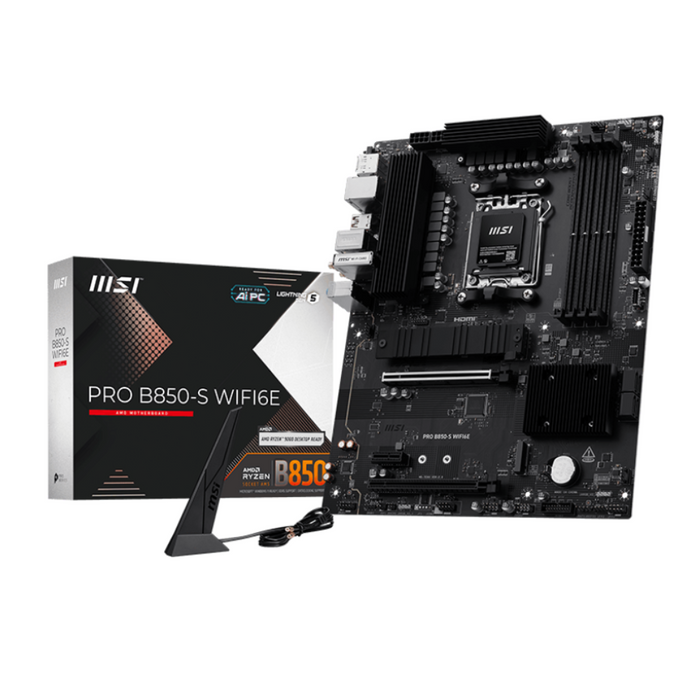

MSI Motherboard PRO B850-S WiFi6E

Specifications:

• Product Number: 7E80-002R


Processor

• Chipset: AMD B850
• CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

• Socket: AM5


Memory

• 4x DDR5 UDIMM
• Maximum Memory Capacity 256GB

• Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPO

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 1x HDMI
• Support HDMITM 2.1, maximum resolution of 4K 60Hz
• 1x DisplayPort

• Support DisplayPort 1.4, maximum resolution of 4K 60Hz

Slot

• 2x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 slot
  • Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

• Realtek ALC897

• 7.1-Channel High Definition Audio

Storage

• 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

• M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G
• M2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
• M2_2 slot
  • Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
  • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors)

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

• 4x USB 2.0 (Front)

• 4x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 3x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

• 1x USB 10Gbps Type C (Front)

LAN

• Realtek 8125 2.5G LAN

Internal I/O:

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 4x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Com Port (JCOM)

• 1x Tuning Controller connector(JDASH)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

LED Feature

• 4x EZ Debug LED

• 1x EZ Memory Detection LED

Wireless LAN and Bluetooth

• Wi-Fi 6E

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.4Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth 5.3, FIPS, FISMA

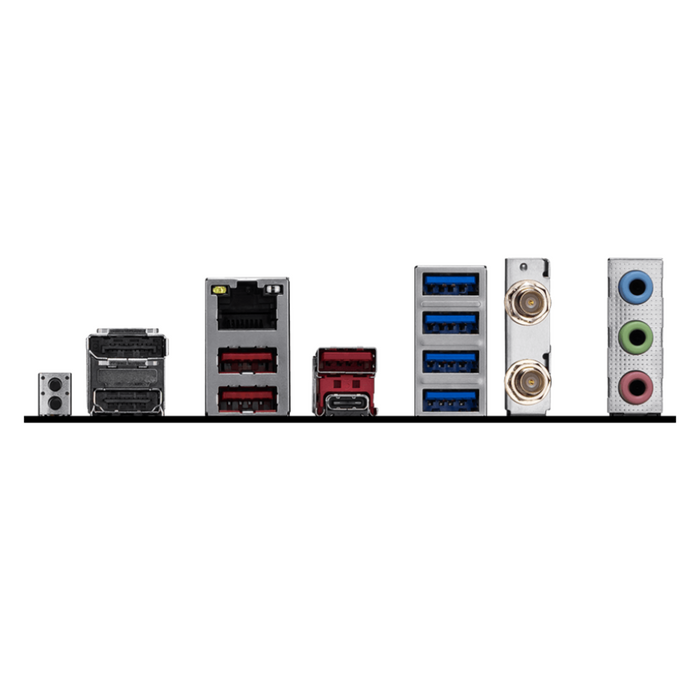

Back Panel Ports

• Clear CMOS Button

• DisplayPort

• 2.5G LAN

• USB 10Gbps Type-A

• USB 5Gbps Type-A

• Wi-Fi / Bluetooth

• Audio Connectors

• Flash BIOS Button

• HDMI

• USB 10Gbps Type-A

• USB 10Gbps Type-C

Operating System

• Support for Windows 11 64-bit

PCB Info

• ATX

• 243.84mm x 304.8mm
