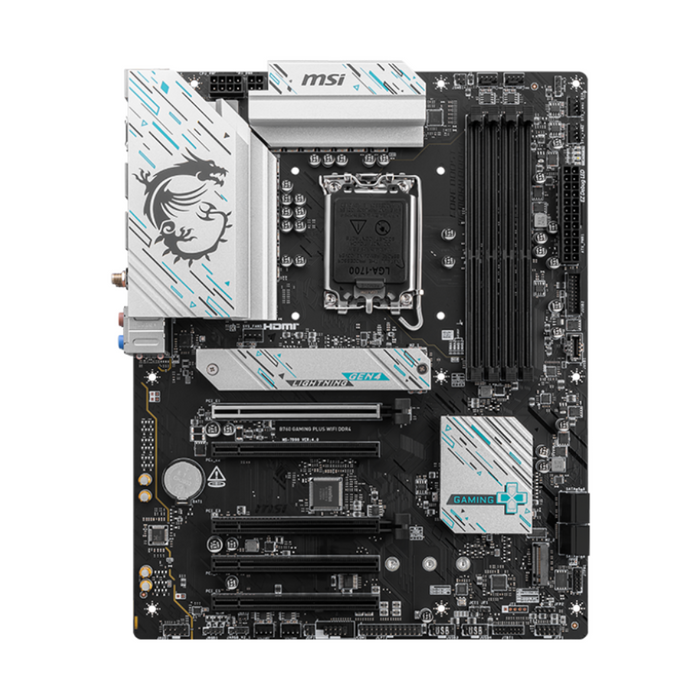

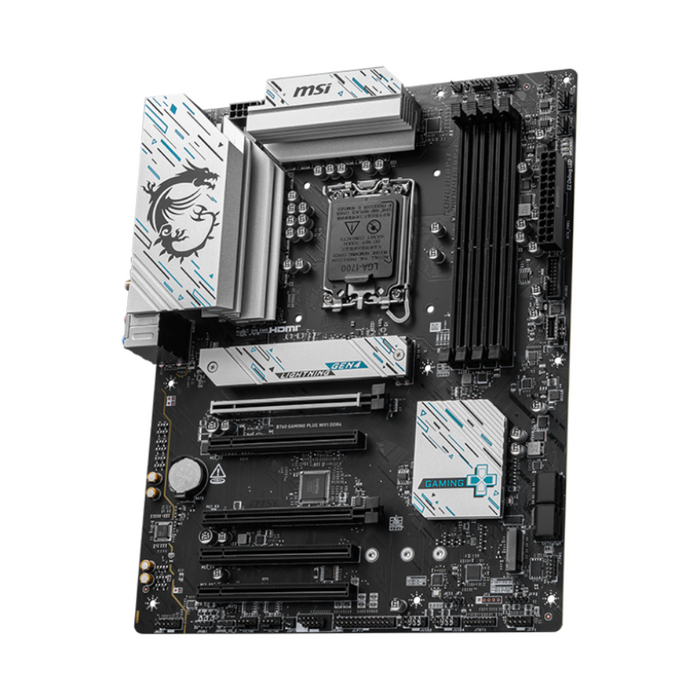

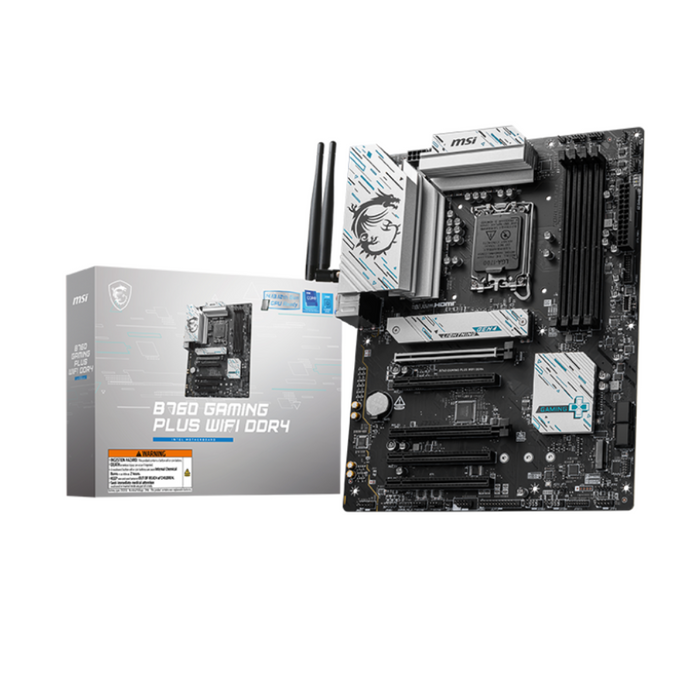

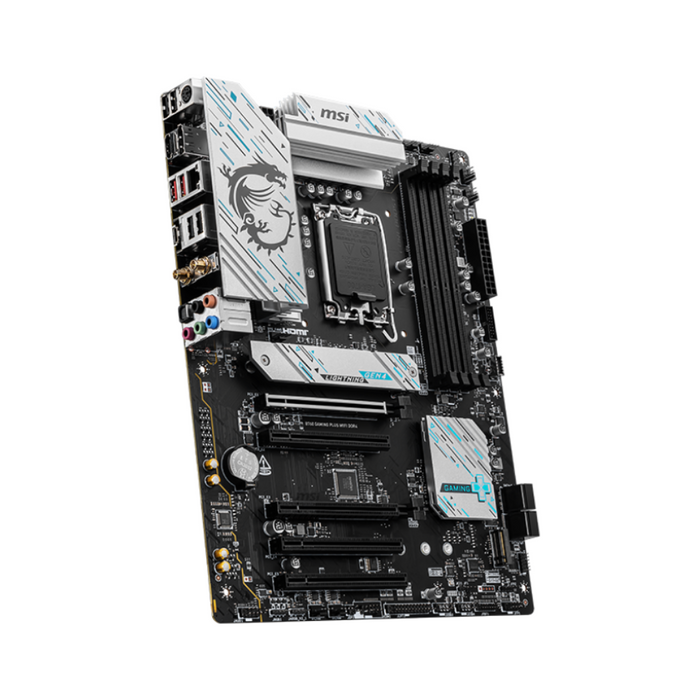

MSI Motherboard B760 Gaming Plus WiFi D4

Specifications:

• Product Number: 7D98-043R


Chipset

• INTEL B760

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

• LGA 1700

Memory

• 4x DDR4, Maximum Memory Capacity 128GB
• Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/
  • 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/
  • 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/
  • 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)

• Max. overclocking frequency:

  • 1DPC 1R Max speed up to 5333+ MHz

  • 1DPC 2R Max speed up to 4800+ MHz

  • 2DPC 1R Max speed up to 4400+ MHz

  • 2DPC 2R Max speed up to 4000+ MHz
• Supports Intel® XMP 3.0 OC

• Supports Dual-Controller Dual-Channel mode

• Supports non-ECC, un-buffered memory

Onboard Graphics

• 1x HDMI™

• Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz

• 1x DisplayPort

• Support DP 1.4, maximum resolution of 4K 60Hz

Slot

• 5x PCI-E x16 slot

• PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

Storage

• 2x M.2

• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 4x SATA 6G

Raid

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

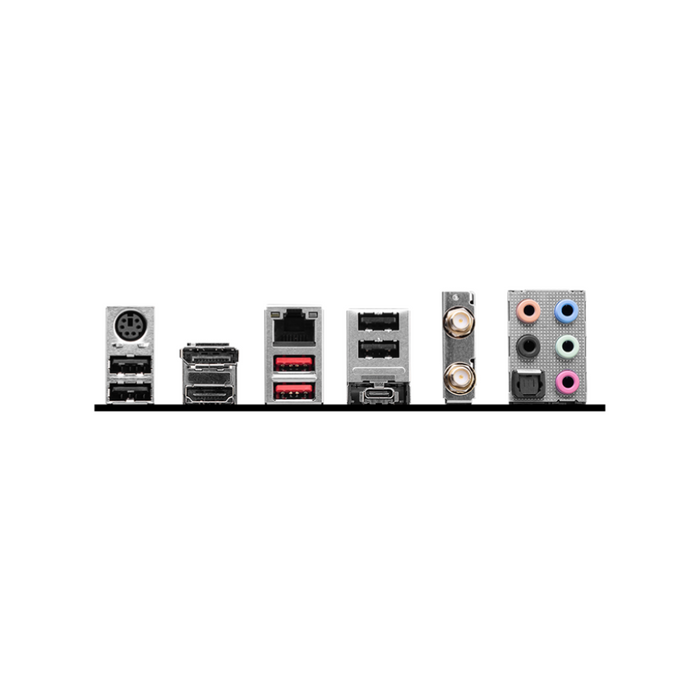

USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Front)

• 1x USB 5Gbps Type C (Front)

• 2x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

LAN

• Realtek® RTL8125 2.5Gbps LAN

Audio

• Realtek® ALC897 Codec

• 7.1-Channel High Definition Audio

• Supports S/PDIF output

Internal I/O

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 5x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Printer Port (JLPT)

• 1x Com Port (JCOM)

• 2x Addressable V2 RGB LED connector (JARGB_V2)
• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 5Gbps Type C ports

LED Feature

• 4x EZ Debug LED

Operating System

• Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

• ATX 243.84mmx304.8mm
