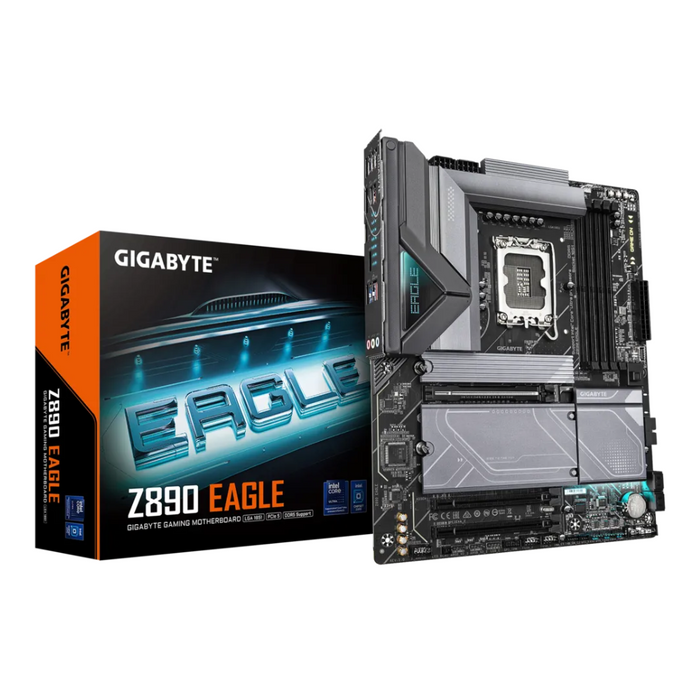

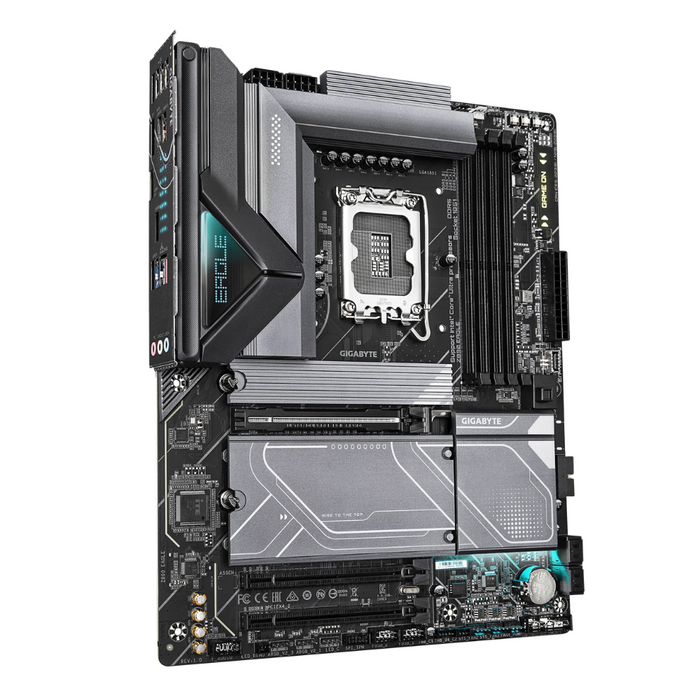

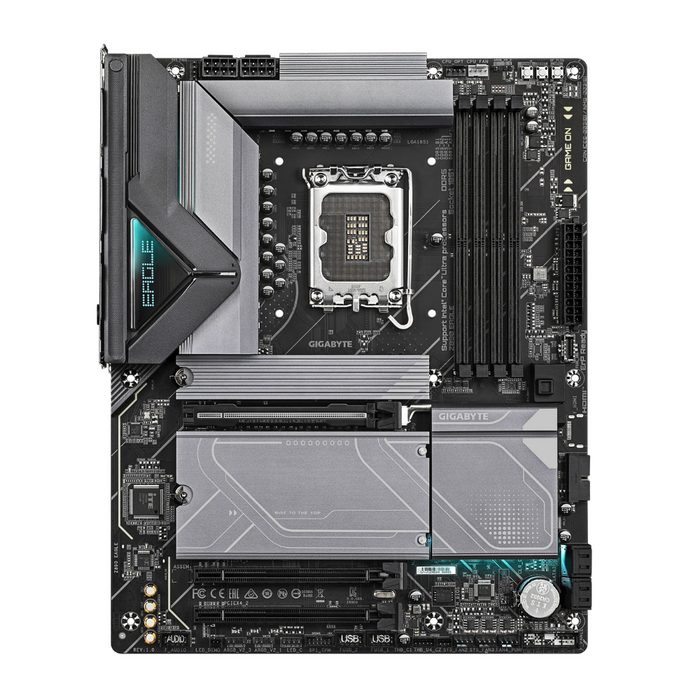

Gigabyte Motherboard Z890 EAGLE

Specifications:

• Product Number: Z890 EAGLE


CPU

• LGA1851 socket: Support for Intel  Core Ultra Processors

• L3 cache varies with CPU
• Chipset: Intel Z890 Express Chipset


Memory

• Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) /
  • 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) /
  • 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) /
  • 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules.

Onboard Graphics

• Integrated Graphics Processor-Intel HD Graphics support:

  • 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz


Audio

• Realtek Audio CODEC

• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

• CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• Chipset:
  • 2 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4


Storage Interface

• CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0

• PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280

• PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

• Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
  • 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• CPU:

  • 1 x USB4 USB Type-C port on the back panel
• Chipset:

  • 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port (Note)
• 1 x power button
• 1 x reset button
• 1 x Q-Flash Plus button
• 1 x reset jumper
• 1 x Clear CMOS jumper

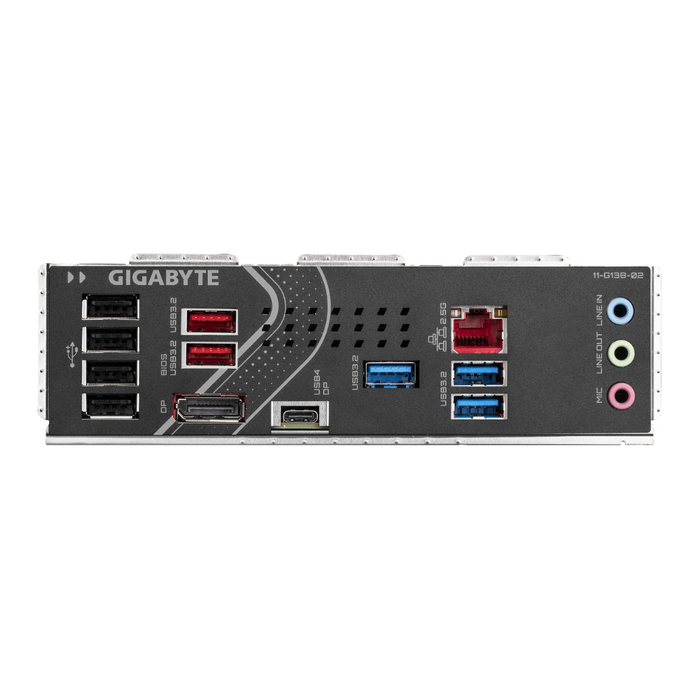

Back Panel Connectors

• 1 x USB4 USB Type-C port (DisplayPort (Note))

• 2 x USB 3.2 Gen 2 Type-A ports (red)

• 3 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x DisplayPort (Note)

• 2 x antenna connectors (2T2R)

• 1 x RJ-45 port

• 3 x audio jacks

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• I/O Controller: iTE I/O Controller Chip

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash

• Support for Q-Flash Plus

• Support for Smart Backup
• Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
• Operating System: Support for Windows 11 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
