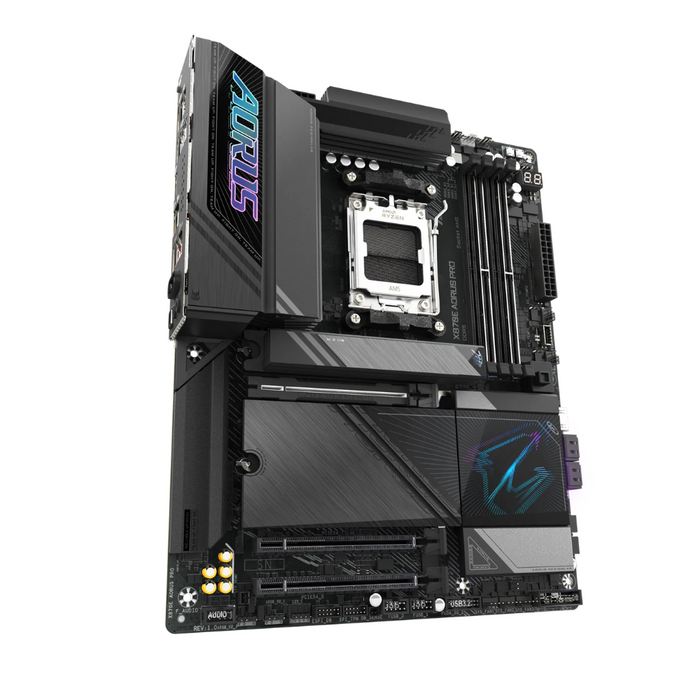

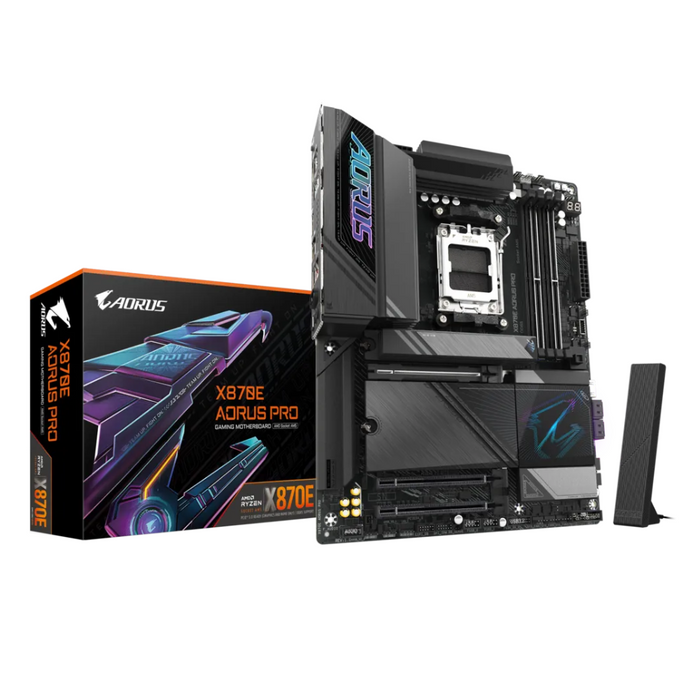

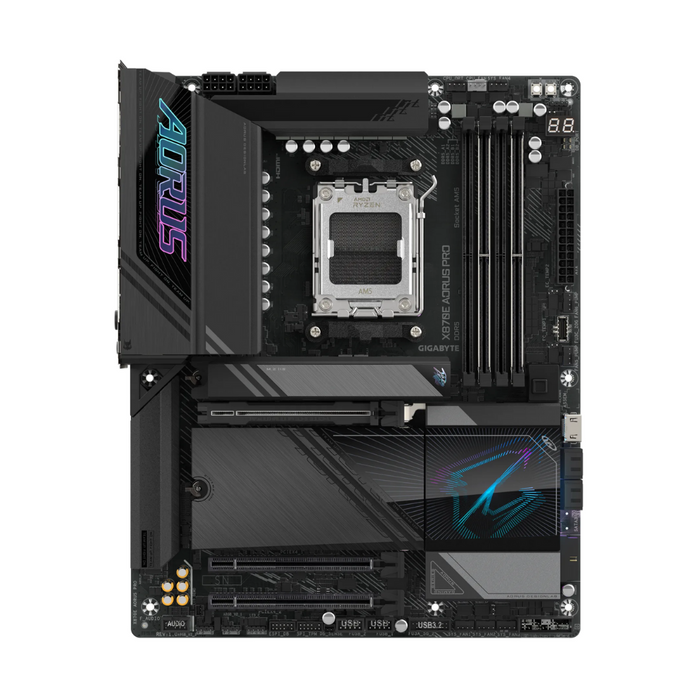

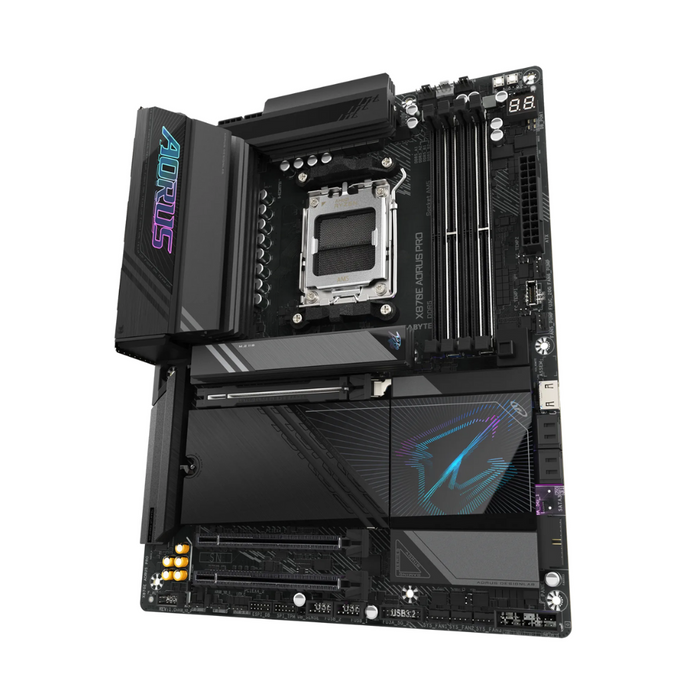

Gigabyte Motherboard X870E AORUS PRO

Specifications:

• Product Number: X870E AORUS PRO

CPU

• AMD Socket AM5, support for:
  • AMD Ryzen 9000 Series Processors/
  • AMD Ryzen 8000 Series Processors/
  • AMD Ryzen 7000 Series Processors

• Chipset: AMD X870E

Memory

• Support for DDR5
  • 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) /
  • 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /
  • 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules


Onboard Graphics

• Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:
  • 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

• Integrated Graphics Processor with AMD Radeon Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  • 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz


Audio

• Realtek ALC1220 CODEC

• High Definition Audio 2/4/5.1/7.1-channel

• Support for S/PDIF Out


LAN

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Qualcomm Wi-Fi 7 QCNCM865
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11be 320MHz wireless standard

Expansion Slots

• 1x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

• When the M2B_CPU orM2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

• Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  • AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors.
• 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU + ASMedia USB4 controller:
  • 2 x USB4 USB Type-C ports on the back panel
• CPU:
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• Chipset:
  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  • 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connectors

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 4 x system fan headers

• 2 x system fan/water cooling pump headers

• 3 x addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

• 4 x SATA 6Gb/s connectors

• 4 x M.2 Socket 3 connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support

• 2 x USB 3.2 Gen 1 headers

• 2 x USB 2.0/1.1 headers

• 1 x noise detection header

• 1 x HDMI port (Note)

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-
• TPM2.0 SPI V2 module only)

• 1 x power button

• 1 x reset button

• 2 x temperature sensor headers

• 1 x reset jumper

• 1 x Clear CMOS jumper

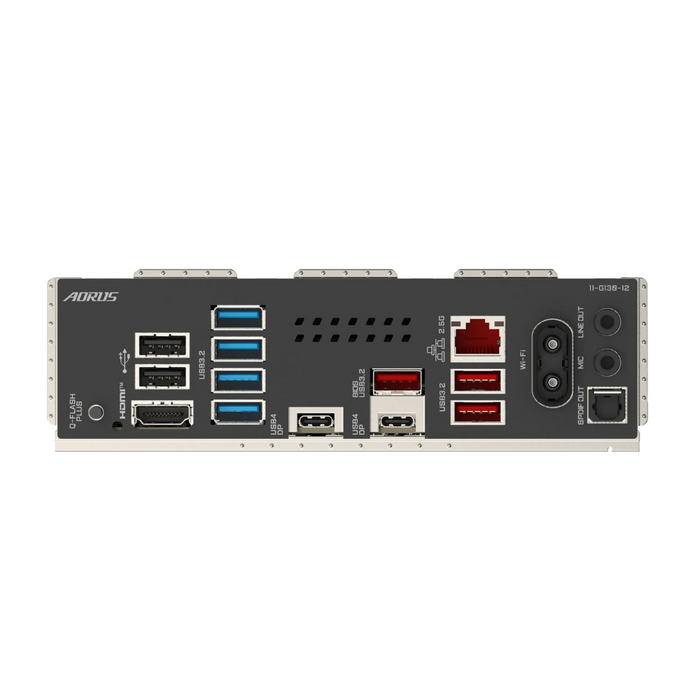

Back Panel Connectors

• 1 x Q-Flash Plus button
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port (Note)
• 4 x USB 3.2 Gen 1 ports
• 2 x USB4 USB Type-C port (DisplayPort (Note))
• 3 x USB 3.2 Gen 2 Type-A ports (red)
• 1 x RJ-45 port
• 2 x antenna connectors (2T2R)
• 1 x optical S/PDIF Out connector
• 2 x audio jacks
• I/O Controller: iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

• Noise detection

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup
• Bundled Software
  • Norton Internet Security (OEM version)
  • LAN bandwidth management software
• Operating System: Support for Windows 11 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
