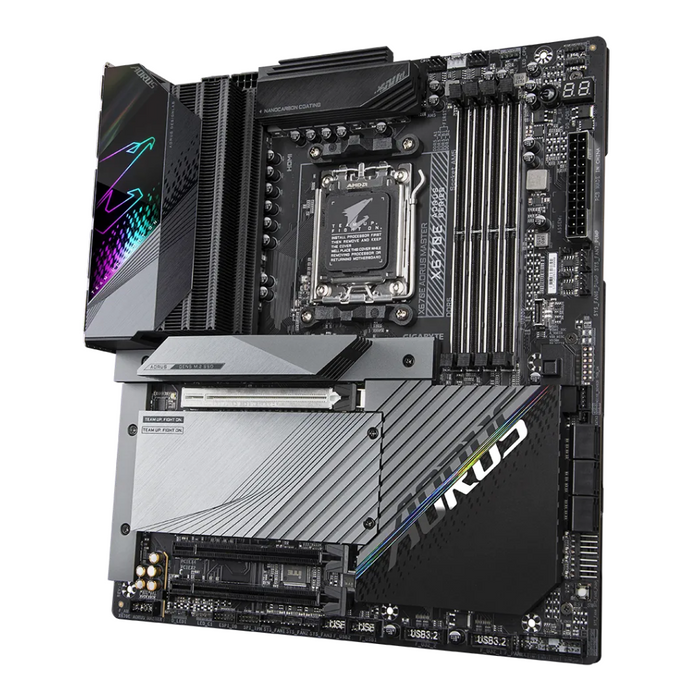

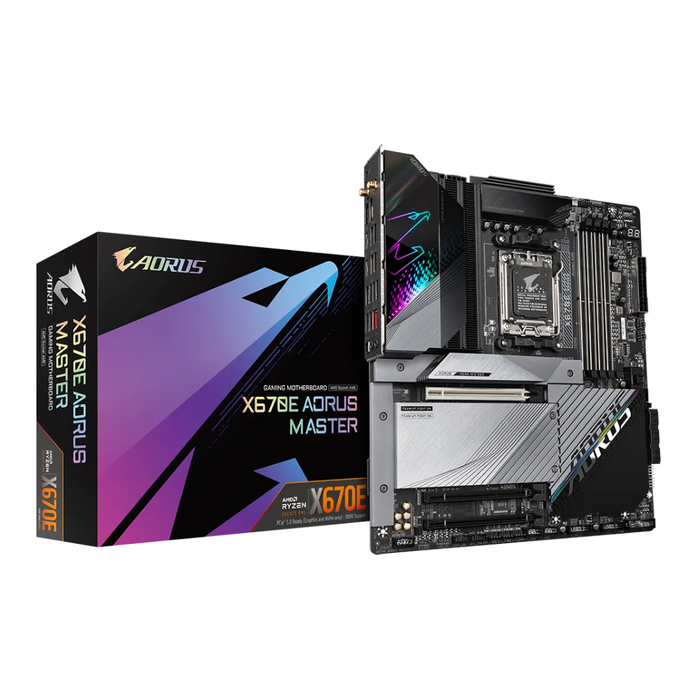

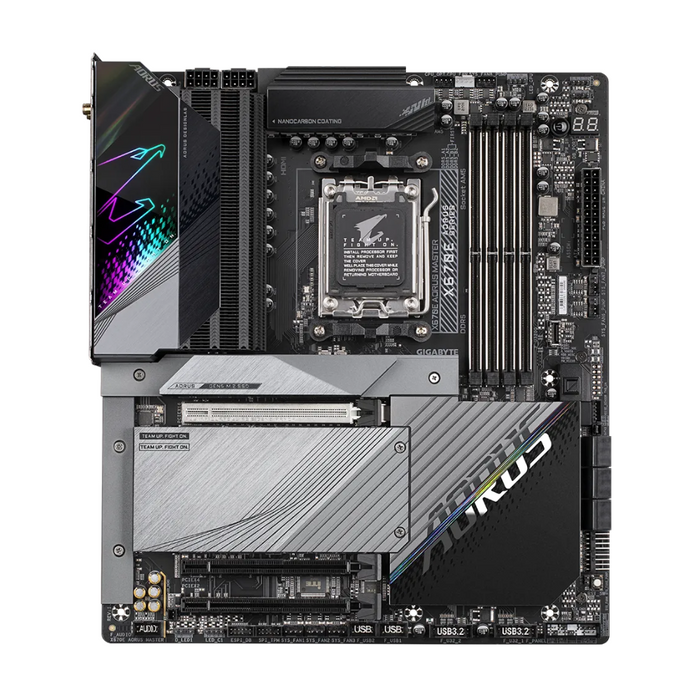

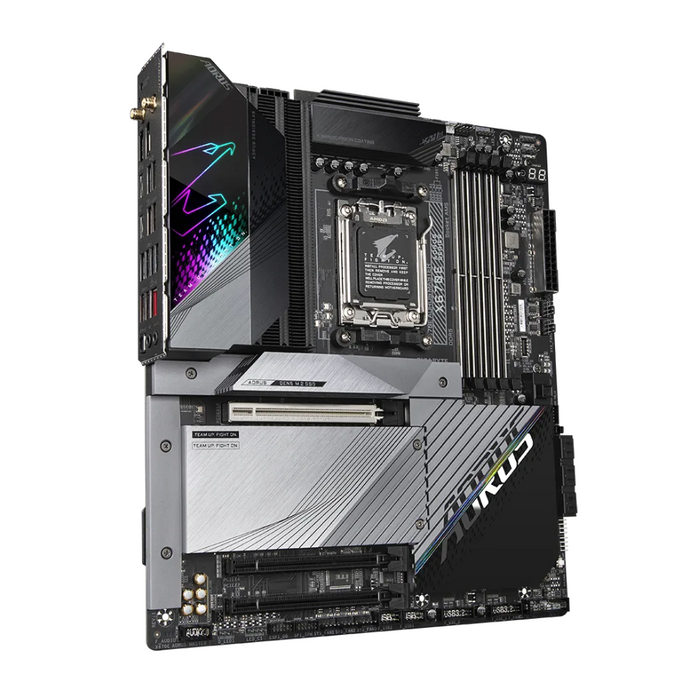

Gigabyte Motherboard X670E AORUS MASTER

• Product Number: X670E AORUS MASTER

CPU

• AMD Socket AM5, support for : AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
• Chipset: AMD X670

Memory

• Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory module

Onboard Graphics

• Integrated Graphics Processor:

  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

  • 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


Audio

• Realtek ALC1220-VB CODEC
• Support for DTS:X Ultra

• High Definition Audio

• 2/4/5.1/7.1-channel output

• Support for S/PDIF Out

LAN

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

• Realtek Wi-Fi 7 RTL8922AE
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 80MHz wireless standard

Expansion Slots

• Intel Wi-Fi 6E AX210 (PCB rev. 1.0)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  • BLUETOOTH 5.3

  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

• AMD Wi-Fi 6E RZ616 (MT7922A22M) (PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  • BLUETOOTH 5.2

  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate


Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  • AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 5.0 x16 mode

  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

• Chipset:

  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

• 2 x M.2 connector (M2C_SB, M2D_SB), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
• 6 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• Chipset:
  • 2 x USB Type-C port with USB 3.2 Gen 2x2 support
  • 2 x USB 3.2 Gen 2 Type-A
  • 4 x USB 3.2 Gen 1 ports available through the internal USB headers

  • 4 x USB 2.0/1.1 ports available through the internal USB headers

• Chipset+USB 3.2 Gen 1 Hub:

  • 4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x water cooling CPU fan header

• 4 x system fan headers

• 4 x system fan/water cooling pump headers

• 2 x addressable LED strip headers

• 2 x RGB LED strip headers

• 1 x CPU cooler LED strip/RGB LED strip header

• 4 x M.2 Socket 3 connectors

• 6 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

• 2 x USB 3.2 Gen 1 headers

• 2 x USB 2.0/1.1 headers

• 1 x noise detection header

• 1 x THB_U4 add-in card connector

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x power button

• 1 x reset button

• 1 x reset jumper

• 1 x Clear CMOS jumper

• 2 x temperature sensor headers

• Voltage Measurement Points

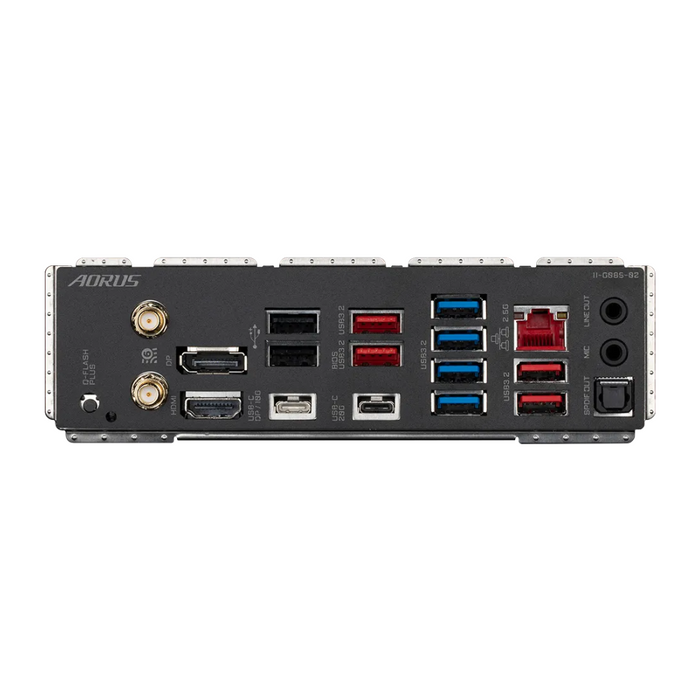

Back Panel Connectors

• 1 x Q-Flash Plus button

• 2 x SMA antenna connectors (2T2R)

• 1 x DisplayPort

• 1 x HDMI port

• 1 x USB Type-C port (DisplayPort), with USB 3.2 Gen 2 support

• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support

• 4 x USB 3.2 Gen 2 Type-A ports (red)

• 4 x USB 3.2 Gen 1 ports

• 2 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 1 x optical S/PDIF Out connector

• 2 x audio jacks

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control
• Noise detection

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash

• Support for Q-Flash Plus

• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• E-ATX Form Factor
• 30.5cm x 26.9cm
