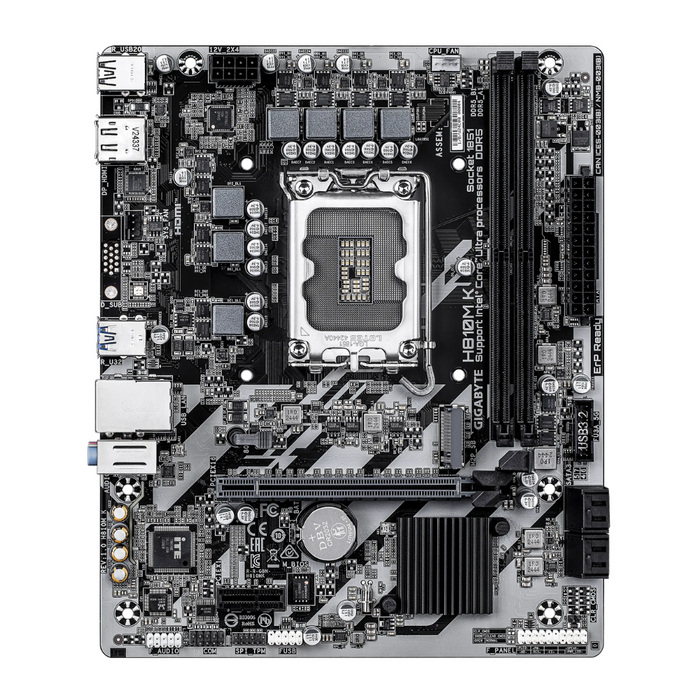

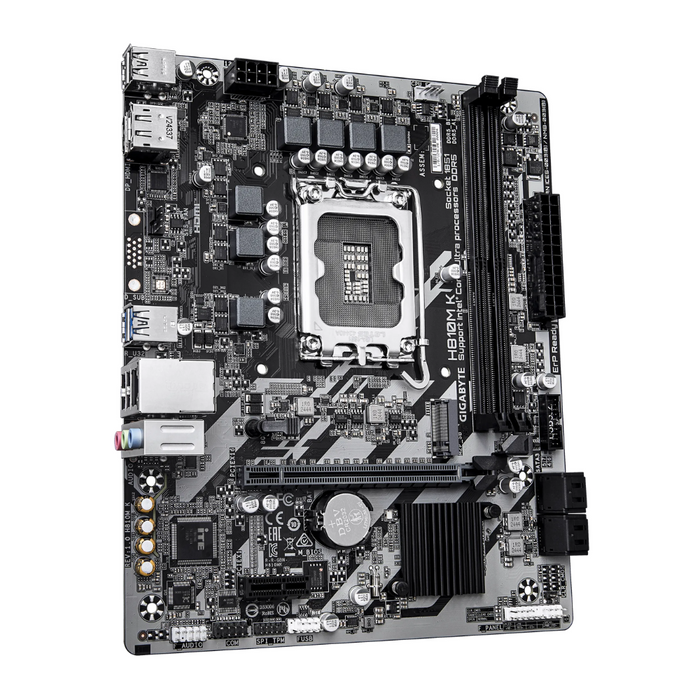

Gigabyte Motherboard H810M K

Specifications:

• Product Number: H810M K


CPU

• LGA1851 socket: Support for Intel Core Ultra Processors

• L3 cache varies with CPU
• Chipset: Intel H810 Express Chipset

Memory

• Support for DDR5 6400/5600 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor with AMD Radeon Graphics support:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel


LAN

• Realtek GbE LAN chip (1 Gbps/10 Mbps/100 Mbps)

Expansion Slots

• CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  • The PCIEX16 slot can only support a graphics card or an NVMe SSD.
• Chipset:
  • 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

• Chipset:
  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
  • 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

• Chipset:
  •  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header

• 1 x system fan header
• 1 x M.2 Socket 3 connector

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 1 x USB 2.0/1.1 header

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

• 1 x serial port header

• 1 x Clear CMOS jumper

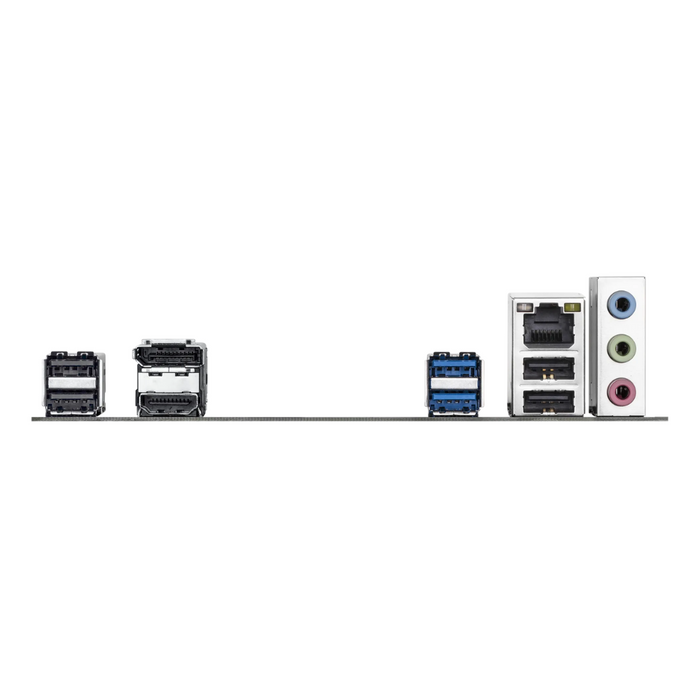

Back Panel Connectors

• 1 x HDMI port

• 1 x DisplayPorts

• 2 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks
• I/O Controller: iTE I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash

• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX
• Form Factor: 22.6cm x 18.5cm
