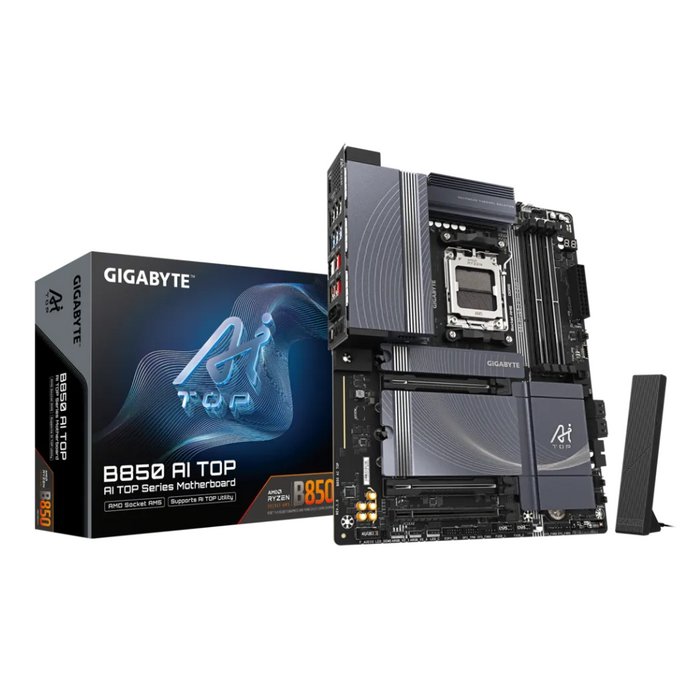

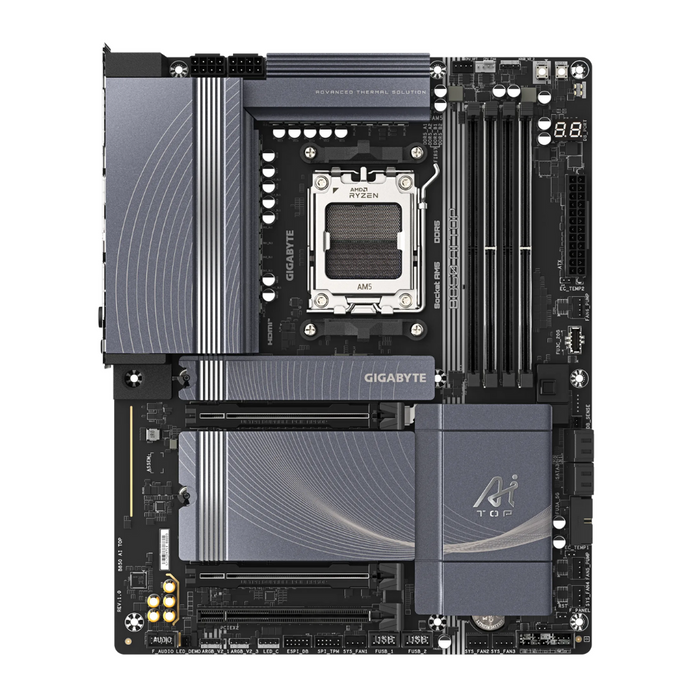

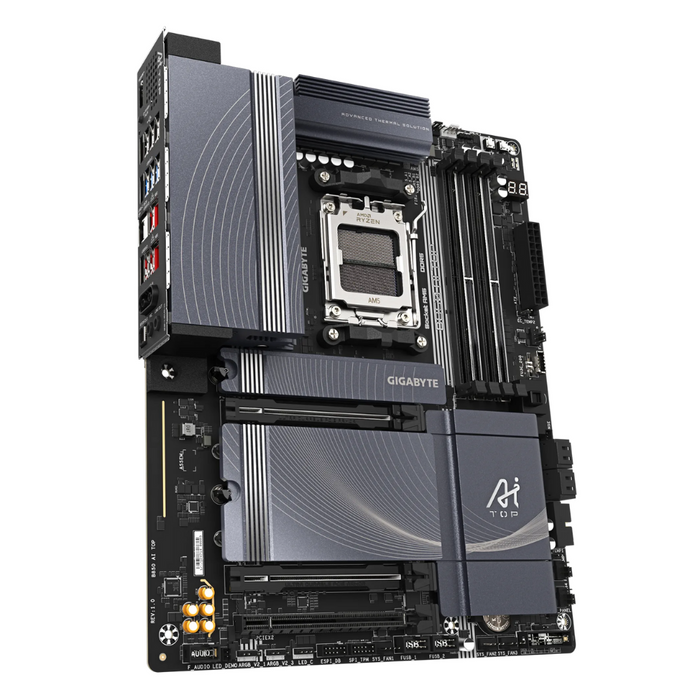

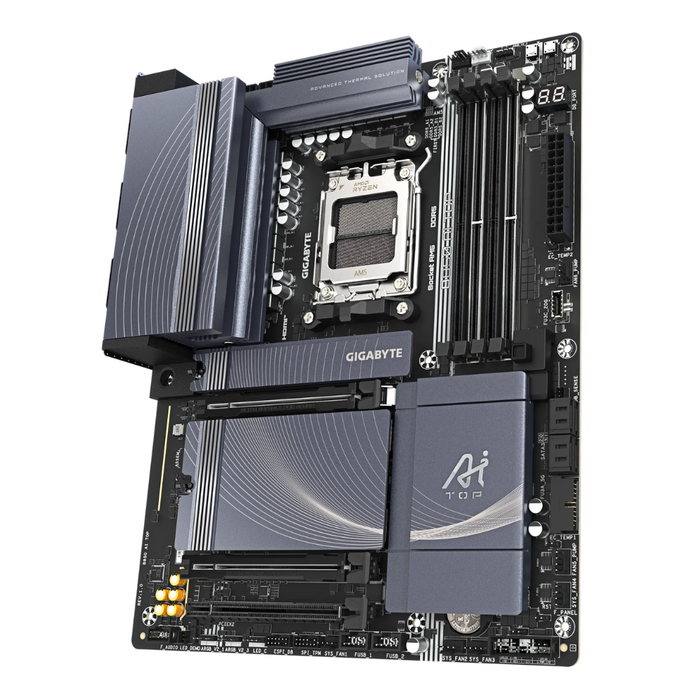

Gigabyte Motherboard B850 AI TOP

• Product Number: B850 AI TOP

CPU

• AMD Socket AM5, support for:

  • AMD Ryzen 9000 Series Processors/
  • AMD Ryzen 8000 Series Processors/

  • AMD Ryzen 7000 Series Processors

• Chipset: AMD B850

Memory

• Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor with AMD Radeon Graphics support:
  • 1 x USB Type-C port (Note) with DisplayPort video output, supporting a maximum resolution of 3840x2160@144 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio

• Realtek ALc1220 CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel

  • Support for S/PDIF Out

LAN

• 2 x Marvell AQtion AQC113C 10GbE LAN chips

• (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

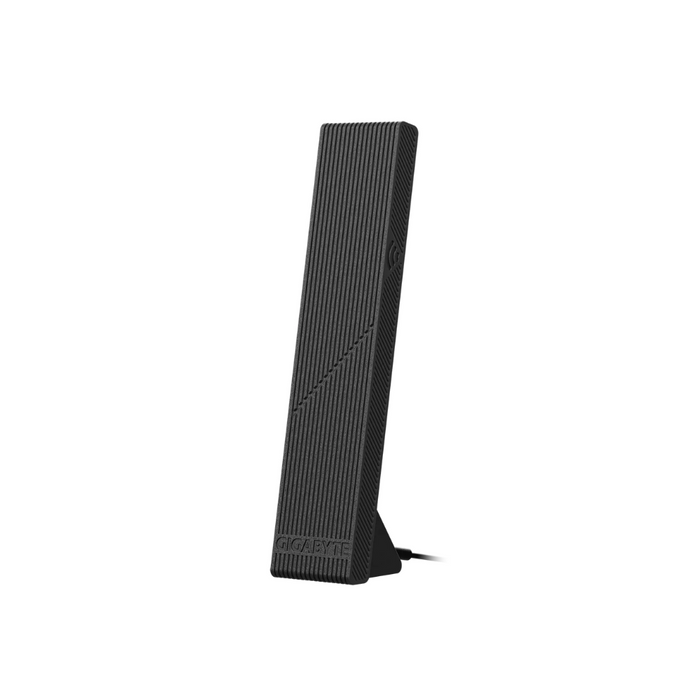

• Realtek Wi-Fi 7 RTL8922AE
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
  • AMD Ryzen 8000 Series-Phoenix 1, Processors support PCIe 4.0 x8 mode
  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

• 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode

• Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2)


Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

  • AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

  • AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
  • 3 x USB Type-A port on the back panel
  • 1 x USB Type-C ports (note) on the back panel
• CPU+USB 2.0 Hub:
  • 4 x USB 2.0/1.1 ports on the back panel
• Chipset:
  • 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header
  • 2 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  • 4 x USB 2.0/1.1 ports available through the internal USB headers

• Chipset+USB 3.2 Gen 1 Hub:
  • 4 x USB 3.2 Gen 1 ports on the back panel

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 2 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x CPU fan/water cooling pump header

• 4 x system fan headers

• 2 x system fan/water cooling pump header

• 3 x addressable RGB Gen2 LED strip headers

• 1 x RGB LED strip header

• 3 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB Type-C header, with USB 3.2 Gen 2x2 support

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC TPM2.0 SPI V2 module only)

• 1 x power button

• 1 x reset button

• 1 x reset jumper

• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

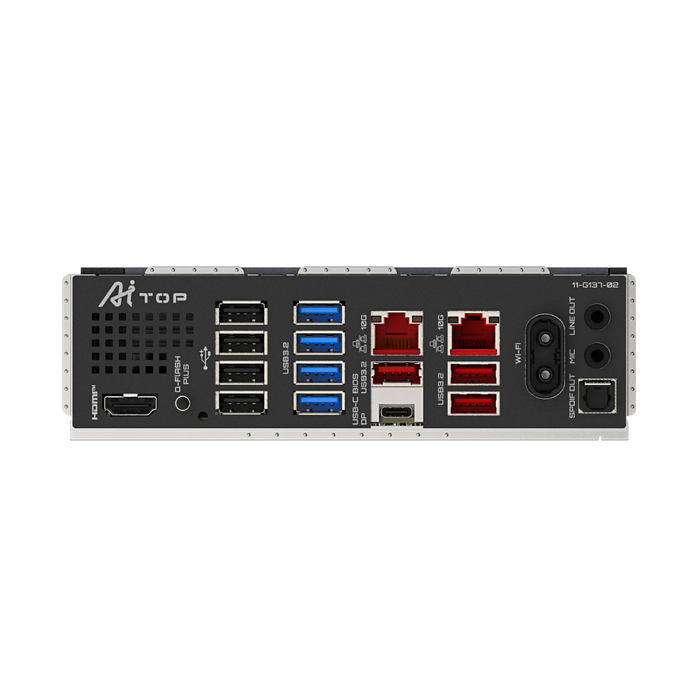

Back Panel Connectors

• 1 x Q-Flash Plus button

• 2 x SMA antenna connectors (2T2R)

• 1 x HDMI port (Note 1)

• 1 x USB Type-C port (Note 2) (DisplayPort (Note 1))

• 3 x USB 3.2 Gen 2 Type-A ports (red)

• 4 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 2 x RJ-45 ports

• 1 x optical S/PDIF Out connector

• 2 x audio jacks

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control

BIOS

• 1 x 256 Mbit flash

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash

• Support for Q-Flash Plus

• Support for Smart Backup

Bundled Software

• Norton Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

Form Factor

• ATX Form Factor
• 30.5cm x 24.4cm
