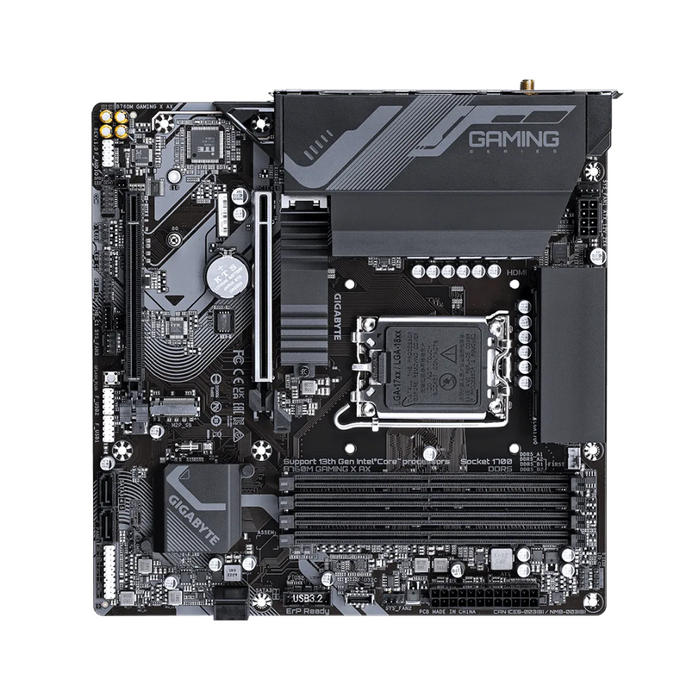

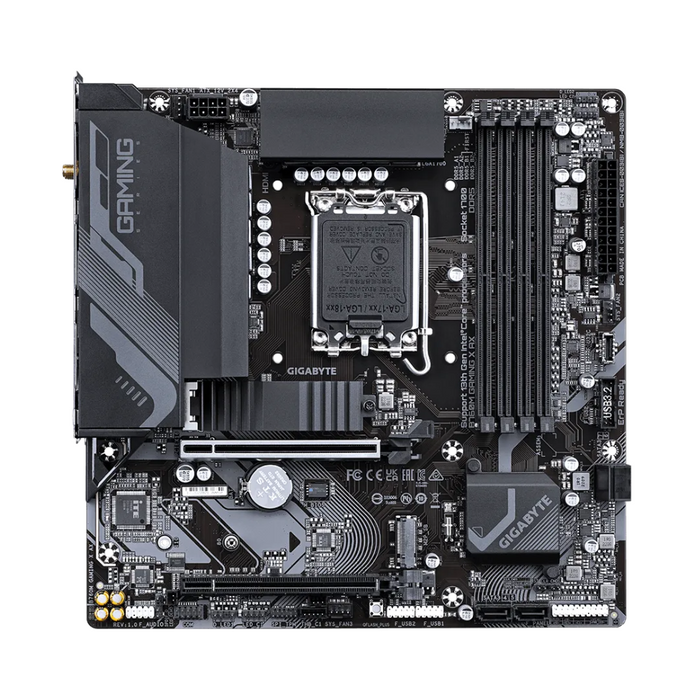

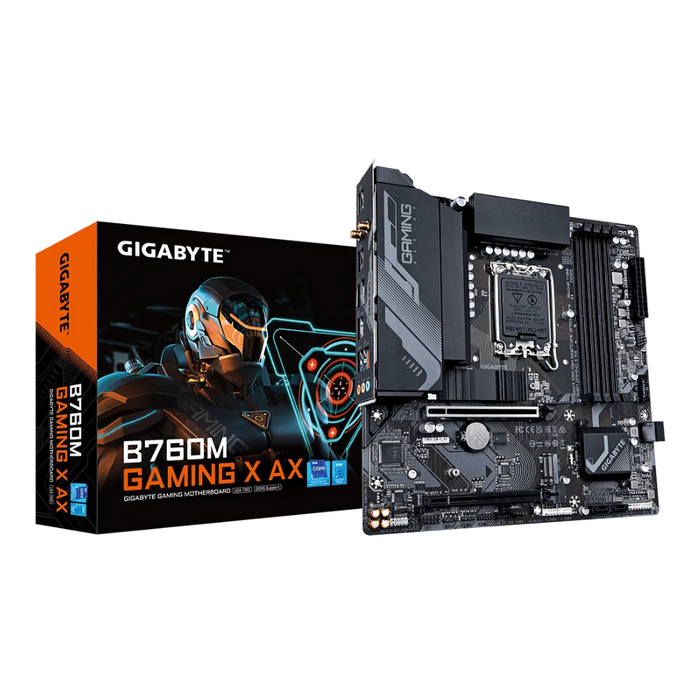

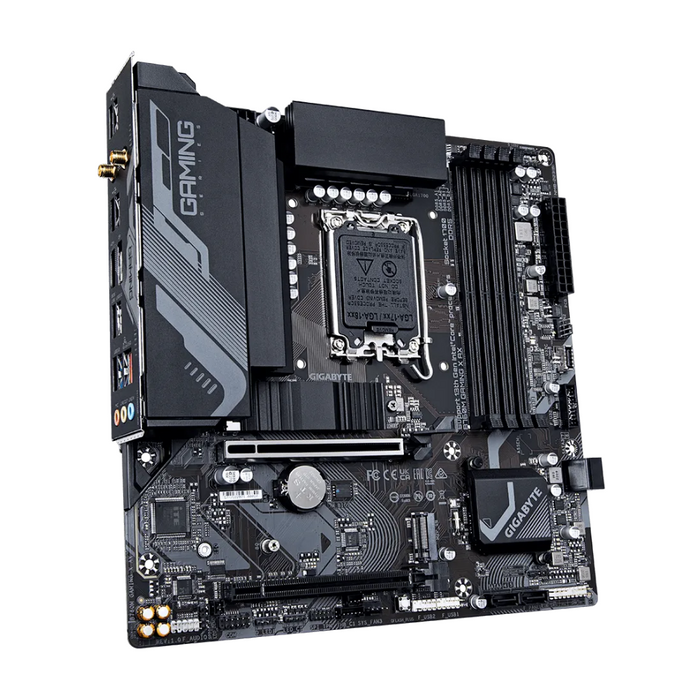

Gigabyte Motherboard B760M GAMING X AX

Specifications:

• Support for DDR5
• 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor-Intel HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

  • Support for HDMI 2.1 version and HDCP 2.3

  • Support native HDMI 2.1 TMDS compatible ports

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

  • Support for DisplayPort 1.2 version and HDCP 2.3


Audio

• Realtek Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

• Intel Wi-Fi 6E AX210 (PCB rev. 1.0)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  • BLUETOOTH 5.3

  • Support for 11ax 160MHz wireless standard

• Intel Wi-Fi 6E AX211 (PCB rev. 1.1)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  • BLUETOOTH 5.3

  • Support for 11ax 160MHz wireless standard

• Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)

  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  • BLUETOOTH 5.3

  • Support for 11ax 160MHz wireless standard

Expansion Slots

• CPU
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• Chipset
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4

Storage Interface:

• CPU

  • 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

• Chipset:

  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

  • 4 x SATA 6Gb/s connectors

USB

• Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
  • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  • 1 x USB 2.0/1.1 port on the back panel
• Chipset+2 USB 2.0 Hubs:
  • 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 3 x system fan headers

• 1 x addressable LED strip header

• 1 x RGB LED strip header

• 2 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• 1 x S/PDIF Out header

• 1 x Q-Flash Plus button

• 1 x reset jumper

• 1 x Clear CMOS jumper

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port, with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller

•  iTE I/O Controller Chip

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control


• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

• Support for GIGABYTE Control Center (GCC)

• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton Internet Security (OEM version)

• LAN bandwidth management software

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX
• 24.4cm x 24.4cm
