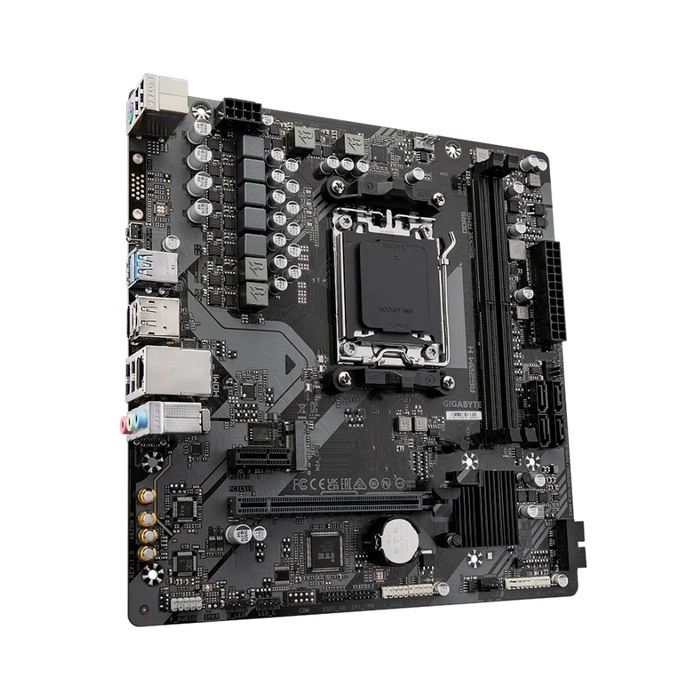

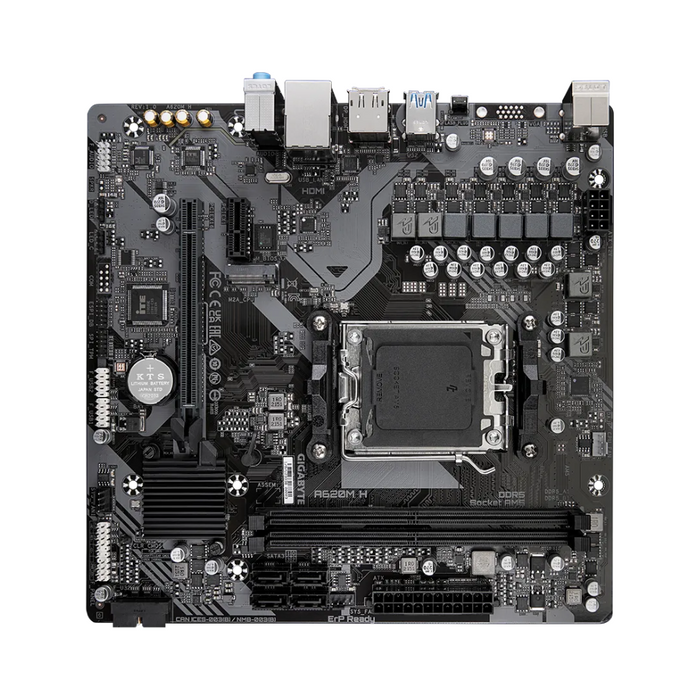

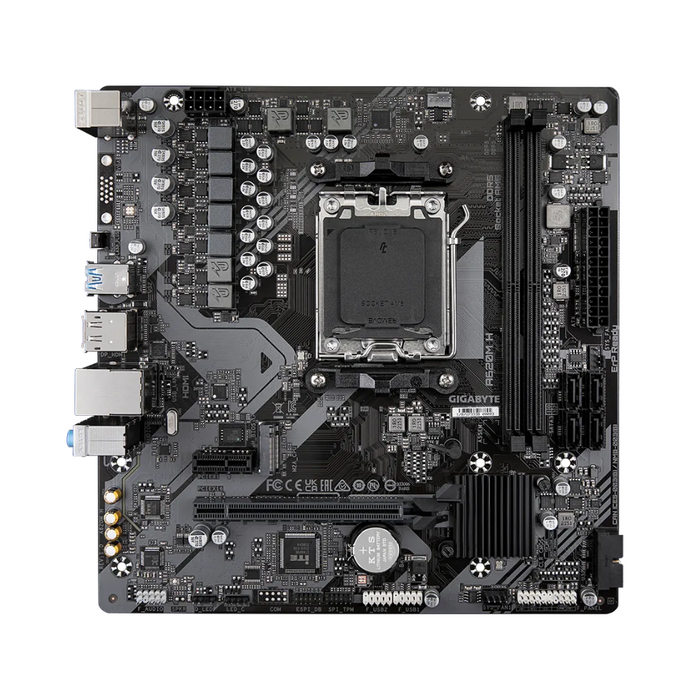

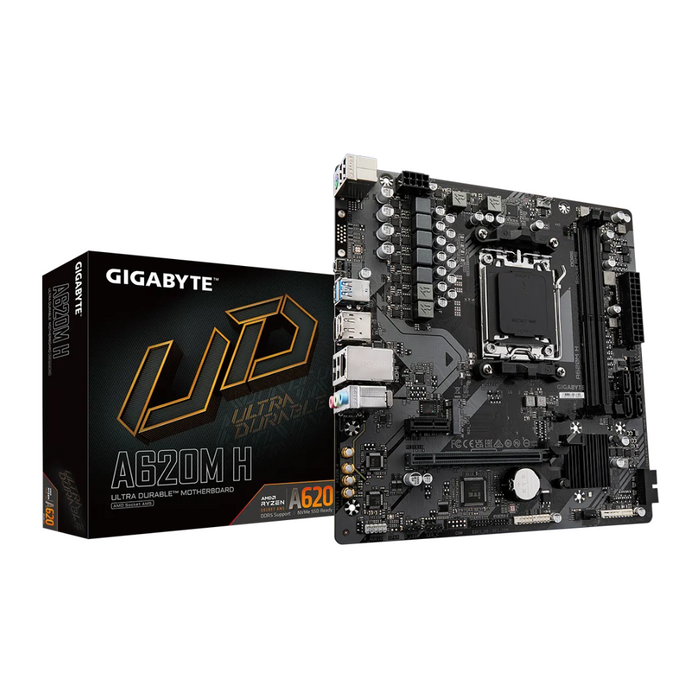

Gigabyte Motherboard A620M H

• Product Number: A620M H

Processor

• CPU: AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

• Chipset: AMD A620

Memory

• Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
• Memory Profile (XMP) memory modules


Onboard Graphics

• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

• Support for DisplayPort 1.4 version

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3

• Support for native HDMI 2.1 TMDS compatible ports
• Support for up to 3 displays at the same time

Audio

• Realtek Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

LAN

• Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots

• 1 x PCI Express x16 slot, integrated in the CPU:

• AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• The PCIEX16 slot can only support a graphics card or an NVMe SSD
• Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage

• 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
• AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

• 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:

  • 2 x USB 3.2 Gen 1 ports on the back panel

  • 1 x USB 2.0/1.1 port on the back panel

• Chipset:

  • 2 x USB 3.2 Gen 1 ports available through the internal USB header

  • 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 1 x addressable LED strip header

• 1 x RGB LED strip header

• 1 x M.2 Socket 3 connector

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC TPM2.0 SPI V2 module only)

• 1 x Clear CMOS jumper

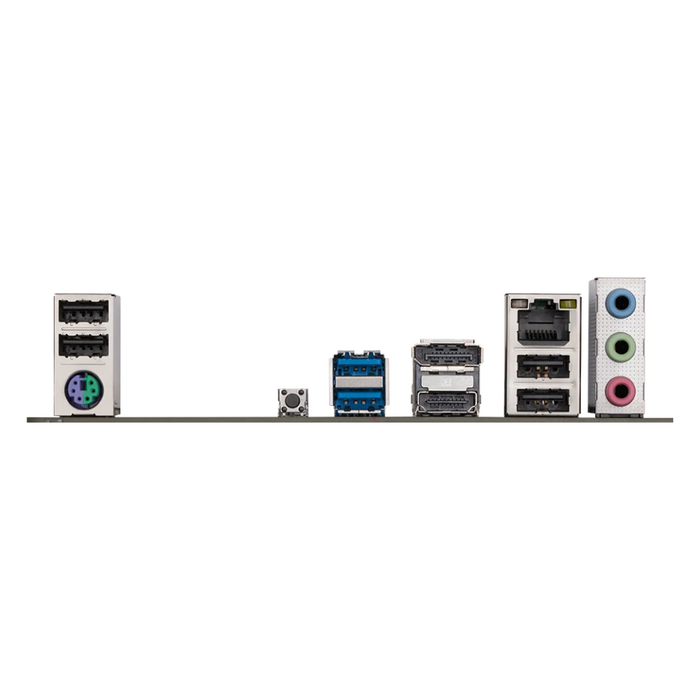

Back Panel Connectors

• 4 x USB 2.0/1.1 ports

• 1 x PS/2 keyboard/mouse port

• 1 x Q-Flash Plus button

• 2 x USB 3.2 Gen 1 ports

• 1 x DisplayPort

• 1 x HDMI port

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning
• Fan speed control

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash Plus

• Support for Q-Flash

Bundled Software

• Norton Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor
• 23.0cm x 22.5cm
