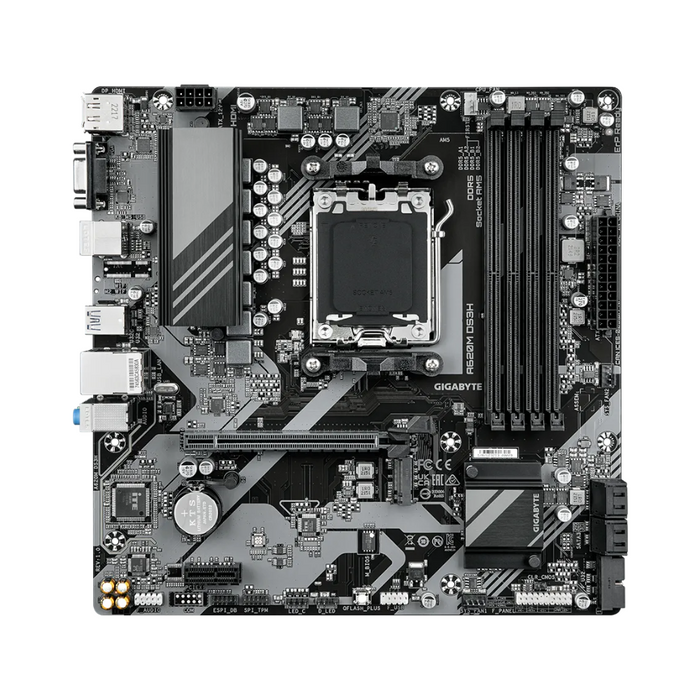

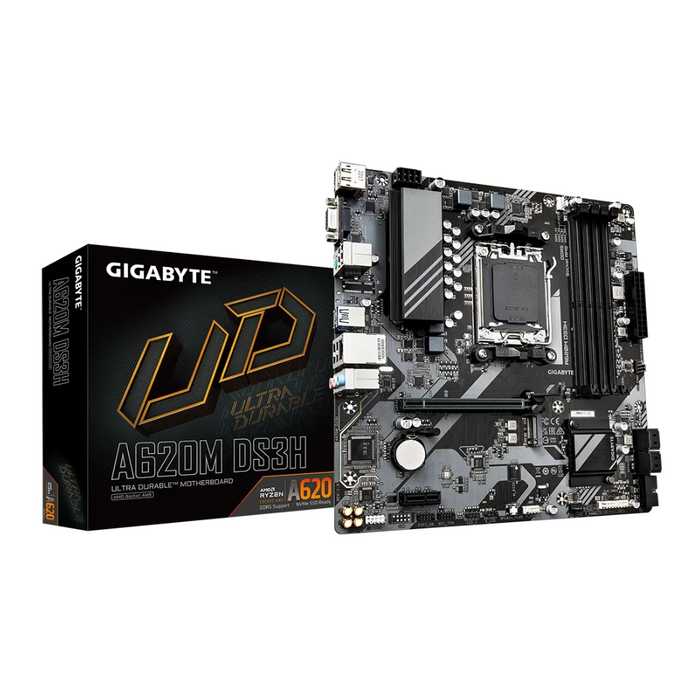

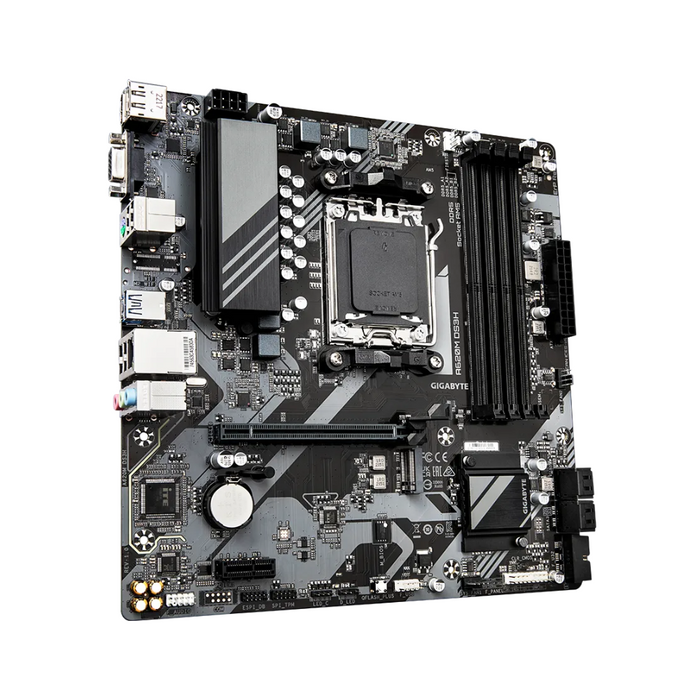

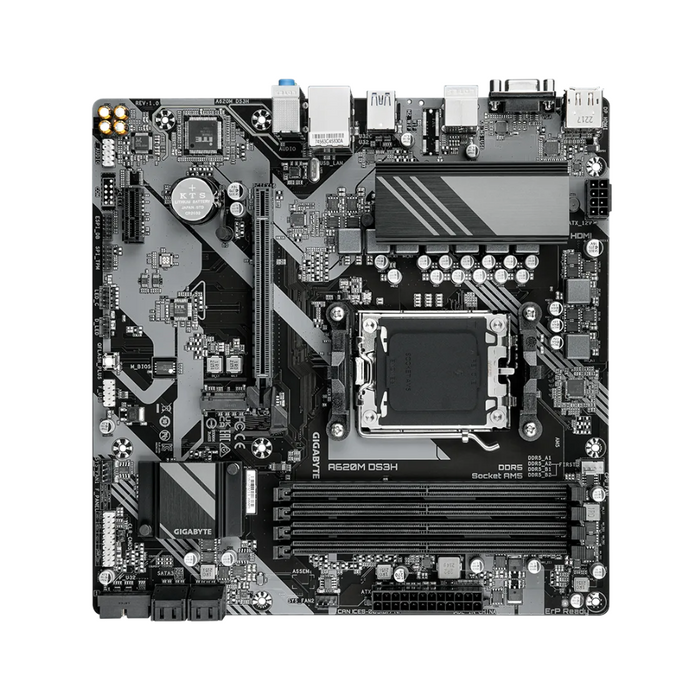

Gigabyte Motherboard A620M DS3H

• Product Number: A620M DS3H

CPU

• AMD Socket AM5, support for:

• AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
• Chipset: AMD A620

Memory

• Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
• Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Support for HDMI 2.1 version and HDCP 2.3.
• Support for native HDMI 2.1 TMDS compatible ports.
• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• Support for up to triple-display at the same time

Audio

• Realtek Audio CODEC

• High Definition Audio
• 2/4/5.1/7.1-channel

Connectivity

• LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)


Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

• Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
• AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

• 4 x SATA 6Gb/s connectors

• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

• CPU:
  • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
  • 1 x USB 3.2 Gen 1 port on the back panel
  • 1 x USB 2.0/1.1 port on the back panel
• Chipset:
  • 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 2 x system fan headers

• 1 x addressable LED strip header

• 1 x RGB LED strip header

• 1 x M.2 Socket 3 connector

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 1 x USB 2.0/1.1 header

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC TPM2.0 SPI V2 module only)

• 1 x Clear CMOS jumper

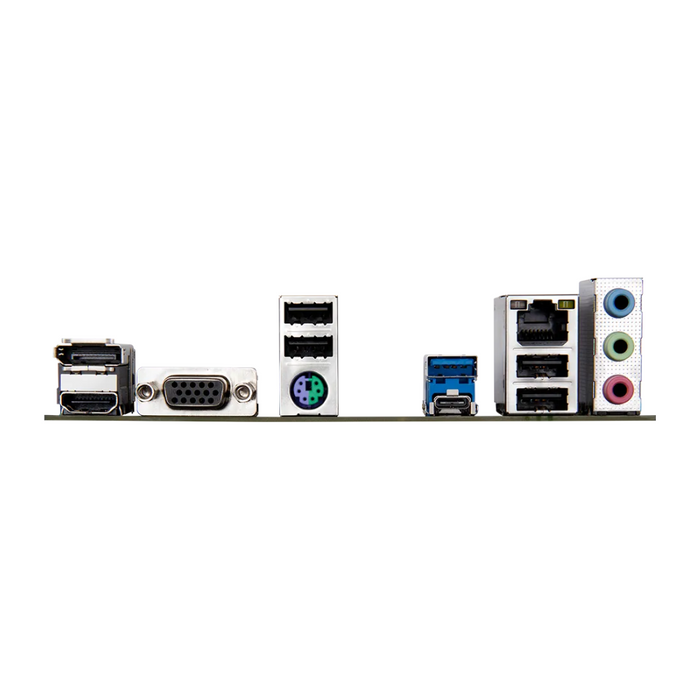

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port

• 1 x USB Type-C port, with USB 3.2 Gen 1 support

• 1 x USB 3.2 Gen 1 port

• 4 x USB 2.0/1.1 ports

• 1 x HDMI port

• 1 x DisplayPort

• 1 x D-Sub port

• 1 x RJ-45 port

• 3 x audio jacks
• I/O Controller: iTE I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Fan fail warning

• Fan speed control

BIOS

• 1 x 256 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

• Support for GIGABYTE Control Center (GCC)

• Support for Q-Flash
• Support for Q-Flash Plus


Bundled Software

• Norton Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor
• 24.4cm x 24.4cm
