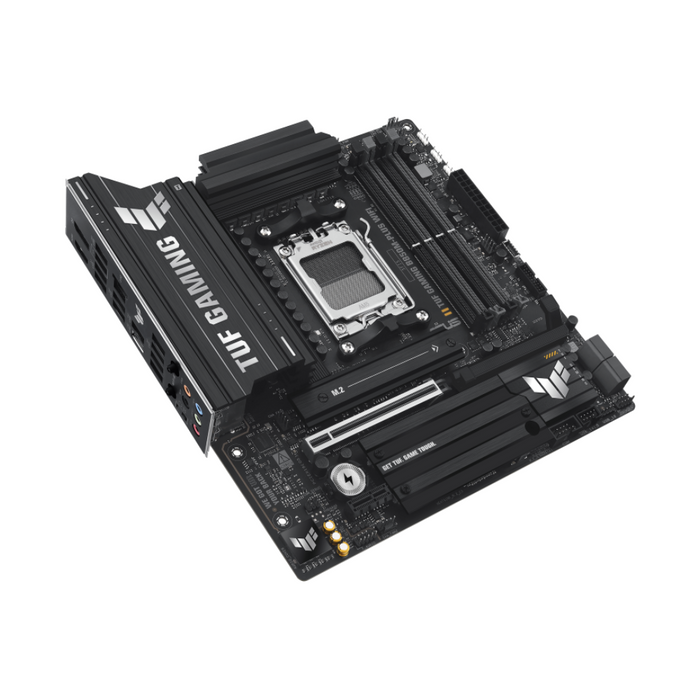

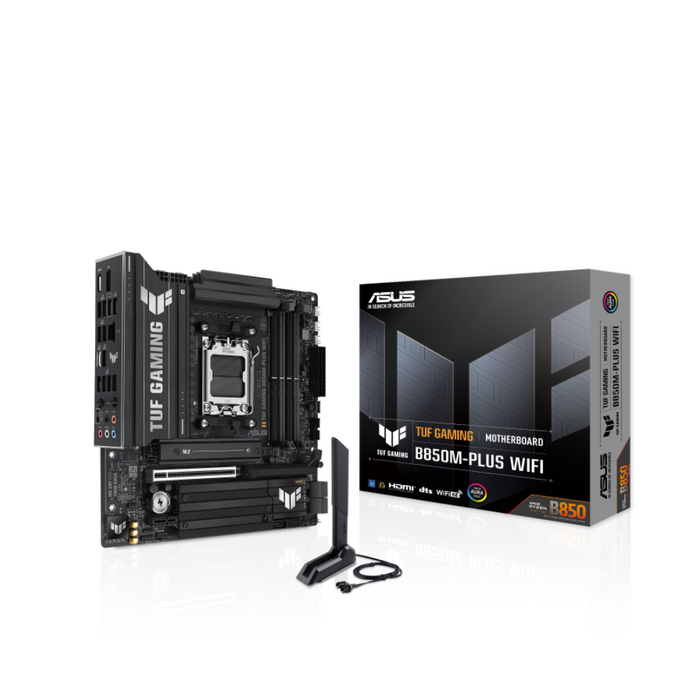

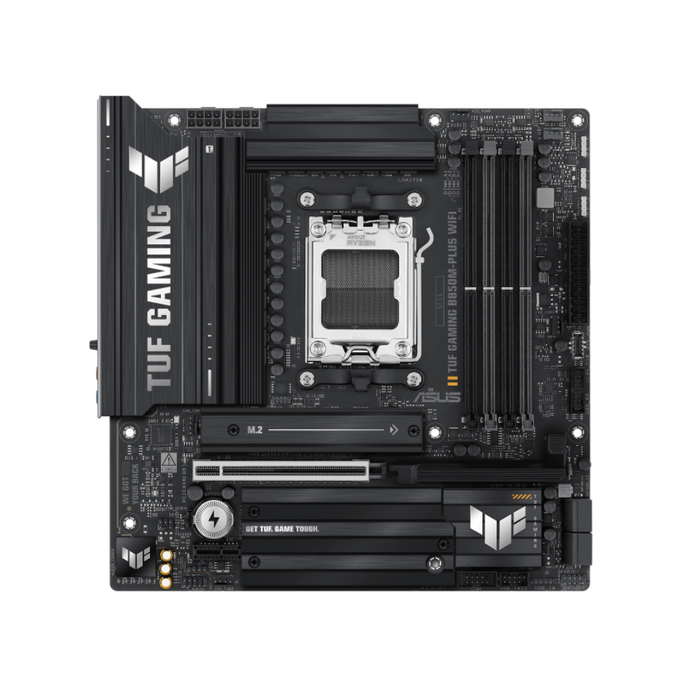

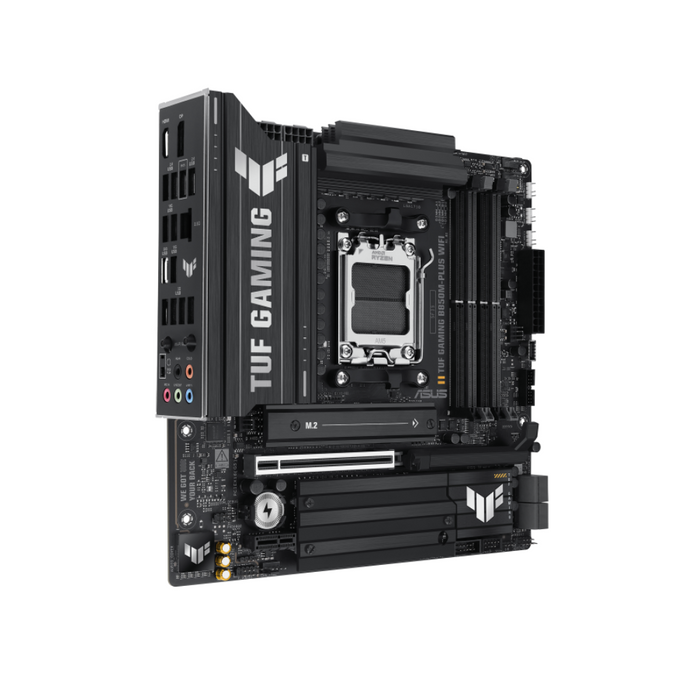

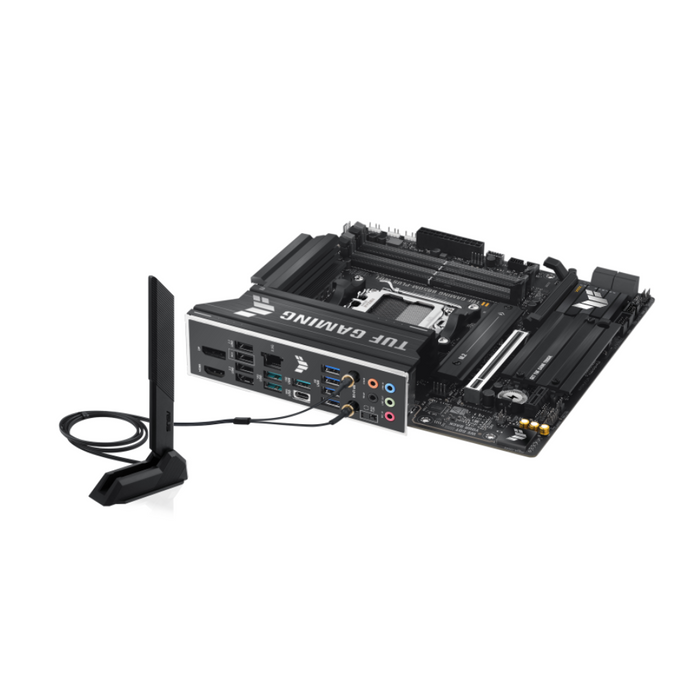

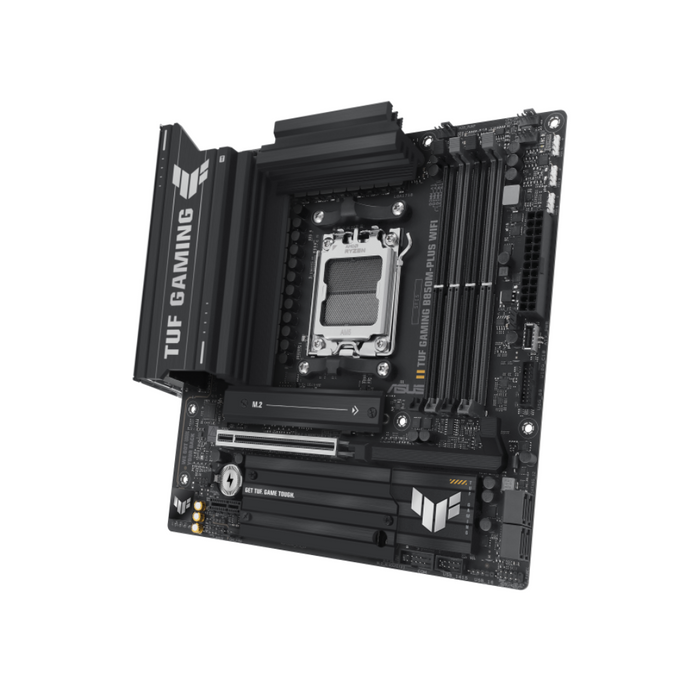

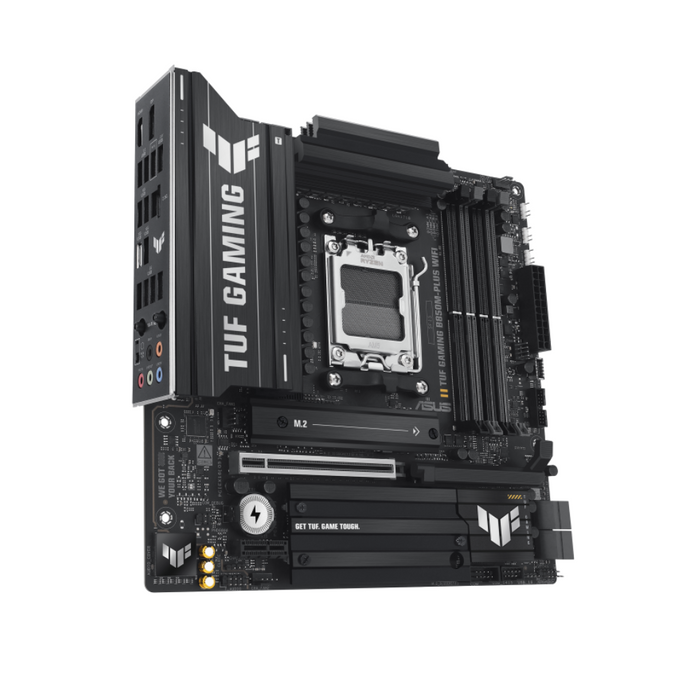

Asus Motherboard TUF Gaming B850M-Plus WiFi

Specifications:

• Product Number: 90MB1IY0-M0EAY0
• Model: TUF GAMING B850M-PLUS WIFI

Processor

• AMD Socket AMD
• for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

• Chipset: AMD B850

Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Support up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered

• Dual channel memory architecture
• DIMM Fit

• Supports AMD Extended Profiles for Overclocking (EXPO)

• ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort

• 1 x HDMI port

• Supports max. 8K@30Hz as specified in DisplayPort 1.4

• Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors

  • 1 x PCIe 5.0 x16 slot (supports x16 mode)

• AMD Ryzen 8000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

• AMD B850 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x1 mode)

  • 1 x PCIe 4.0 x1 slot


Storage

• Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen 9000 & 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

• AMD B850 Chipset

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

• AMD RAIDXpert2 Technology

  • Ryzen 9000 Series Processors: RAID 0/1/5/10

  • Ryzen 8000 Series Processors: RAID 0/1

  • Ryzen 7000 Series Processors: RAID 0/1/10

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

• Bluetooth v5.3

USB

• Rear USB (Total 12 ports)

  • 1 x USB 10Gbps ports (1 x USB Type-C)

  • 3 x USB 5Gbps ports (3 x Type-A)

  • 4 x USB 5Gbps ports (4 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)

  • 1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• USB Type-C power delivery output: max. 5V/3A

Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

• Impedance sense for front and rear headphone outputs

• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• Supports up to 32-Bit/192 kHz playback
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors

  • Dedicated audio PCB layers

  • Audio cover
  • Surround Sound audio output


I/O Ports

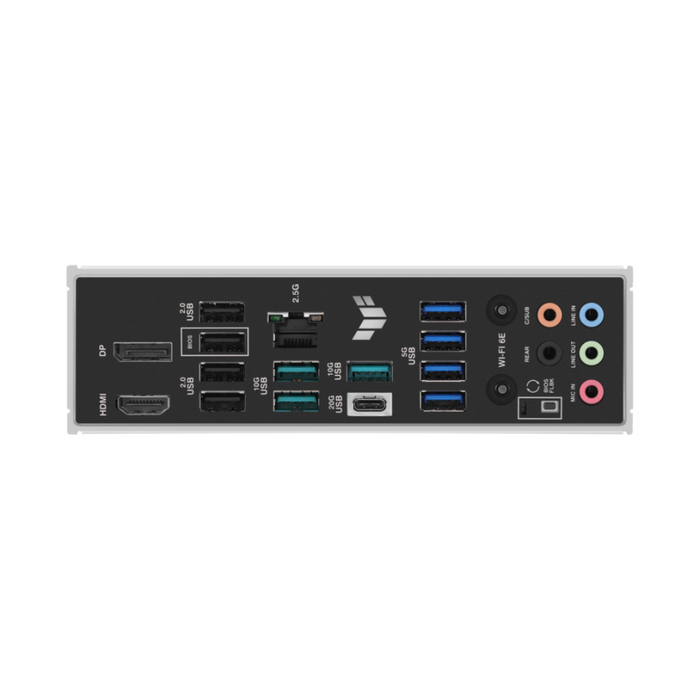

• Back
  • 1 x USB 20Gbps ports (1 x USB Type-C)

  • 3 x USB 10Gbps ports (3 x Type-A)

  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI port

  • 1 x Wi-Fi module

  • 1 x Realtek 2.5Gb Ethernet port

  • 5 x Audio jacks

  • 1 x BIOS FlashBack button
• Internal
• Fan and Cooling Related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 3 x 4-pin Chassis Fan headers

• Power Related

  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V CPU Power connector

• Storage Related

  • 3 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

• USB

  • 1 x USB 20Gbps connector (supports USB Type-C)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

  • 3 x Addressable RGB Gen 2 headers

  • 1 x Clear CMOS header

  • 1 x Chassis Intrusion header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x 10-1 pin Front Panel System header

Special Features

• ASUS TUF PROTECTION

  • DIGI+ VRM (- Digital power design with DrMOS)

  • ESD Guards

  • TUF LANGuard

  • Overvoltage protection

  • SafeSlot

  • Stainless-steel back I/O

• ASUS Q-Design

  • M.2 Q-Latch

  • PCIe Slot Q-Release

  • Q-Antenna

  • Q-Dashboard

  • Q-DIMM

  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• ASUS Thermal Solution

  • Flexible M.2 heatsink

  • VRM heatsink design
• ASUS EZ DIY

  • BIOS FlashBack button

  • BIOS FlashBack LED

  • ProCool

  • Pre-mounted I/O shield

  • SafeDIMM

• Aura Sync

  • Addressable RGB Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

  • Aura Creator

  • Aura Sync

  • Fan Xpert 4

  • Power Saving

  • ASUS AI Advisor

  • ASUS DriverHub

  • ASUS GlideX

  • TurboV Core

  • TUF GAMING CPU-Z

  • DTS Audio Processing
• UEFI BIOS

  • ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash 3

  • ASUS UEFI BIOS EZ Mode

  • ASUS MyHotkey

Bios

• 256 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

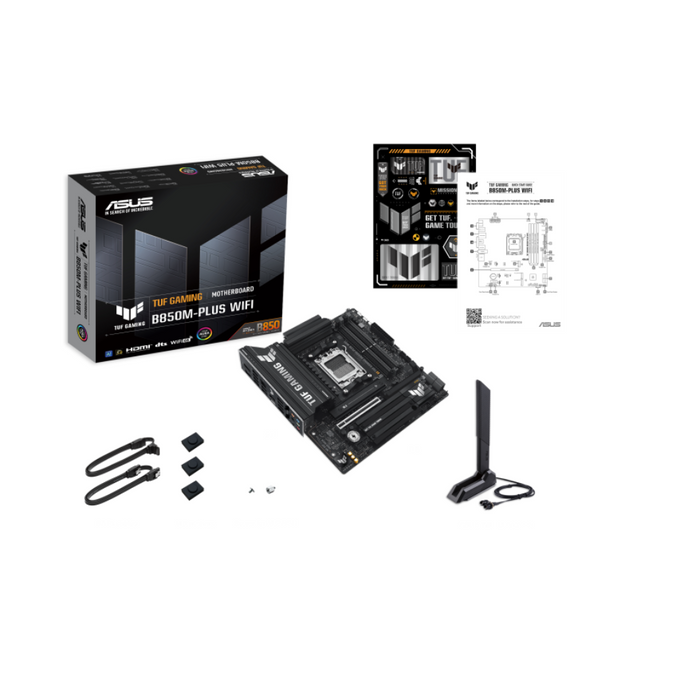

Accessories

• Cables

  • 2 x SATA 6Gb/s cables

• Miscellaneous

  • 1 x ASUS WiFi Q-Antenna

  • 1 x TUF Gaming sticker

  • 2 x M.2 rubber package

  • 1 x Screw packages for M.2 SSD
• Documentation
  • 1 x Quick start guide

Operating System

• Windows 11, Windows 10 64-bit

Form Factor

• Form Factor: micro- ATX

• 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
