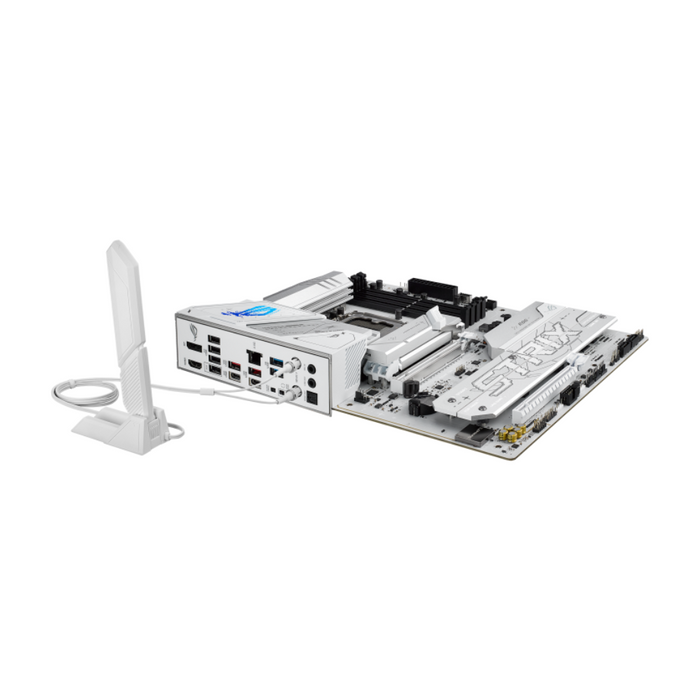

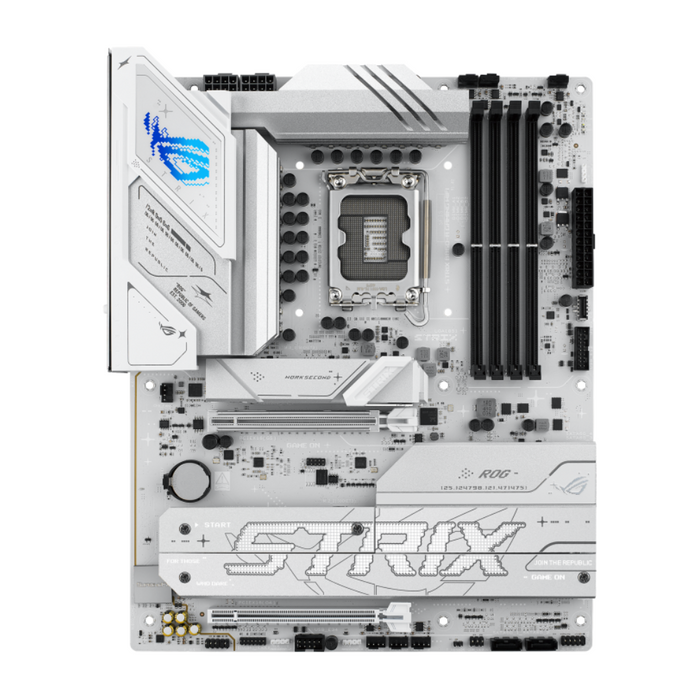

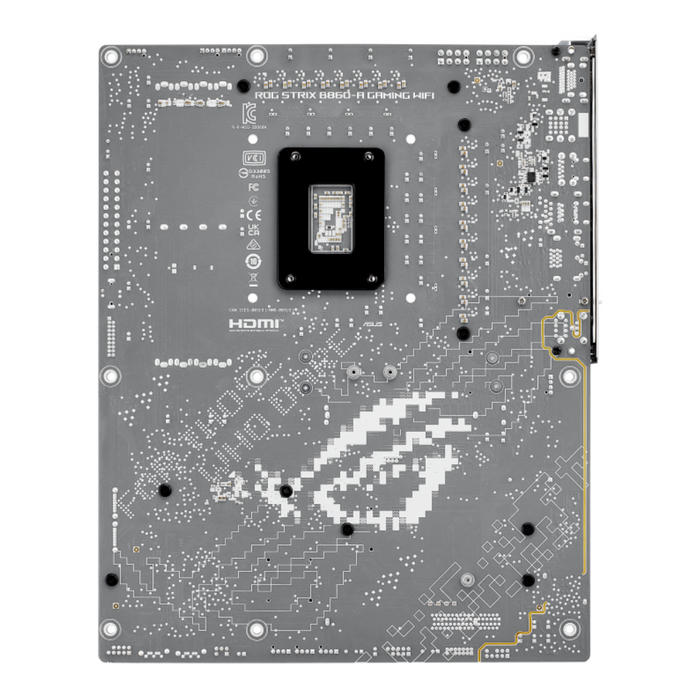

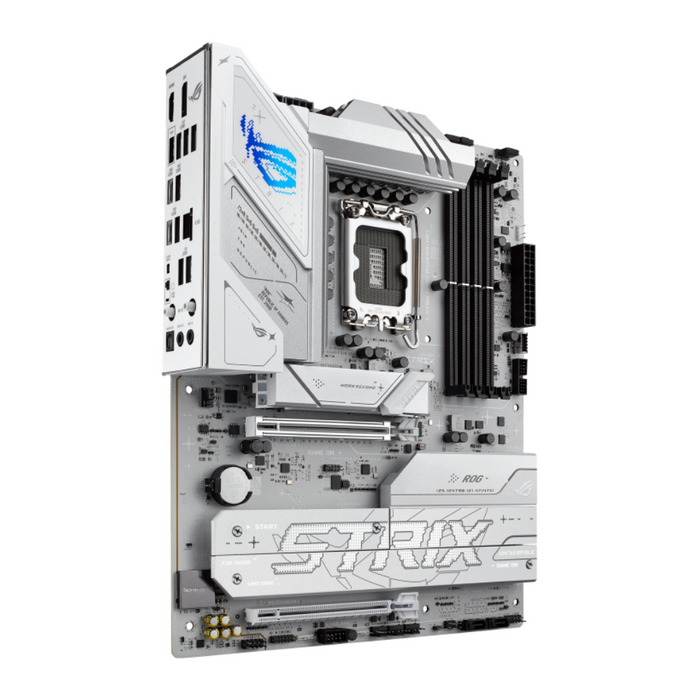

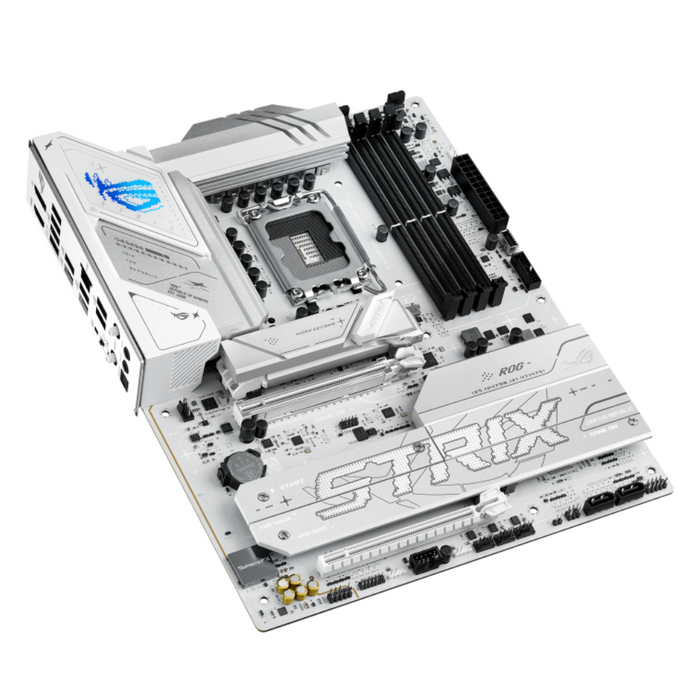

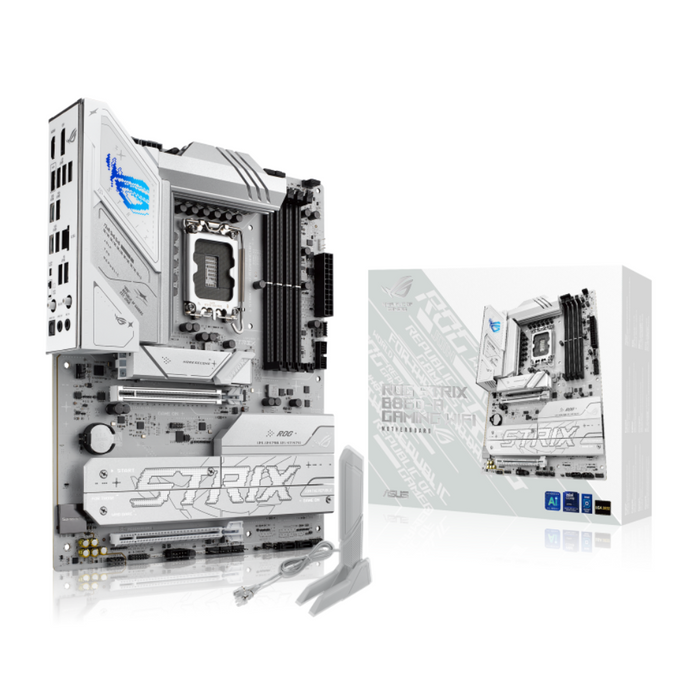

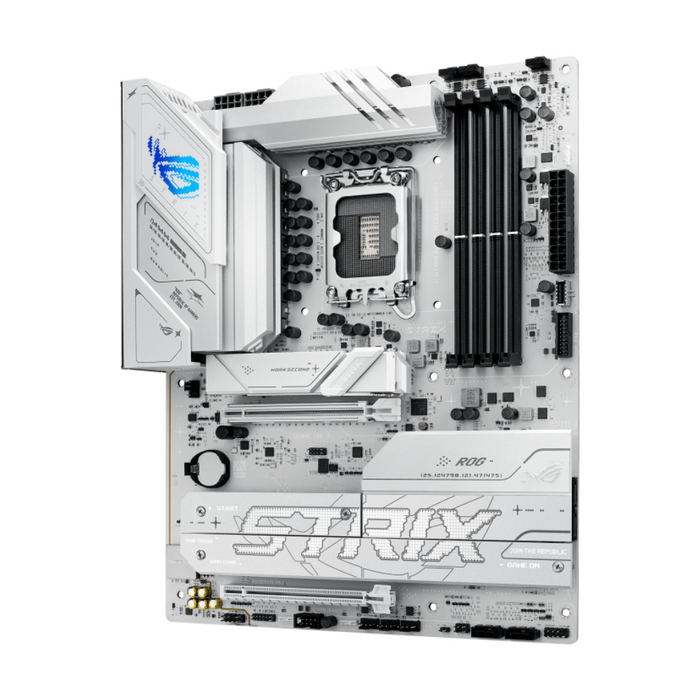

Asus Motherboard ROG STRIX B860-A Gaming WiFi

Specifications:

• Product Number: 90MB1JI0-M0EAY0
• Model: ROG STRIX B860-A GAMING WIFI

CPU

• Support Intel Core™ Ultra Processors(Series 2) , LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel B860 Chipset


Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered
• DIMM Fit

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP) memory module

• Supports DIMM Flex
• ASUS Enhanced Memory Profile III (AEMP III)

Graphics

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x USB4® (20Gbps) ports support USB

• Type-C® display outputs

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot

• Intel® B860 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)


Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• Intel® B860 Chipset

  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

• Bluetooth® v5.4

USB

• Rear USB (Total 10 ports):
  • 1 x USB4® (20Gbps) port (1 x USB Type-C®)

  • 3 x USB 10Gbps ports (2 x Type-A + 1 x USB

  • Type-C®)

  • 2 x USB 5Gbps ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports):
  • 1 x USB 10Gbps connector (supports USB Type-C®)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek ALC1220P 7.1 Surround Sound
• High Definition Audio CODEC

  • Impedance sense for front and rear headphone outputs

  • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

  • Supports up to 32-Bit/192 kHz playback

• Audio Features

  •  SupremeFX Shielding Technology

  • Savitech SV3H712 AMP

  • Rear optical S/PDIF out port

  • Premium audio capacitors

  • Dedicated audio PCB layers

  • Audio cover

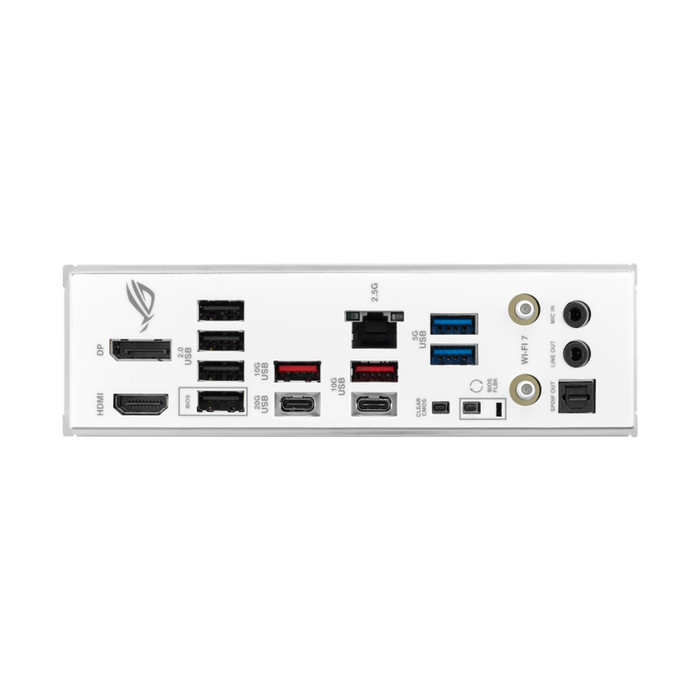

Back Panel I/O Ports

• 1 x USB4® (20Gbps) port (1 x USB Type-C®)

• 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®)

• 2 x USB 5Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Intel® 2.5Gb Ethernet port

• 2 x Audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 4 x 4-pin Chassis Fan headers
• Power Related:
  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V CPU Power connectors
• Storage Related:
  • 4 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

• USB:
  • 1 x USB 10Gbps connector (supports USB Type-C® )

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous:

  • 3 x Addressable Gen2 header(s)

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x 10-1 pin Front System Panel header

  • 1 x Thermal Sensor header

  • 1 x Thunderbolt™ (USB4®) header

Special Features

• Extreme OC Kit

  • 5K Black metallic capacitors

• ASUS Q-Design

  • M.2 Q-Latch

  • M.2 Q-Release

  • M.2 Q-Slide

  • PCIe Slot Q-Release Slim (with PCIe SafeSlot)

  • Q-Antenna

  • Q-Dashboard

  • Q-DIMM

  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink backplate
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Clear CMOS button
  • CPU Socket lever protector
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot
  • SafeDIMM
• Aura Sync
  • Addressable Gen2 headers

Software Features

• ROG Exclusive Software

  • ROG CPU-Z

  • Dolby Atmos
• ASUS Exclusive Software

• Armoury Crate

  • Aura Creator

  • Aura Sync

  • Fan Xpert 4

  • GameFirst

  • Power Saving

• AIDA64 Extreme (60 days free trial)

• HWiNFO

• ASUS AI Advisor

• ASUS DriverHub

• ASUS GlideX

• TurboV Core

• Adobe Creative Cloud 30 Days Free Trial)

• Norton 360 for Gamers (60 Days Free Trial)

• WinRAR (40 Days Free Trial)
• UEFI BIOS

• AI Overclocking Guide

• ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash

  • ASUS UEFI BIOS EZ Mode

  • ASUS MyHotkey

• NPU Boost


BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

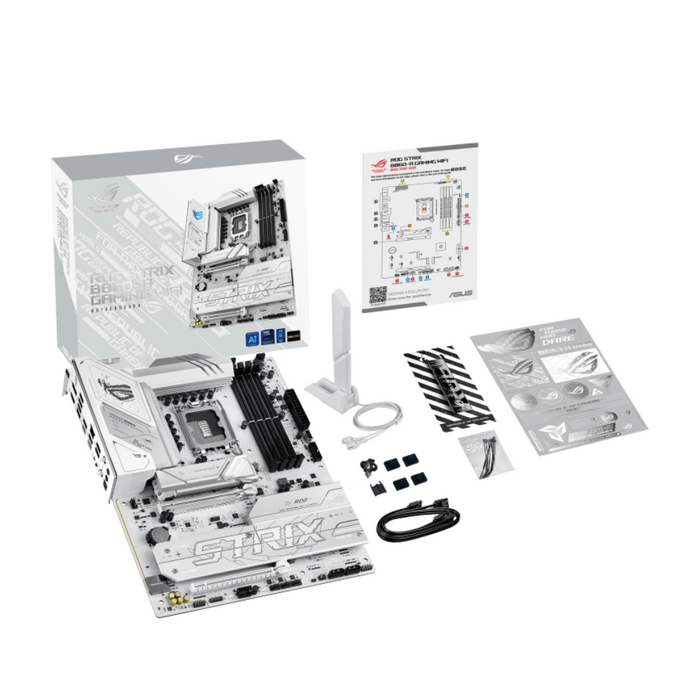

Accessories

• Cables

  • 2 x SATA 6Gb/s cables
• Miscellaneous

  • 1 x ASUS WiFi Q-Antenna

  • 1 x Cable ties package

  • 1 x M.2 Q-Latch

  • 1 x M.2 Q-Slide

  • 1 x ROG key chain

  • 1 x ROG Strix stickers

  • 4 x M.2 rubbers
• Documentation

  • 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
