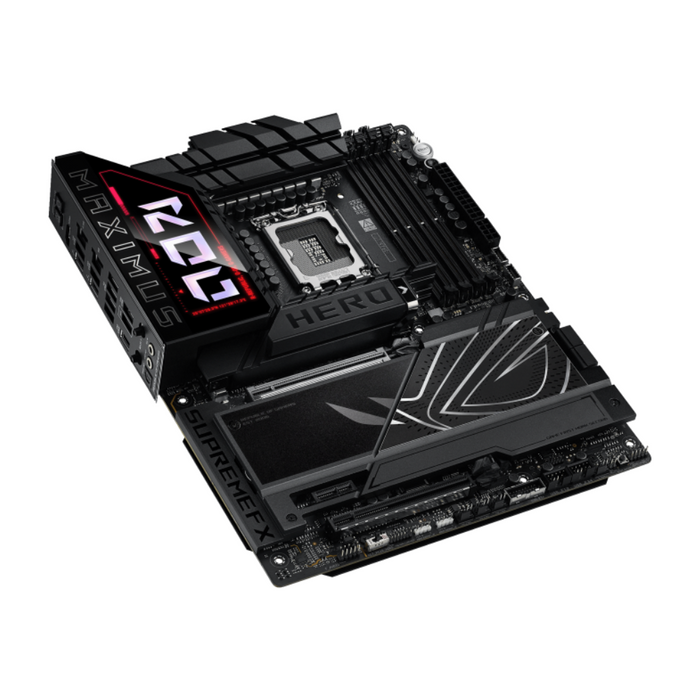

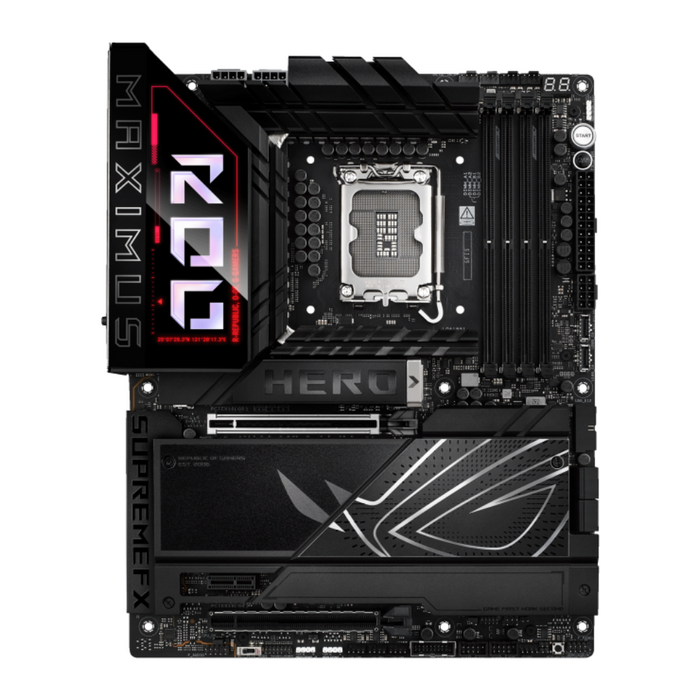

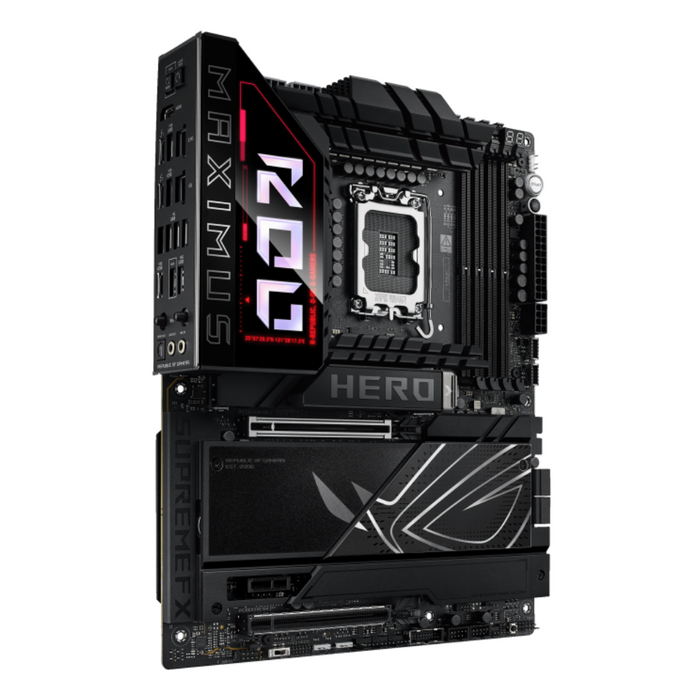

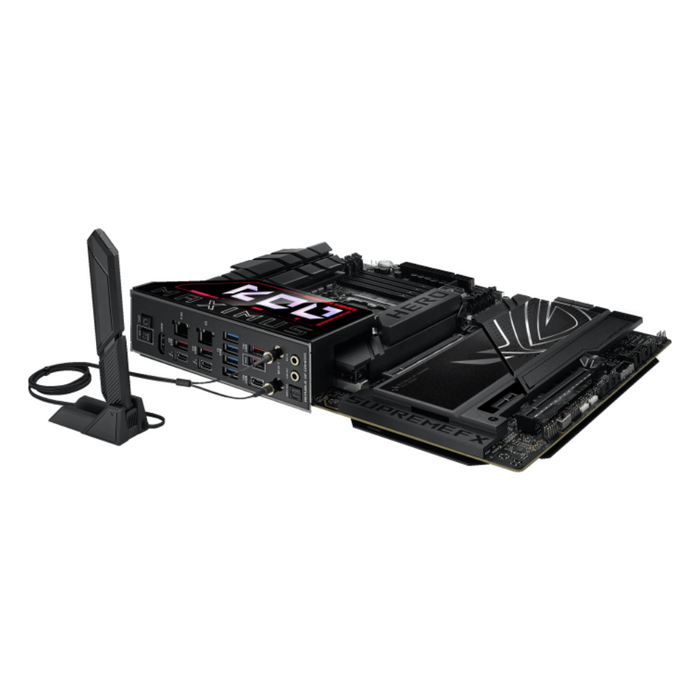

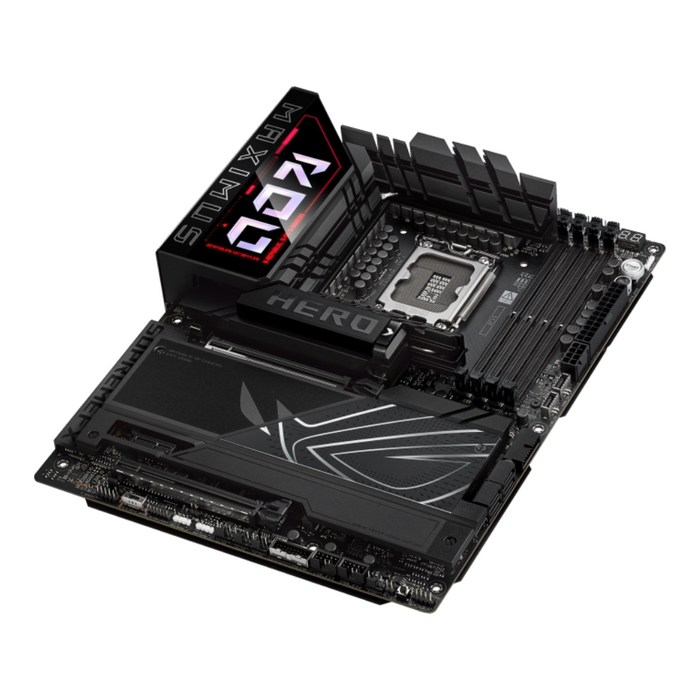

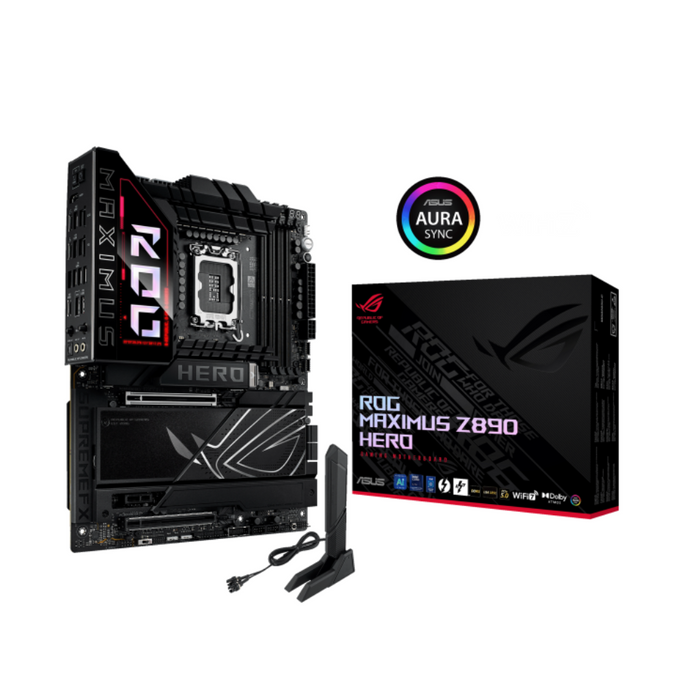

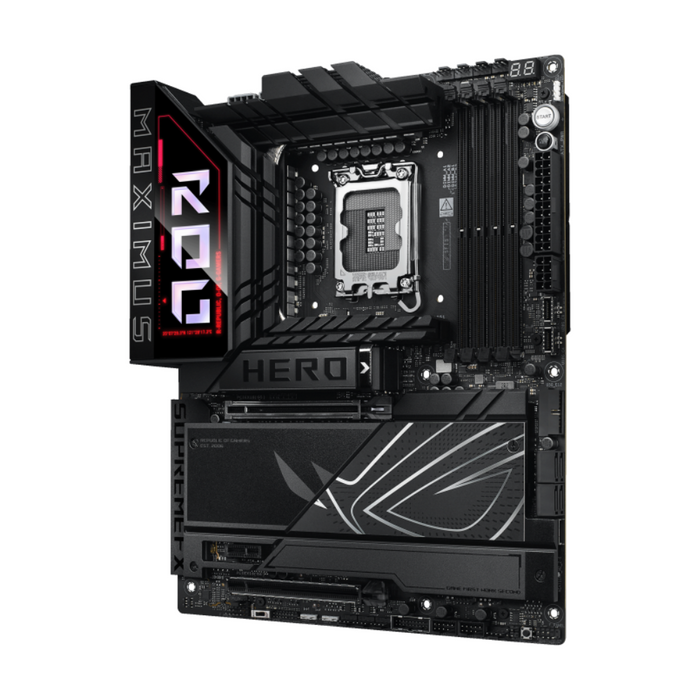

Asus Motherboard ROG MAXIMUS Z890 HERO

Specifications:

• Product Number: 90MB1ID0-M0EAY0
• Model: ROG MAXIMUS Z890 HERO

CPU

• Support Intel® Core™ Ultra Processors(Series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® Z890 Chipset


Memory

• 4 x DIMM slots, max. 256GB, DDR5

• Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered
• DIMM (CUDIMM)

• Dual channel memory architecture

• Supports Intel® Extreme Memory Profile (XMP) memory module

• Supports DIMM Flex

• NitroPath DRAM Technology

• DIMM FIT

• ASUS Enhanced Memory Profile III (AEMP III)

Graphics

• 1 x HDMI™ port

• 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
• Intel® Z890 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)

  • 1 x PCIe 4.0 x1 slot

Storage

• Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)

  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

  • M.2_4 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
• Intel® Z890 Chipset
  • M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• 1 x Realtek 5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate

• Bluetooth® v5.4

USB

• Rear USB (Total 11 ports):
  • 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

  • 5 x USB 10Gbps ports (4 x Type-A)

  • 4 x USB 5Gbps ports (4 x Type-A)
• Front USB (Total 10 ports):
  • 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)

  • 1 x USB 10Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

  • Impedance sense for front and rear headphone outputs
  • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

  • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

  • Supports up to 32-Bit/384 kHz playback on front panel"

• Audio Features

  • SupremeFX Shielding Technology

  • ESS® ES9219 QUAD DAC

  • Gold-plated audio jacks

  • Rear optical S/PDIF out port

  • Premium audio capacitors

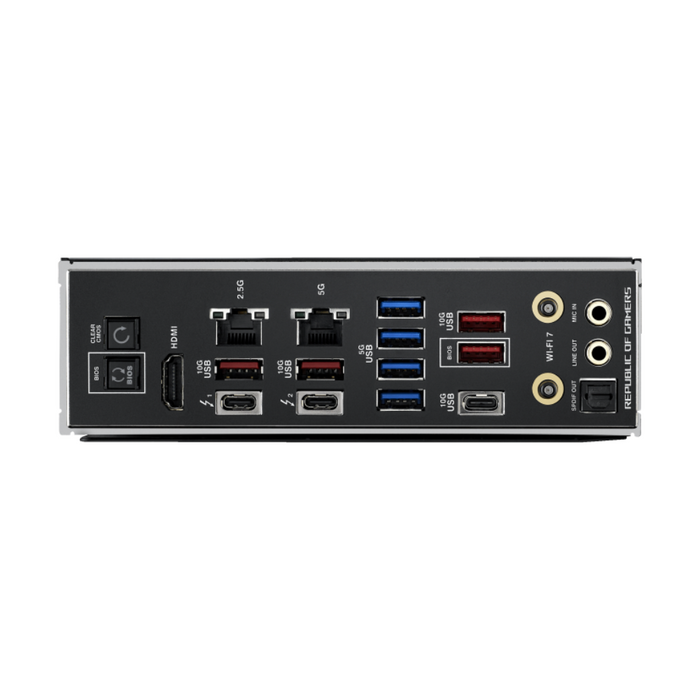

Back Panel I/O Ports

• 2 x Thunderbolt™ 4 USB Type-C® ports

• 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)

• 4 x USB 5Gbps ports (4 x Type-A)

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Intel® 2.5Gb Ethernet port

• 1 x Realtek 5Gb Ethernet port

• 2 x Gold-plated audio jacks

• 1 x Optical S/PDIF out port

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

Internal I/O Connectors

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 4 x 4-pin Chassis Fan headers

  • 1 x W_PUMP+ headers
• Power Related:
  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V Power connector

  • 1 x 8-pin PCIe Power connector

• Storage Related:
  • 6 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • 1 x SlimSAS connector
• USB:
  • 1 x USB 20Gbps connector (supports USB Type-C®)

  • 1 x USB 10Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous:

  • 3 x Addressable Gen 2 headers

  • 1 x Alteration PCIe mode switch

  • 1 x FlexKey button

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x ReTry button

  • 1 x Start button

  • 1 x 10-1 pin System Panel header

  • 1 x Thermal Sensor header

  • 1 x Thunderbolt™ (USB4®) header

Special Features

• Extreme OC Kit

  • FlexKey button
  • ReTry button

  • Start button

• Extreme Engine Digi+

  • 10K Black metallic capacitors

  • MicroFine alloy choke
• ASUS Q-Design

  • M.2 Q-Latch

  • M.2 Q-Release
  • M.2 Q-Slide

  • Q-Release Slim (with PCIe SafeSlot)

  • Q-Antenna

  • Q-Code

  • Q-Dashboard

  • Q-Connector

  • Q-DIMM

  • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • Q-Slot

• ASUS Thermal Solution

  • M.2 heatsink backplate

  • M.2 heatsink

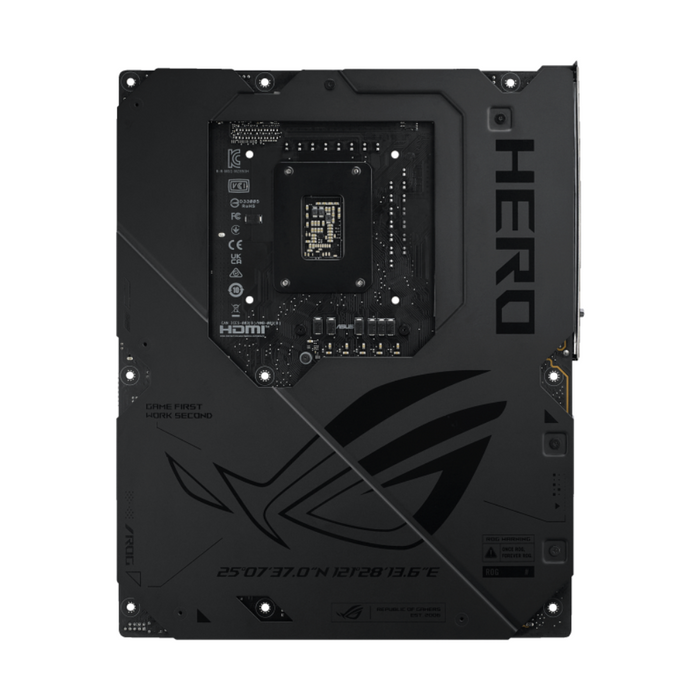

  • Metal backplate

  • VRM heatsink design

• ASUS EZ DIY

  • Backplate

  • BIOS FlashBack™ button

  • Clear CMOS button

  • CPU Socket lever protector

  • ProCool II

  • Pre-mounted I/O shield

  • SafeSlot

  • SafeDIMM

• Aura Sync

  • Addressable Gen 2 headers

• ROG M.2 PowerBoost

• Front Panel USB 20Gbps with Quick Charge 4+ Support

  • Support: up to 60W fast charging and USB Wattage Watcher

  • Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

  • Compatible with PD3.0 and PPS

Software Features

• ROG Exclusive Software

  • ROG CPU-Z

  • Dolby Atmos

  • Polymo Lighting II

  • Internet Security (1-year full version)

• ASUS Exclusive Software

• Armoury Crate

  • AIDA64 Extreme (1 year full version)

  • Aura Creator

  • Aura Sync

  • Fan Xpert 4 (with AI Cooling II)

  • GameFirst

  • Power Saving

  • HWiNFO

• ASUS AI Advisor

• ASUS Driver Hub

• ASUS GlideX

• Turbo Vcore

• Adobe Creative Cloud (Free Trial)

• USB Wattage Watcher

• Thunderbolt™ Share

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• AI Overclocking Guide

• ASUS EZ DIY

  • ASUS CrashFree BIOS 3

  • ASUS EZ Flash

  • ASUS UEFI BIOS EZ Mode

  • ASUS MyHotkey

• NPU Boost

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

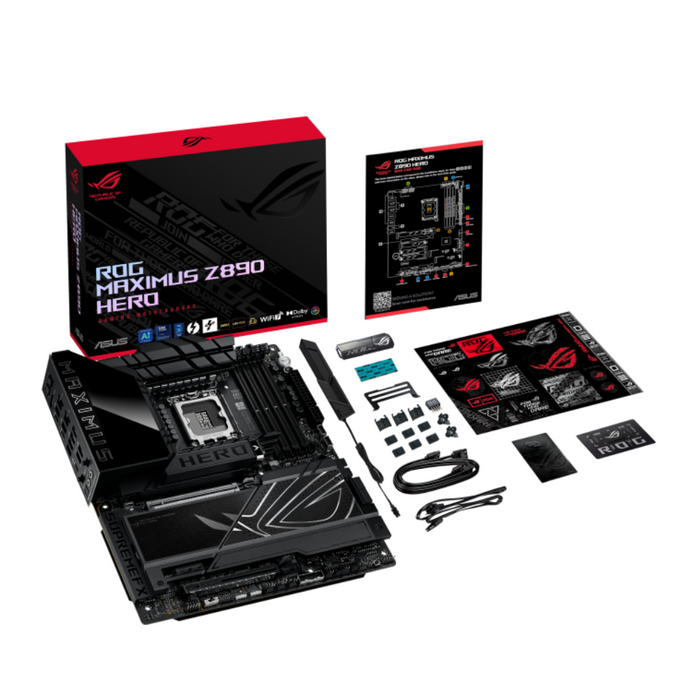

Accessories

• Cables

  • 1 x ARGB RGB extension cable

  • 4 x SATA 6Gb/s cables

• Additional Cooling Kit

  • 1 x DDR5 fan holder

  • 1 x Thermal pad for M.2 22110

• Miscellaneous

  • 1 x ASUS WiFi Q-Antenna

  • 1 x Q-connector

  • 1 x M.2 Q-Latch package

  • 3 x M.2 Q-Slide packages

  • 1 x ROG stickers

  • 6 x M.2 rubber packages

  • 1 x ROG thank you card

  • 1 x ROG Bottle Opener

• Installation Media

  • 1 x USB drive with utilities and drivers

• Documentation

  • 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
