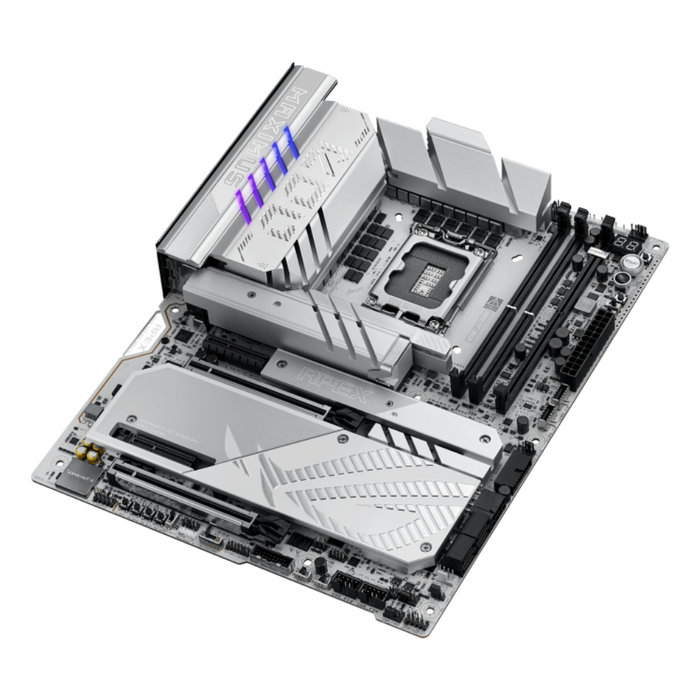

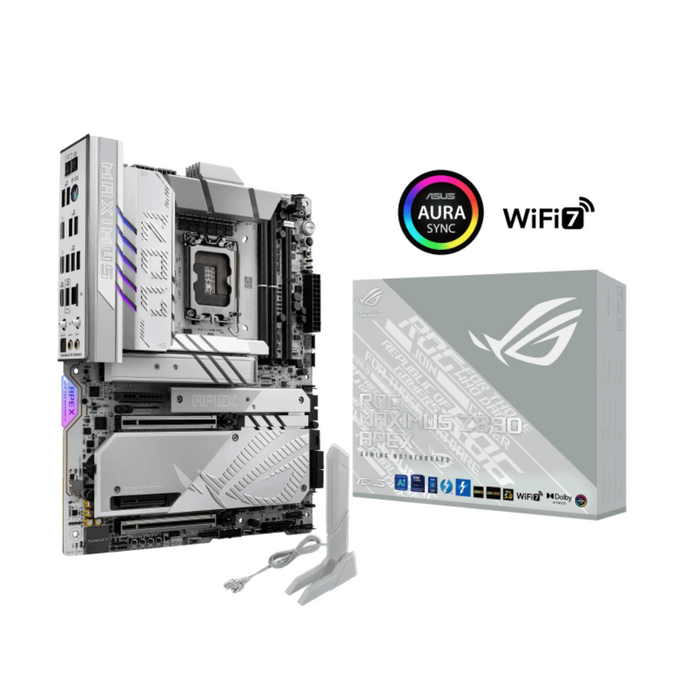

Asus Motherboard ROG MAXIMUS Z890 APEX

Asus Motherboard ROG MAXIMUS Z890 APEX

by Asus
SKU CMB-310
€0,00 - €0,00
€0,00
€899,00
€899,00 - €899,00
€899,00

Specifications:

  • Product Number: 90MB1IP0-M0EAY0
  • Model: ROG MAXIMUS Z890 APEX

CPU

  • Support Intel® Core™ Ultra Processors(Series 2) , LGA1851
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
  • Chipset: Intel® Z890 Chipset

Memory

  • 2 x DIMM slots, max. 128GB, DDR5
  • Supports up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
  • Dual Channel Memory Architecture
  • DIMM Fit
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • Supports DIMM Flex
  • ASUS Enhanced Memory Profile III (AEMP III)

Graphics

  • 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs

Expansion Slots

  • Intel® Core™ Ultra Processors (Series 2)
    • 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
  • Intel® Z890 Chipset
    • 2 x PCIe 4.0 x4 slots

Storage

  • Total supports 6 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel® Core™ Ultra Processors (Series 2)
    • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
    • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
  • Intel® Z890 Chipset
    • DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • 4 x SATA 6Gb/s ports

Ethernet

  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
  • Bluetooth® v5.4

USB

  • Rear USB (Total 11 ports):
    • 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
    • 1 x USB 20Gbps port (1 x USB Type-C®)
    • 4 x USB 10Gbps ports (4 x Type-A)
    • 4 x USB 5Gbps ports (4 x Type-A)
  • Front USB (Total 5 ports):
    • 1 x USB 20Gbps (supports USB Type-C®)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 1 x USB 2.0 header supports 2 additional USB 2.0 ports
    • USB Type-C® power delivery output: max. 5V/3A

Audio

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    • Impedance sense for front and rear headphone outputs
    • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    • Supports up to 32-Bit/384 kHz playback on front panel"
  • Audio Features
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Gold-plated audio jacks
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Audio cover

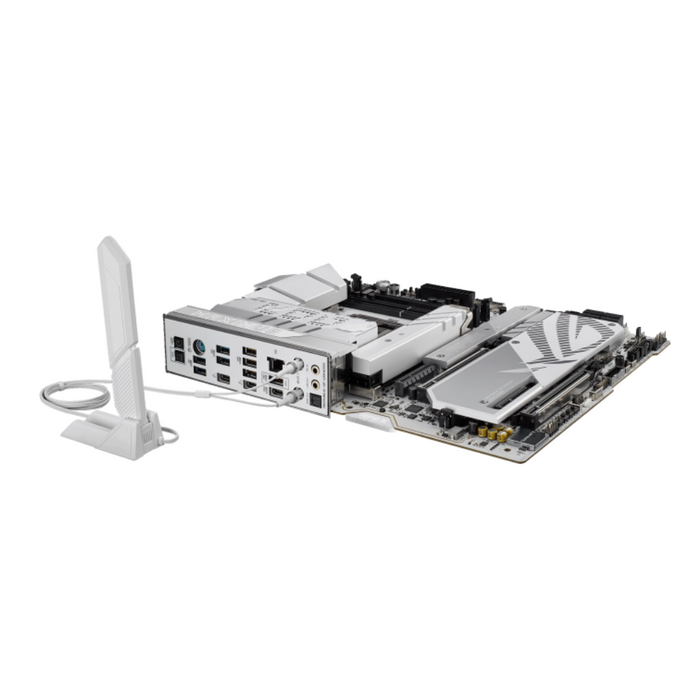

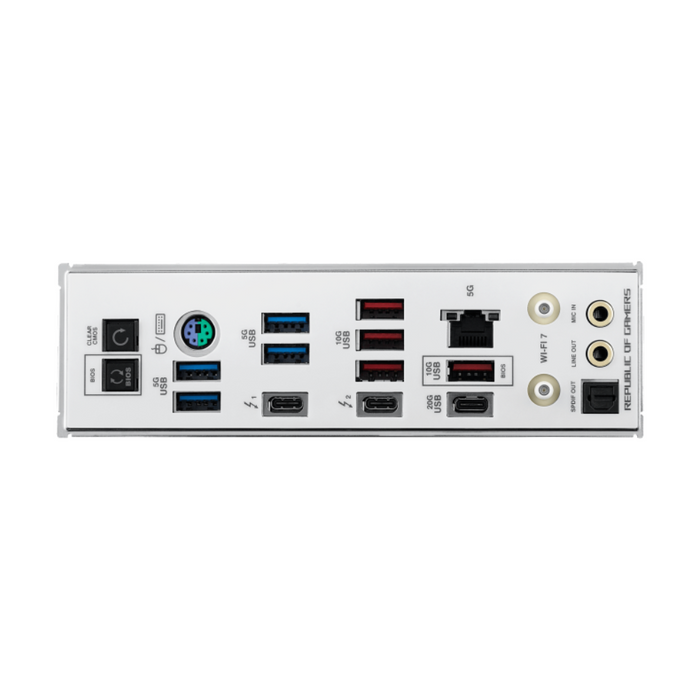

Back Panel I/O Ports

  • 2 x Thunderbolt™ 4 ports (USB Type-C®)
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 4 x USB 10Gbps ports (4 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x Wi-Fi Module
  • 1 x Realtek 5Gb Ethernet port
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™  button
  • 1 x Clear CMOS button
  • 1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

  • Fan and Cooling Related:
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 2 x 4-pin Chassis Fan headers
    • 2 x 4-pin Full Speed Fan headers
    • 1 x W_PUMP+ header
    • 1 x Extra Flow Fan header
  • Power Related:
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V Power connector
    • 1 x 8-pin PCIe Power connector
  • Storage Related:
    • 4 x M.2 slots (Key M)
    • 1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB:
    • 1 x USB 20Gbps connector (supports USB Type-C®)
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous:
    • 1 x 80 Light Bar jumper
    • 3 x Addressable Gen 2 headers
    • 1 x Alteration PCIe mode switch
    • 4 x BCLK button
    • 1 x BIOS Switch button
    • 1 x FlexKey button
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x LN2 Mode jumper
    • 1 x Pause switch
    • 18 x ProbeIt Measurement Points
    • 1 x ReTry button
    • 2 x RSVD switches
    • 1 x RSVD header
    • 1 x Safe Boot button
    • 1 x Slow Mode switch
    • 1 x Start button
    • 1 x 10-1 pin System Panel header
    • 1 x Thermal Sensor header
    • 1 x Thunderbolt™ (USB4®) header

Special Features

  • Extreme OC Kit
    • FlexKey button
    • LN2 Mode
    • ProbeIt
    • ReTry button
    • Safe boot button
    • Start button
    • Slow Mode
  • Extreme Engine Digi+
    • SMD Capacitor
    • MicroFine Alloy Choke
  • ASUS Q-Design
    • M.2 Q-Latch
    • M.2 Q-Release
    • M.2 Q-Slide
    • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    • Q-Antenna
    • Q-Code
    • Q-Dashboard
    • Q-Connector
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsink backplate
    • M.2 heatsink
    • VRM heatsink design
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • Clear CMOS button
    • CPU Socket lever protector
    • ProCool II
    • Pre-mounted I/O shield
    • SafeSlot
    • SafeDIMM
  • Aura Sync
    • Addressable Gen 2 headers
  • Dual BIOS
  • Front Panel USB 20Gbps with Quick Charge 4+ Support
    • Support: up to 60W fast charging and USB Wattage Watcher
    • Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    • Compatible with PD3.0 and PPS

Software Features

  • ROG Exclusive Software
    • ROG CPU-Z
    • Dolby Atmos
    • Internet Security (1-year full version)
  • ASUS Exclusive Software
  • Armoury Crate
    • AIDA64 Extreme (1 year full version)
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4 (with AI Cooling II)
    • GameFirst
    • Power Saving
    • HWiNFO
  • ASUS AI Advisor
  • ASUS Driver Hub
  • ASUS GlideX
  • Turbo Vcore
  • Adobe Creative Cloud (Free Trial)
  • Thunderbolt™ Share
  • USB Wattage Watcher
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey
  • NPU Boost

BIOS

  • 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME, PXE

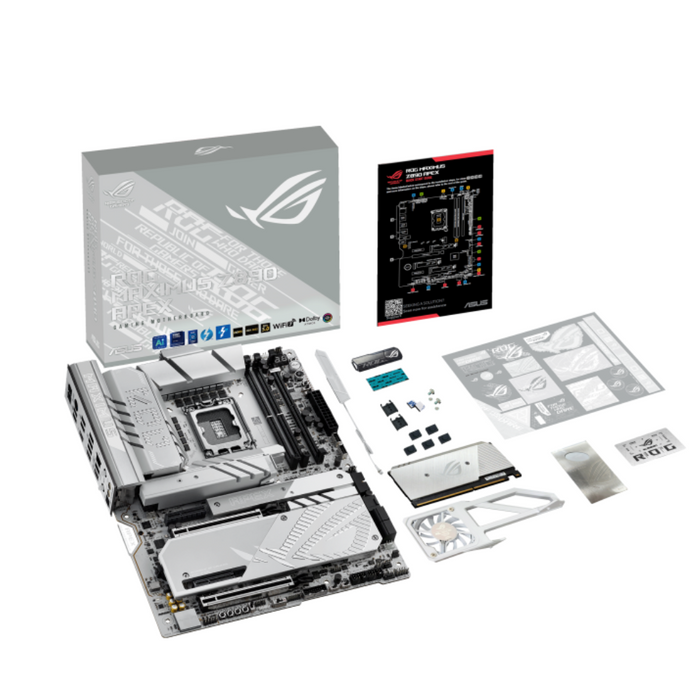

Accessories

  • ROG DIMM.2 with Heatsink
    • 1 x ROG DIMM.2 with heatsink
    • 1 x M.2 pad for ROG DIMM.2
    • 2 x M.2 screw package for ROG DIMM.2
  • Additional Cooling Kit
    • 1 x Thermal pad for M.2 22110
    • 1 x ROG Memory Fan Kit
  • Miscellaneous
    • 1 x ASUS WiFi Q-Antenna
    • 1 x Q-connector
    • 1 x ROG VIP card
    • 3 x M.2 Q-Slide package
    • 5 x M.2 backplate rubber packages
    • 1 x ROG Bottle Opener
  • Installation Media
    • 1 x USB drive with utilities and drivers
  • Documentation
    • 1 x Quick start guide

Operating System

  • Windows 11 (22H2 & later)

Form Factor

  • ATX Form Factor
  • 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

-Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes.
