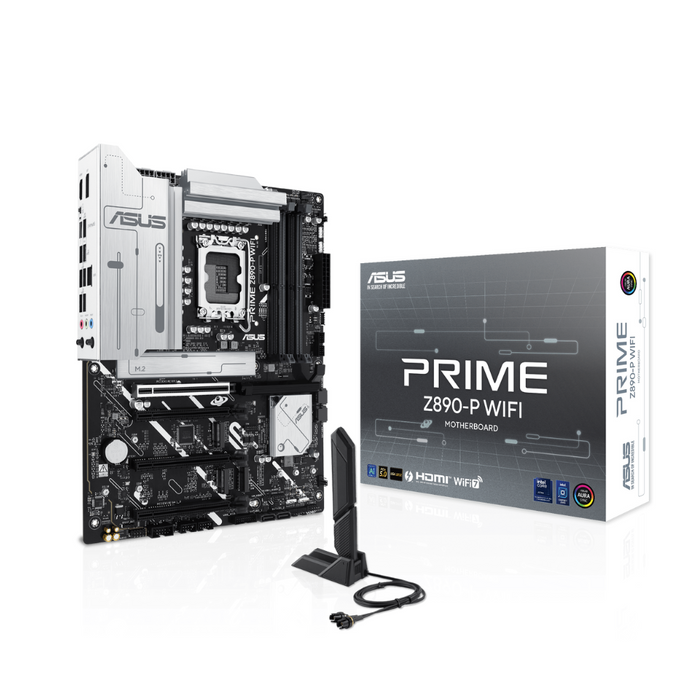

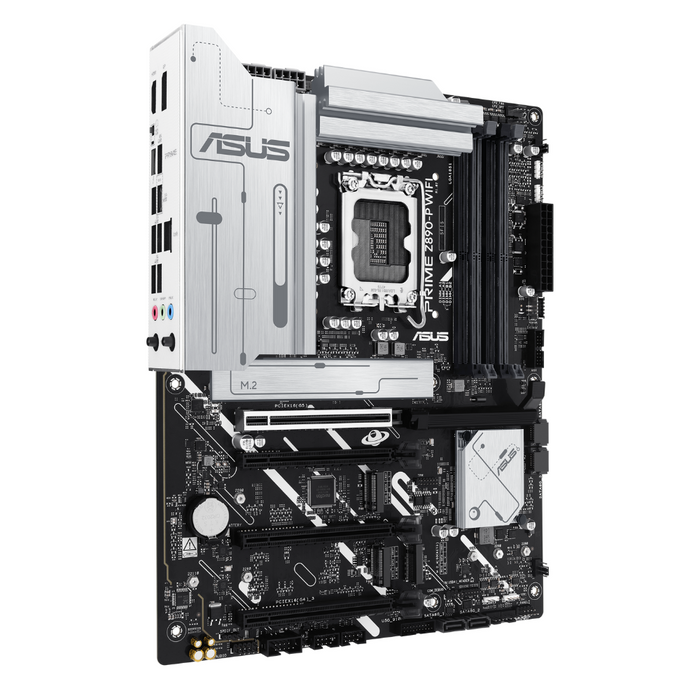

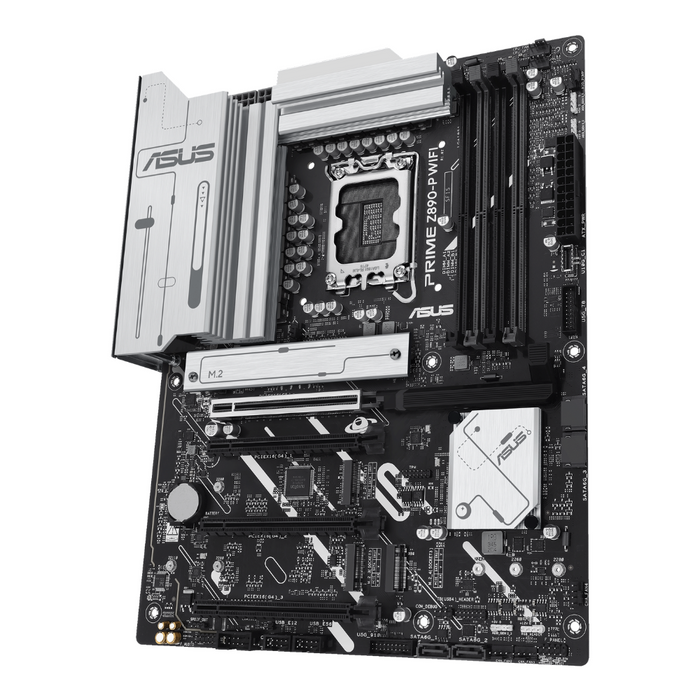

Asus Motherboard PRIME Z890-P WiFi

Specifications:

• Product Number: 90MB1I70-M0EAY0
• Model: PRIME Z890-P WIFI


CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® Z890 Chipset


Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8666+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP)
• ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot

• Intel® Z890 Chipset

  • 2 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x16 slots (support x1 mode)

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• Intel® Z890 Chipset
  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)

• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

• Bluetooth® v5.4

USB

• Rear USB (Total 8 ports):
  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)

  • 1 x USB 10Gbps port (1 x Type-A)

  • 2 x USB 5Gbps ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports):
  • 1 x USB 10Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

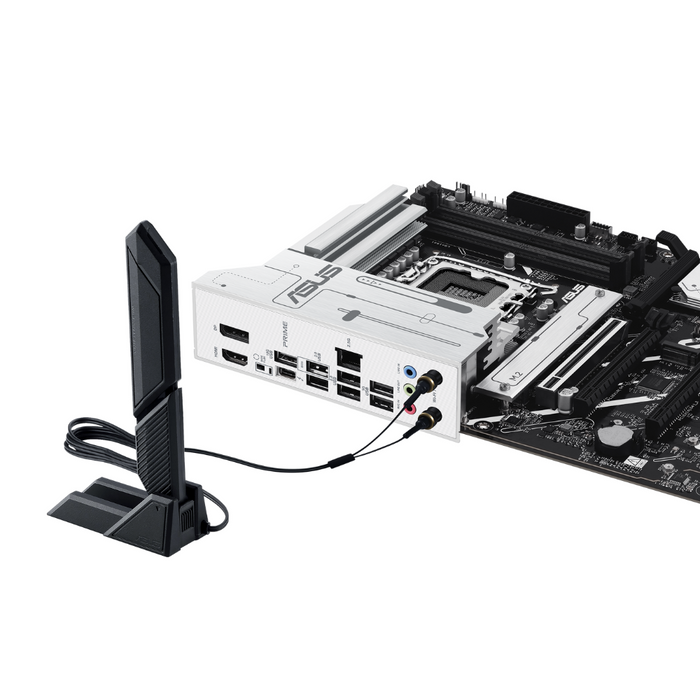

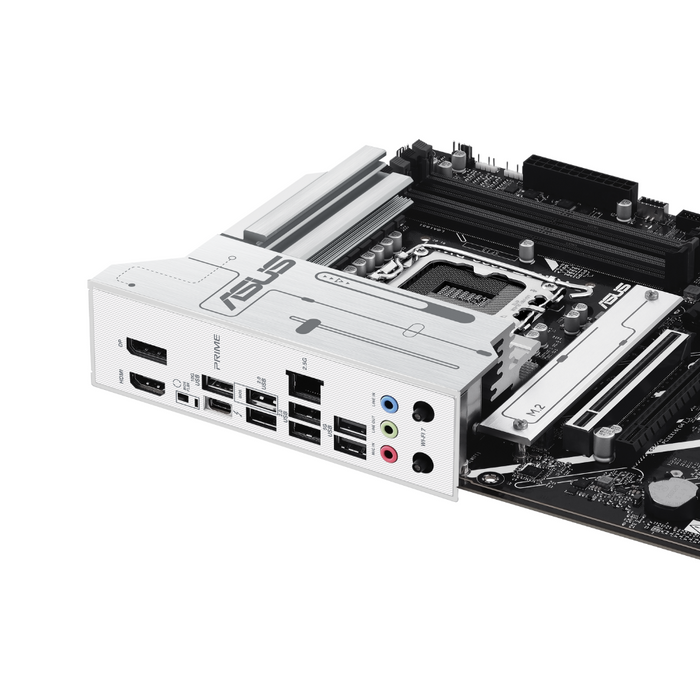

Back Panel I/O Ports

• 1 x Thunderbolt™ 4 USB Type-C® port

• 1 x USB 10Gbps port (1 x Type-A)

• 2 x USB 5Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMITM port

• 1 x Wi-Fi module

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 4 x 4-pin Chassis Fan headers
• Power Related:
  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V CPU Power connector

• Storage Related:
  • 3 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
• USB:
  • 1 x USB 10Gbps connector (supports USB Type-C®)

  • 2 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous:

  • 3 x Addressable Gen2 headers

  • 1 x Aura RGB header

  • 1 x Clear CMOS header

  • 1 x Chassis Intrusion header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1pin)

  • 1 x 10-1 pin Front Panel System header

  • 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS 5X PROTECTION III
  • DIGI+ VRM

  • LANGuard
  • Overvoltage protection
  • SafeSlot
  • Stainless-steel back I/O
• ASUS Q-Design
  • M.2 Q-Latch

  • PCIe Slot Q-Release

  • Q-Antenna
  • Q-Dashboard
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution

  • M.2 heatsink

  • VRM heatsink design
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • ProCool
  • Pre-mounted I/O shield
• Aura Sync

  • Addressable Gen2 headers
  • Aura RGB header


Software Features

• ASUS Exclusive Software
• Armoury Crate

  • Aura Creator

  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • Power Saving

• ASUS AI Advisor

• ASUS DriverHub
• ASUS GlideX
• TurboV Core

• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey
• NPU Boost (Intel K-series Processors only)


BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

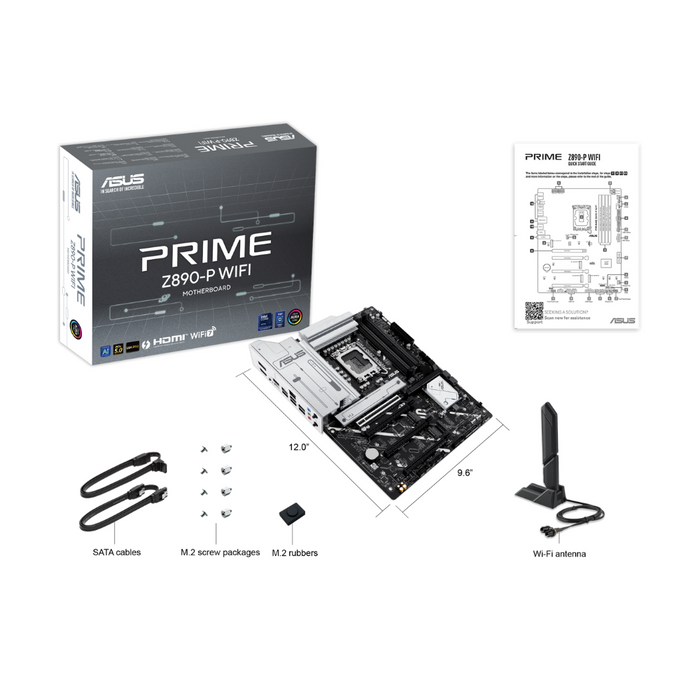

Accessories

• Cables:
  • 2 x SATA 6Gb/s cables
• Miscellaneous:
  • 1 x ASUS WiFi Q-Antenna

  • 1 x M.2 rubber package

  • 2 x Screw packages for M.2 SSD
• Documentation
  • 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
