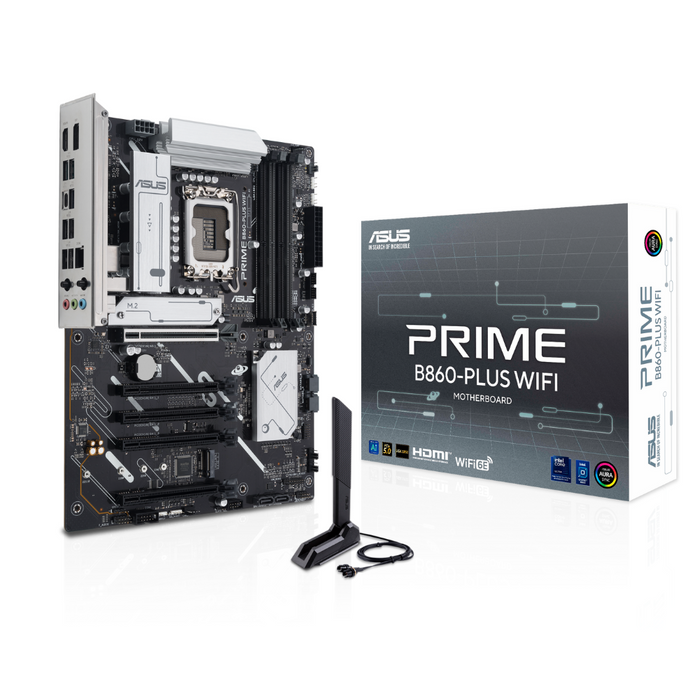

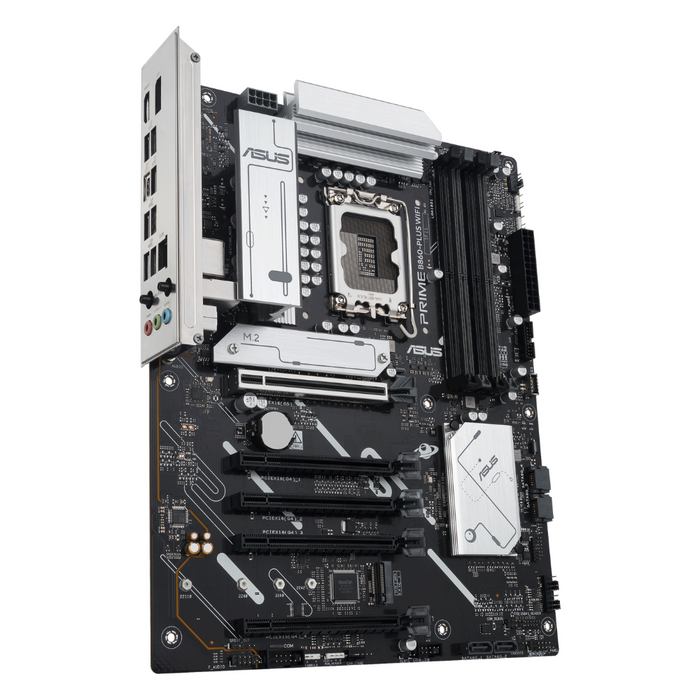

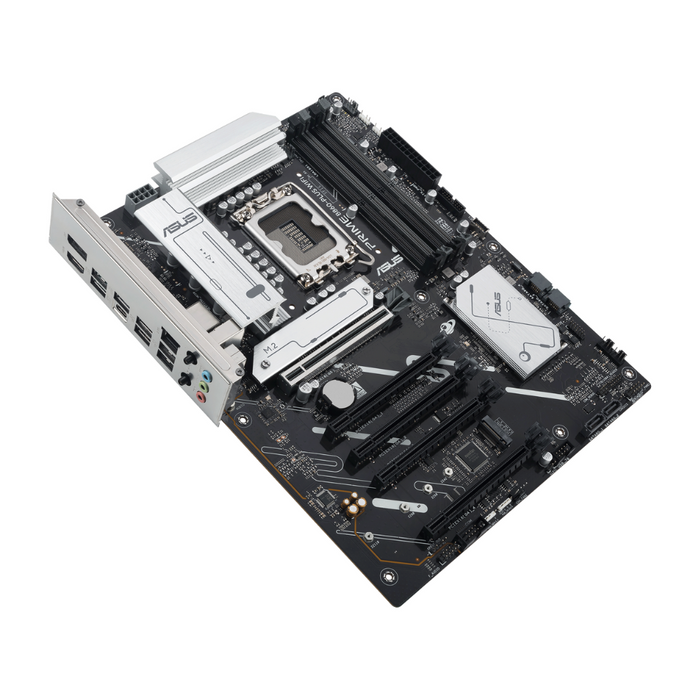

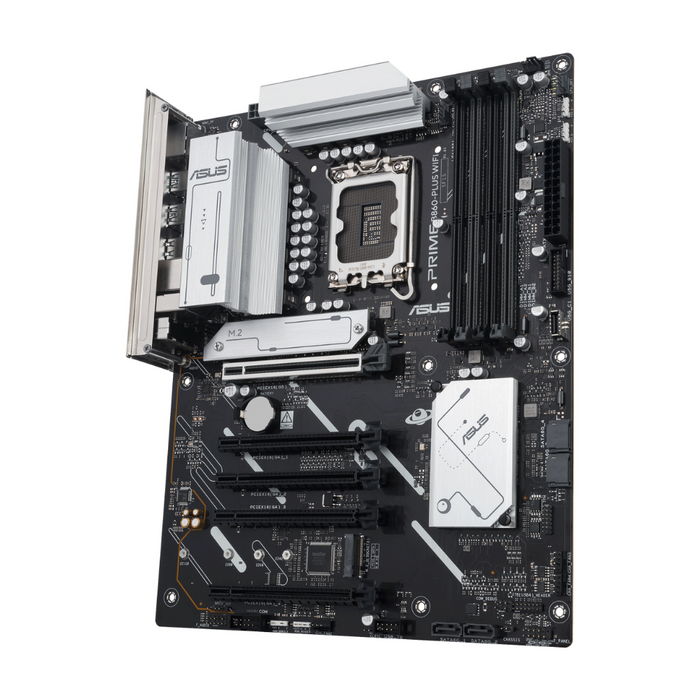

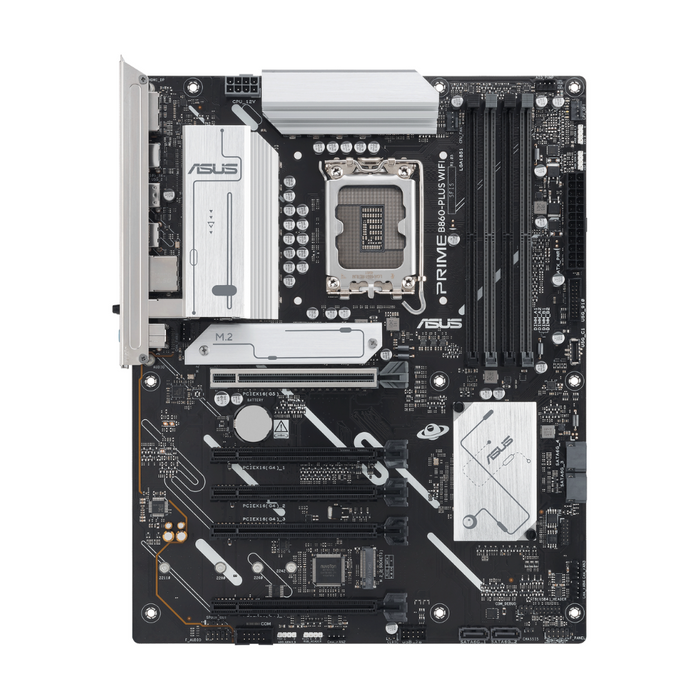

Asus Motherboard PRIME B860-PLUS WiFi

Specifications:

• Product Number: 90MB1K50-M0EAY0
• Model: PRIME B860-PLUS WIFI


CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® B860 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

• 1 x DisplayPort
• 1 x HDMI™ port

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)
  • 1 x PCIe 5.0 x16 slot (PCIEX16(G5))
• Intel® B860 Chipset
  • 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
  • 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel® Core™ Ultra Processors (Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
• Intel®B860 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
  • 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3

USB

• Rear USB (Total 8 ports):
  • 1 x USB 20Gbps port (1 x USB Type-C®)
  • 2 x USB 10Gbps port (1 x Type-A )
  • 1 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports):
  • 1 x USB 10Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers

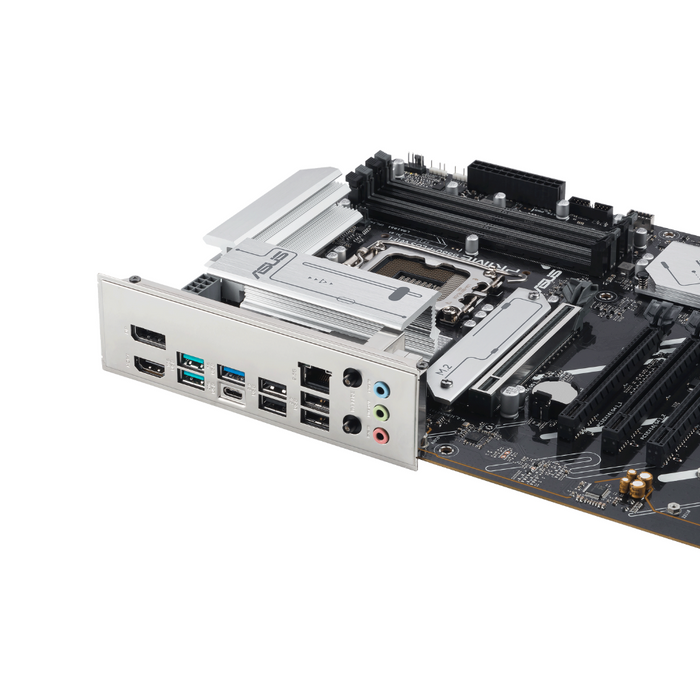

Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C®)
• 2 x USB 10Gbps port (1 x Type-A)
• 1 x USB 5Gbps ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A )
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks

Internal I/O Connectors

• Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power Related:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V CPU Power connector
• Storage Related:
  • 2 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 5Gbps connector (supports USB Type-C® )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thunderbolt™ (USB4®) header

Special Features

• ASUS 5X PROTECTION III
  • DIGI+ VRM (- Digital power design with DrMOS)

  • LANGuard
  • Overvoltage protection
  • SafeSlot
  • Stainless-steel back I/O
• ASUS Q-Design
  • Q-Antenna
  • Q-Dashboard
  • Q-DIMM
  • Q-LED Core
  • Q-Slot
• ASUS Thermal Solution
  • M.2 heatsink
  • VRM heatsink design
• ASUS EZ DIY
  • ProCool
  • Pre-mounted I/O shield
• Aura Sync
  • Aura RGB header
  • Addressable Gen2 headers

Software Features

• ASUS Exclusive Software
• Armoury Crate
  • Aura Creator
  • Aura Sync
  • Fan Xpert 2+
  • Power Saving
• ASUS AI Advisor

• ASUS DriverHub
• ASUS GlideX
• ASUS CPU-Z
• Adobe Creative Cloud (Free Trial)

• Norton 360 for Deluxe (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

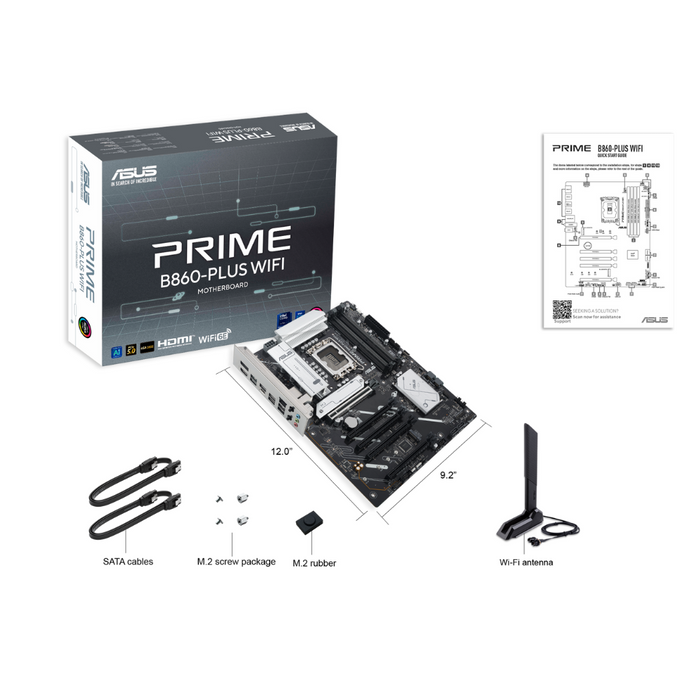

Accessories

• Cables:
  • 2 x SATA 6Gb/s cables
• Miscellaneous:
  • 1 x ASUS WiFi Q-Antenna
  • 1 x M.2 rubber package
  • 1 x Screw package for M.2 SSD
• Documentation
  • 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
