Asrock Motherboard Z890 Nova WiFi

Specifications:

• Product Number: 90-MXBPS0-A0UAYZ

Unique Feature

• Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5

  • USB4 Thunderbolt™ 4 Type-C Ports (40 Gb/s)

• Rock-Solid Durability
  • Server-Grade Low-Loss PCB

  • 20+1+2+1+1 Power Phase, 110A SPS for VCore with Enlarged Heatsink Armor

  • Memory OC Shield

  • Flexible Integrated I/O Shield
  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) for VCore
• Ultrafast Gaming
  • 5G LAN, Killer 2.5G LAN, 802.11be Wi-Fi 7 Module

  • ASRock Lightning Gaming Ports

• EZ Update

  • BIOS Flashback Button

  • ASRock Auto Driver Installer

CPU

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

• Supports Intel® Thermal Velocity Boost (TVB)

• Supports Intel® Adaptive Boost Technology (ABT)

• Integrated NPU for dedicated AI acceleration
• Chipset: Intel® Z890

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 9466+(OC)
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 256GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0x
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port

• Individual PCB Layers for R/L Audio Channel

• Nahimic Audio

LAN

• 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)

• 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)

  • Supports Killer LAN Software

Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 320MHz channel bandwidth with 6GHz frequency ban
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

Slots

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

• Chipset:

  • 1 x PCIe 4.0 x16 Slots (PCIE2 and PCIE3), support x4 mode

  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)


Storage

• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode

  • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
  • 1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

  • 1 x Hyper M.2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors
• RAID:
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices


USB

• CPU:
  • 2 x Thunderbolt™ 4 Type-C (Rear)

• Chipset:
  • 1 x USB 3.2 Gen2X2 Type-C (Front)

  • 4 x USB 3.2 Gen2 Type-A (Rear)

  • 8 x USB 3.2 Gen1 (4 Rear, 4 Front)

  • 6 x USB 2.0 (2 Rear, 4 Front)

Connector

• 3 x Thermistor Cable Headers

• 1 x SPI TPM Header

• 1 x Power LED and Speaker Header

• 1 x RGB LED Header

• 3 x Addressable LED Headers

• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)

• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)

• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

• 1 x Dr. Debug with LED

• 1 x Power Button with LED

• 1 x Reset Button with LED

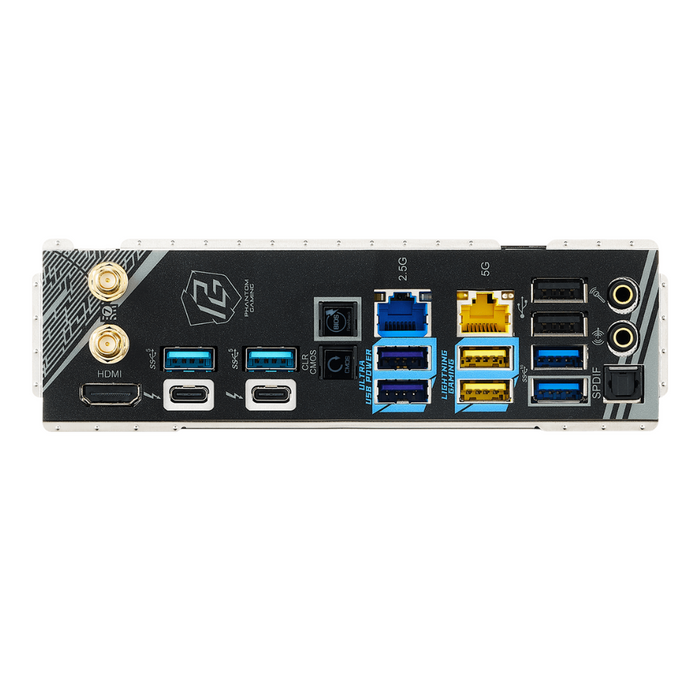

Rear Panel I/O

• 2 x Antenna Ports

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)

• 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

• 4 x USB 3.2 Gen1 Ports

• 2 x USB 2.0 Ports

• 2 x RJ-45 LAN Ports

• 1 x Clear CMOS Button

• 1 x BIOS Flashback Button

• 1 x Line Out Jack (Gold Audio Jack)

• 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

• Software
  • ASRock Motherboard Utility (Phantom Gaming Tuning)

  • ASRock Polychrome SYNC

  • Killer Control Center
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favourites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

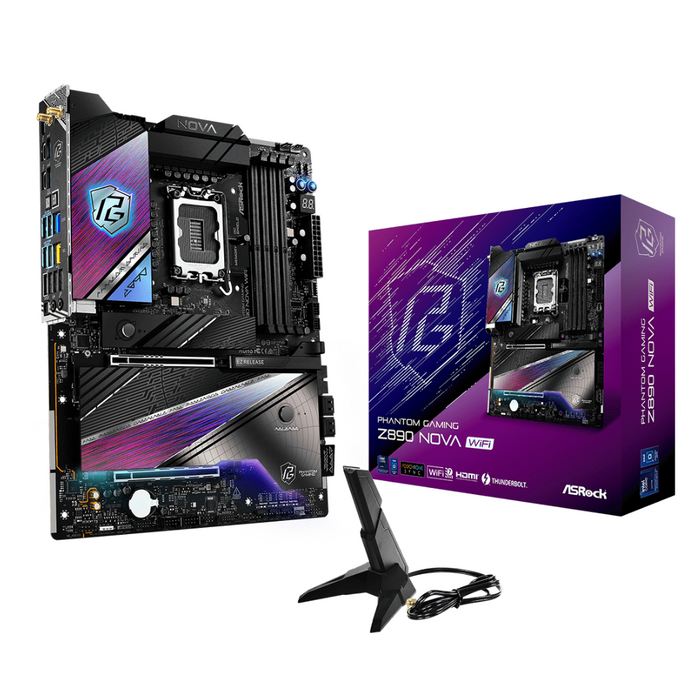

Accessories

• 4 x SATA Data Cables

• 1 x M.2 Expansion Card

• 1 x ASRock WiFi 2.4/5/6 GHz Antenna

• 1 x ARGB Splitter Cable

• 3 x Thermistor Cables

• 1 x Screw for M.2 Socket

• 1 x Standoff for M.2 Socket

Form Factor

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

• 8 Layer PCB

• 2oz Copper PCB

OS

• Microsoft Windows® 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
• CEC Tier II ready
