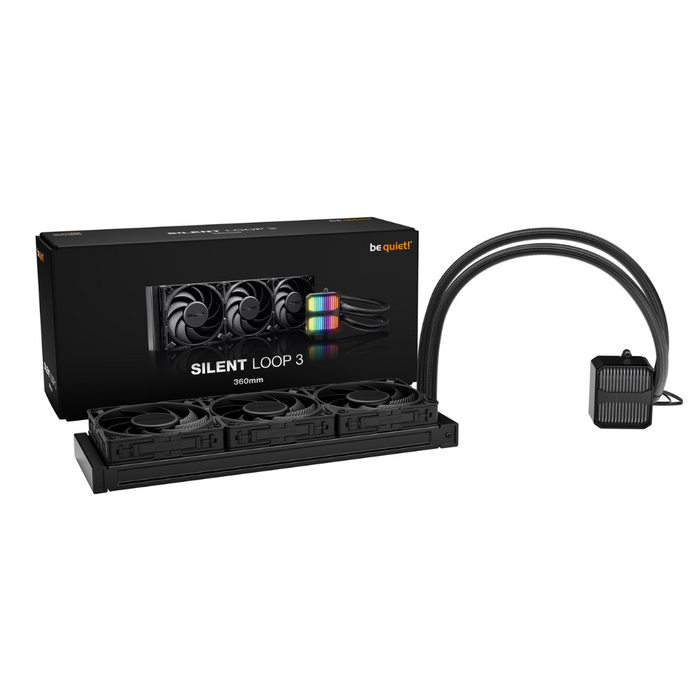

Be Quiet Liquid Cooler Silent Loop 3 360

Specifications:

• Product Number: BW025

Performance

• Suitable location: Processor

• Type: All-in-one liquid cooler

• Fan diameter: 12 cm

• Supported processor sockets:
  • Intel LGA1851
  • LGA 1150 (Socket H3)

  • LGA 1151 (Socket H4)
  • LGA 1155 (Socket H2)

  • LGA 1200 (Socket H5)

  • LGA 1700

  • Socket AM4

  • Socket AM5

  • Socket TR4

  • Socket TR5
• Noise level (low speed): 19.8 dB

• Noise level (high speed): 38.8 dB

• Maximum airflow: 76.7 cfm

• Airflow: 130.3 m³/h

• Maximum air pressure: 3.96 mmH2O

• Pulse-width modulation (PWM) support: Yes

• Bearing type: Fluid Dynamic Bearing (FDB)
• Pump connector: 4-pin

• Quantity per pack: 1 pc(s)

• Pump motor speed: 3500 RPM

• Pump motor speed (min): 1700 RPM

• Pump motor speed (max): 3500 RPM

• Fan speed (max): 2500 RPM

• Fan's mean time to failure (MTTF): 300000 h

Design

• Product colour: Black

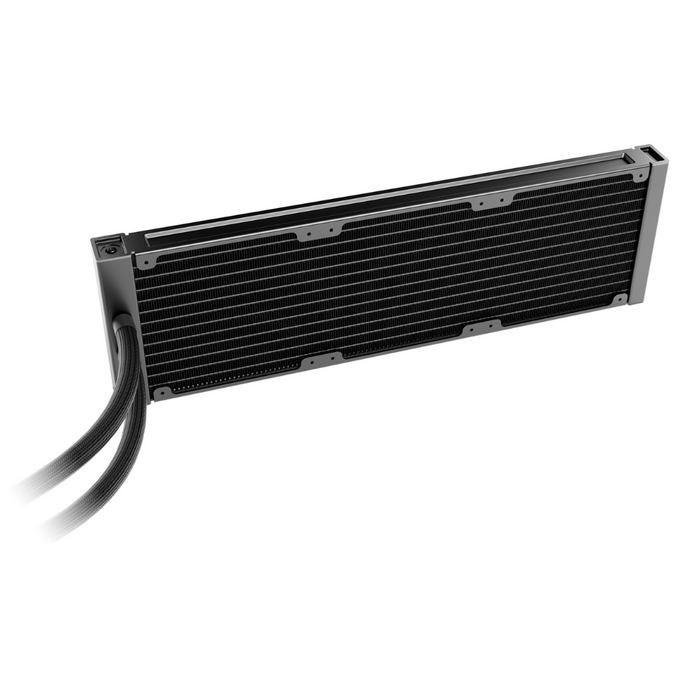

• Radiator material: Aluminum

• Base plate material: Copper

• Number of fans: 2 fan(s)

• Illumination LED: Yes

• Illumination colour: Multi

• LED connector type: 3-pin

• Fan connector: 4-pin

Power

• Fan power consumption: 3.6 W

• LED voltage: 5 V

• Fan voltage: 12 V

• Fan current: 0.3 A

Weight & dimensions

• Width: 120 mm

• Radiator width: 12 cm

• Radiator depth: 39.7 cm

• Radiator height: 2.7 cm

• Depth: 52 mm

• Tube length: 40 cm

• Waterblock width: 8 cm

• Waterblock depth: 5.6 cm

• Waterblock height: 9.35 cm

• Height: 397 mm

• Weight: 1.77 kg

• Fan dimensions:
  • Width: 120
  • Depth: 120
  • Height: 25 mm

• Cable length: 0.5 m

Packaging data

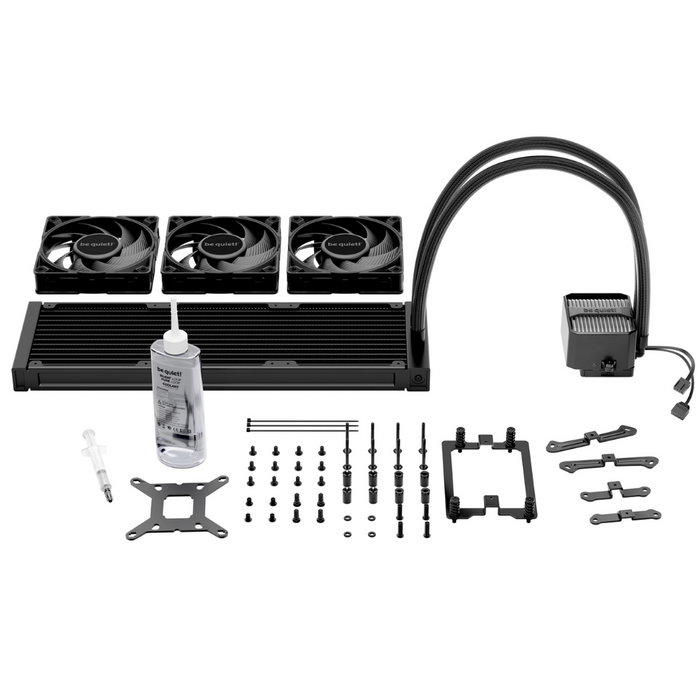

• Mounting kit: Yes

• Screws included: Yes

• CPU bracket(s): Yes

Other features

• Thermal grease: Yes
