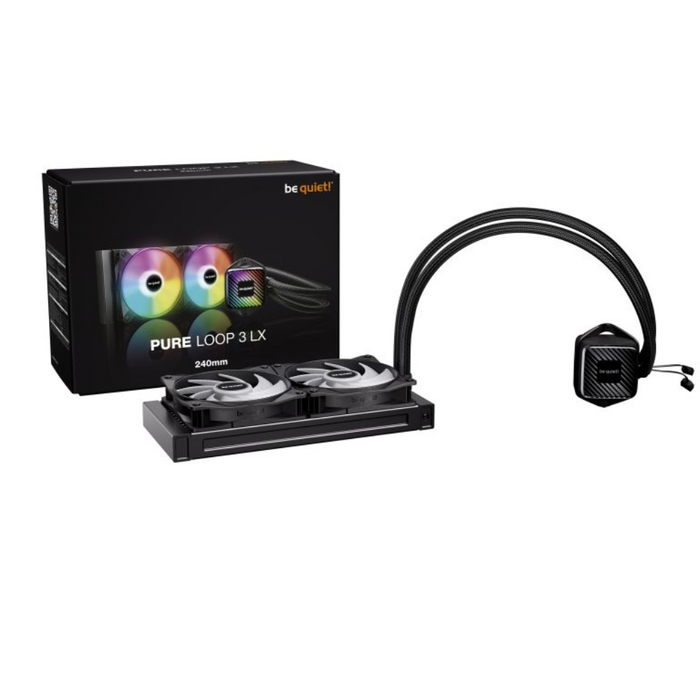

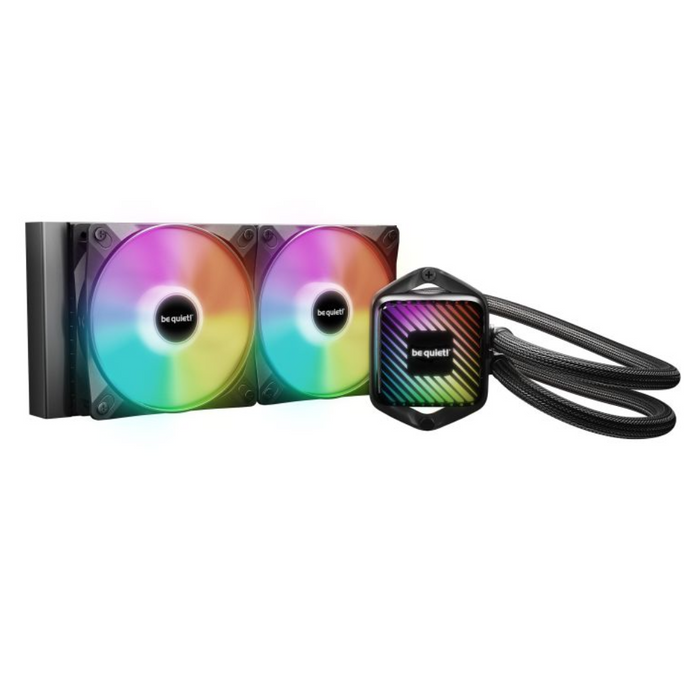

Be Quiet Liquid Cooler Pure Loop 3 LX 240

Specifications:

• Product Number: BW030EU
• Model:  Pure Loop 3 LX 240mm

General

• Color: Black
• Dimensions radiator, incl. fan:
  • Height: 277mm
  • Width: 120mm
  • Depth: 52mm
• Dimensions cooling block:

  • Height: 68.5mm
  • Width: 93.4mm
  • Depth: 48.7mm
• Total weight (kg): 1.050
• Socket compatibility Intel: 1851 / 1700 / 1200 / 1151 / 1150 / 1155
• Socket compatibility AMD: AM5 / AM4
• Noise level (dB(A)) at 50% / 75% /100% rpm: 15.4 / 27.3 / 35.2
• Number of fans: 2
• Lighting connector: Yes
• Tube length (mm): 400
• Refill port: Yes

Pump specifications

• Pump speed (rpm): 5500

• Pump adjustable (rpm): 3000 - 5500

• Pump connector: 4-pin PWM

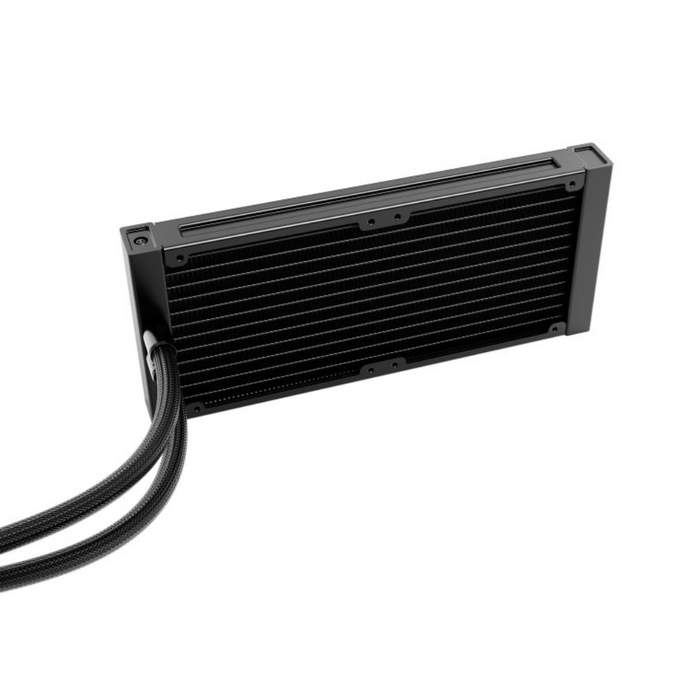

Radiator specifications

• Dimensions:
  • Length: 277mm
  • Width: 120mm
  • Height: 27mm
• Radiator material / finish: Aluminum

• Base material / finish: copper

Fan specifications

• Fan model: Light Wings LX 120mm PWM high-speed

• Fan dimensions (mm): 120 x 25 x 120

• Speed at 100% PWM (rpm): 2100

• Airflow at 100% PWM / 12V (CFM / m3/h): 61.8 / 105.1

• Air Pressure at 100% PWM / 12V (mm H2O): 2.51

• Bearing technology: Rifle

• Motor technology: 4-pole

• Rated Voltage (V): 12

• Input current (A): 0.17

• Safety current (A): 0.45

• Input power (W): 5.4

• Connector: Proprietary

• Cable length (mm): 20 / 100mm + daisy chain

• Lifespan (h / 25°C): 60,000

Accessories

• Thermal grease (Type): Included

• Mounting set: Intel, AMD

• Adapter cables: PWM/ARGB extension

• User Manual
