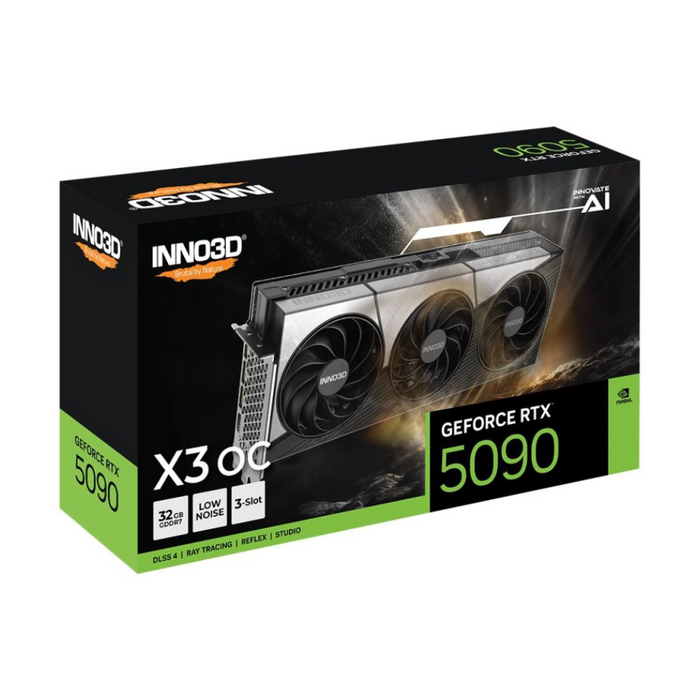

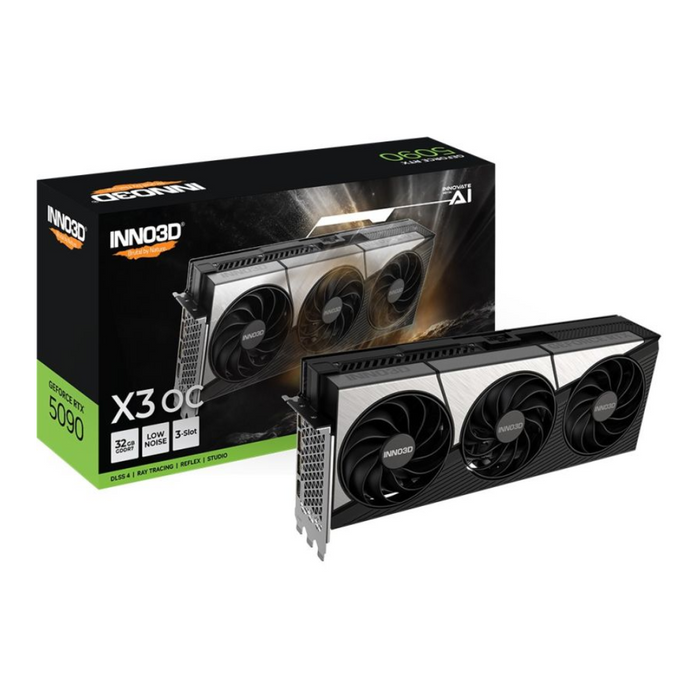

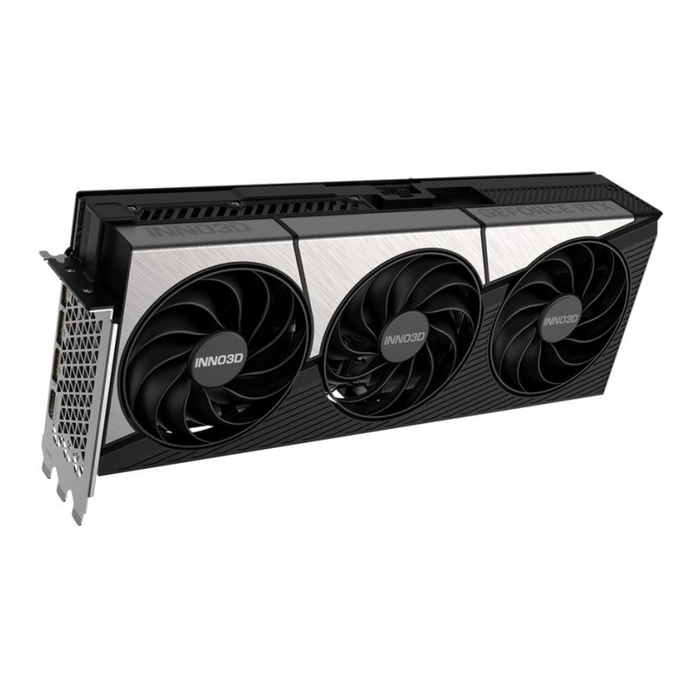

INNO3D GeForce RTX 5090 X3

Specifications:

• Product Number: N50903-32D7X-17593928


GPU Engine Specs

• CUDA Cores: 21760

• Boost Clock: 2407MHz

• Base Clock: 2017MHz

Thermal and Power Spec

• Minimum System Power Requirement: 1000W

• Supplementary Power Connectors: 4x PCIe 8-pin cables (adapter in box) OR 1x 600 W PCIe Gen 5 cable

Memory Specs

• Memory Clock: 28Gbps

• Standard Memory Config: 32GB

• Memory Interface: GDDR7

• Memory Interface Width: 512-bit
• Memory Bandwidth (GB/sec): 1792 GB/sec

Feature Support

• Real-Time Ray Tracing: Yes

• Ray Tracing Cores: 4th Generation, 318 TFLOPS

• Tensor Cores: 5th Generation, 3352 AI TOPS
• NVIDIA Architecture: Blackwell

• Microsoft DirectX: 12 Ultimate

• NVIDIA DLSS: 4

• NVIDIA Ansel: Yes
• NVIDIA FreeStyle: Yes

• Bus Support: PCI Express Gen 5

• NVIDIA ShadowPlay: Yes

• OS Certification: Windows 11, Linux, FreeBSDx86

• NVIDIA Highlights: Yes

• NVIDIA G-SYNC-Ready: Yes

• Game Ready Drivers: Yes

• NVIDIA Studio Drivers: Yes

• NVIDIA GPU Boost: Yes

• Vulkan API: 1.4

• OpenGL: 4.6

• NVIDIA Encoder: 3x Ninth Generation

• NVIDIA Decoder: 2x Sixth Generation

Accessories

• Graphics Card Stand: Yes (embedded with cooler)

Graphics Card Dimensions

• Length: 333mm

• Height: 137mm

• Width: 60mm

Display Support

• Multi Monitor: up to 4

• Maxmium Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC

• HDCP: 2.3

• Standard Display Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b
