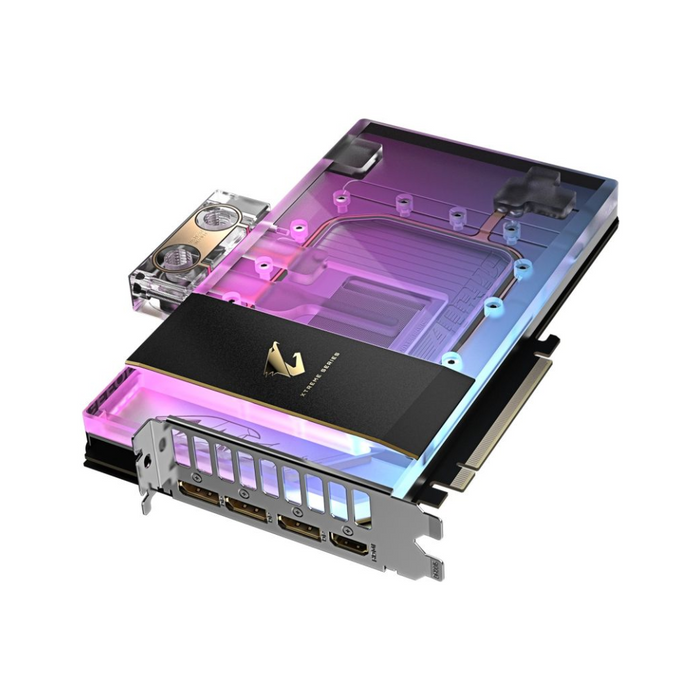

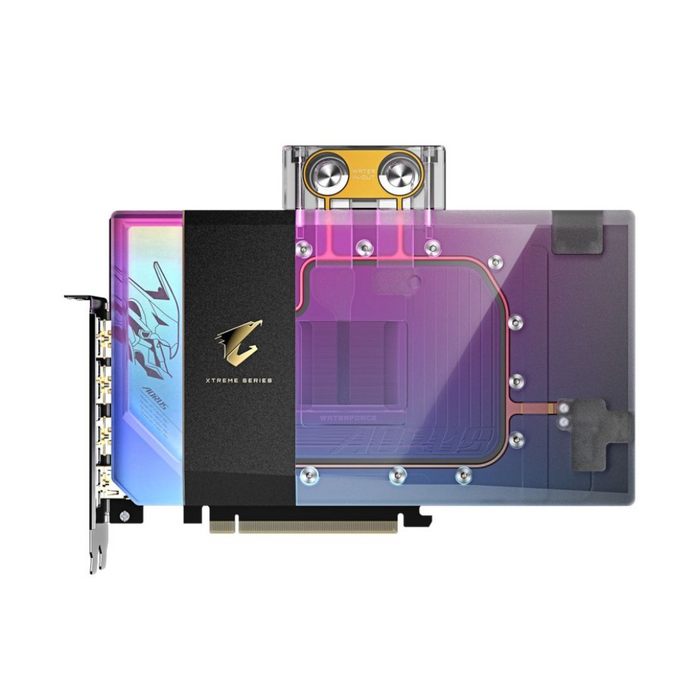

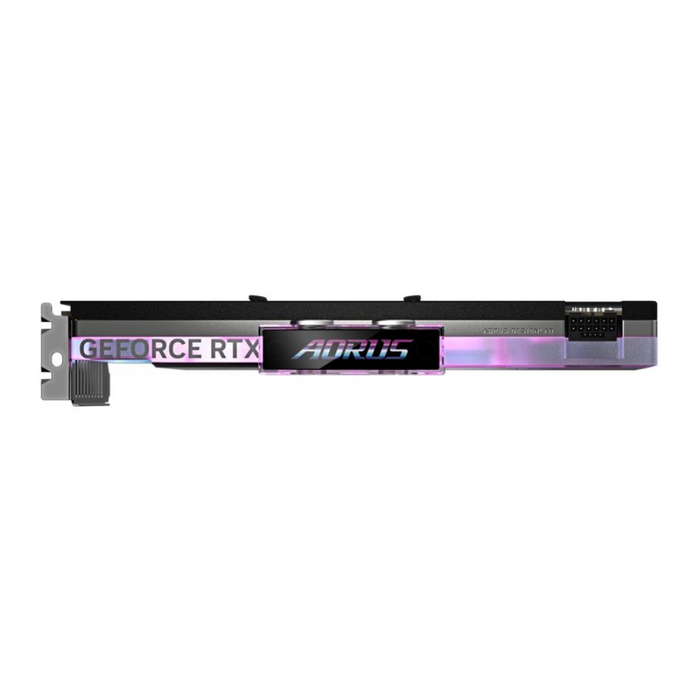

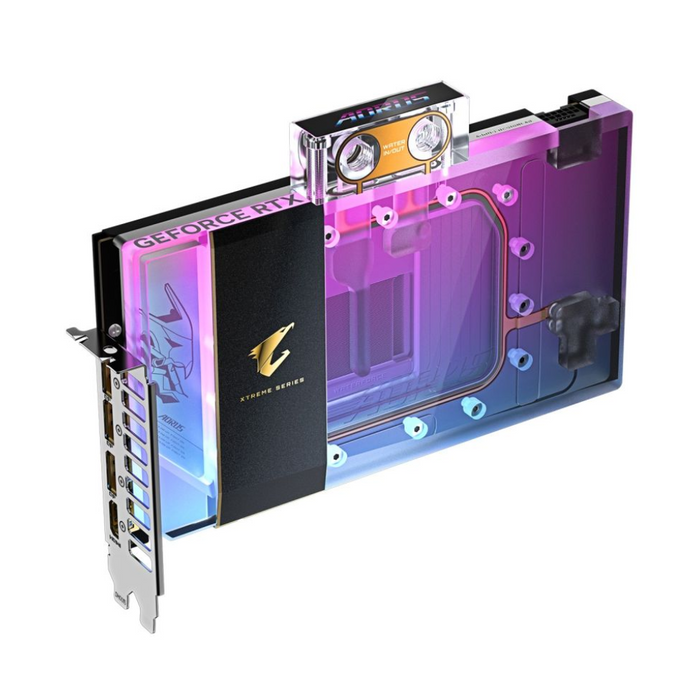

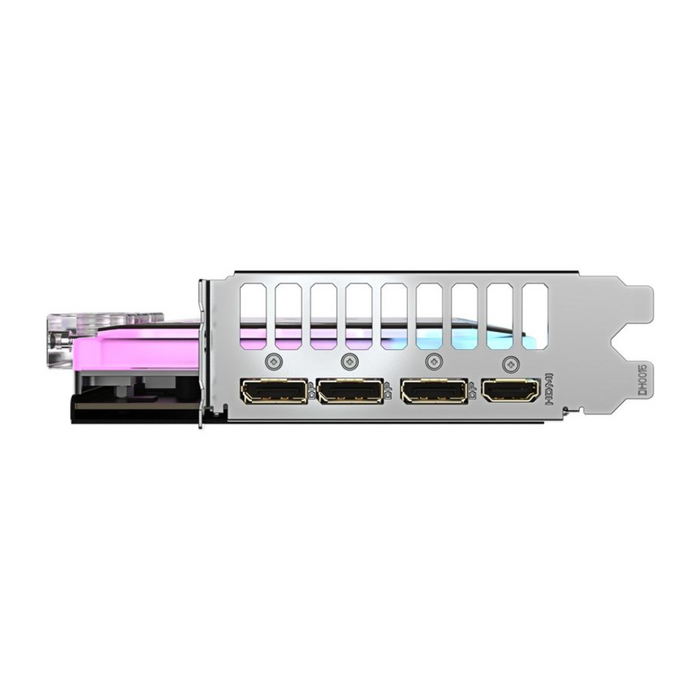

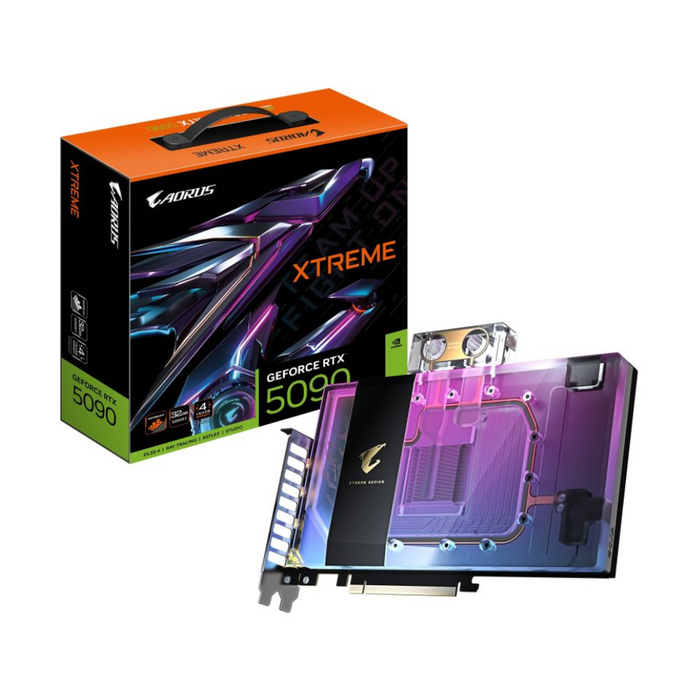

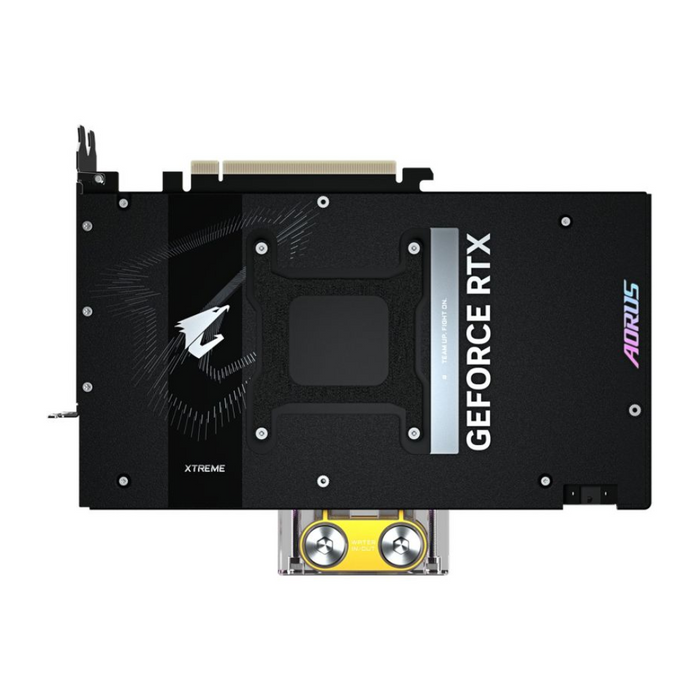

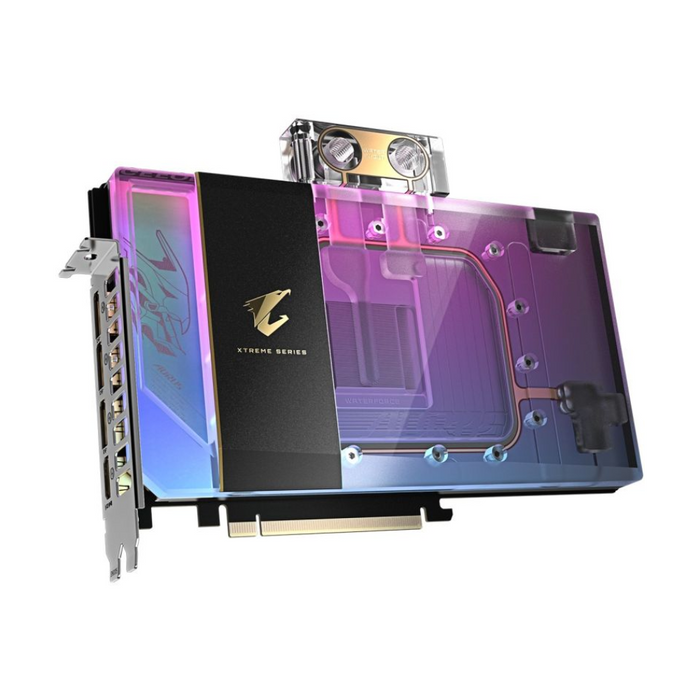

Gigabyte AORUS XTREME WATERFORCE GeForce RTX 5090 32GB

Specifications:

• Product Number: GV-N5090AORUSX WB-32GD

Processor

• CUDA: Yes
• CUDA cores: 21760

• Graphics processor family: NVIDIA

• GPU: GeForce RTX 5090

• Processor clock frequency: 2655 MHz

• Maximum resolution: 7680 x 4320 pixels

• Parallel processing technology: Not supported

• Maximum displays per video card: 4

Memory

• Separate graphics adapter memory: 32 GB

• Graphics card memory type: GDDR7

• Width of the memory interface: 512 bits

• Memory clock frequency: 28000 MHz

• Data transfer rate: 28 Gbps

Connections and interfaces

• Interface: PCI Express x16 5.0

• Number of HDMI ports: 1

• HDMI version: 2.1b

• Number of DisplayPort connections: 3

• DisplayPort version: 2.1a

Services

• Integrated TV tuner: No

• DirectX version: 12.0

• OpenGL version: 4.6

• Virtual Reality (VR) ready: Yes

• Dual-Link DVI: No

• NVIDIA G-SYNC: Yes

• Warranty period: 4 year(s)

Design

• Cooling: Active

• Cooling technology: Gigabyte WATERFORCE

• Form factor: Full height/half length (FH/HL)

• Number of slots: 2

• Lighting: Yes
• Colors of lighting: Multi

• Product color: Black, Transparent

Energy

• Min. system power supply: 1000 W

• Additional power connections: 1x 16-pin

Weight and dimensions

• Weight: 3 kg

• Length: 234 mm

• Depth: 29 mm

• Height: 172 mm

Packaging data

• Packaging width: 340 mm

• Packaging depth: 334 mm

• Packaging height: 104 mm

• Package weight: 4.5 kg

• Quick Installation Guide: Yes
