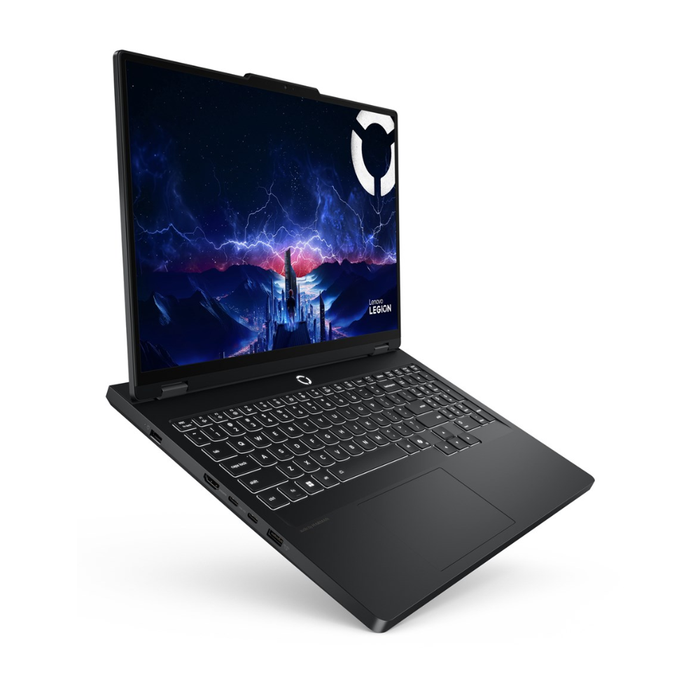

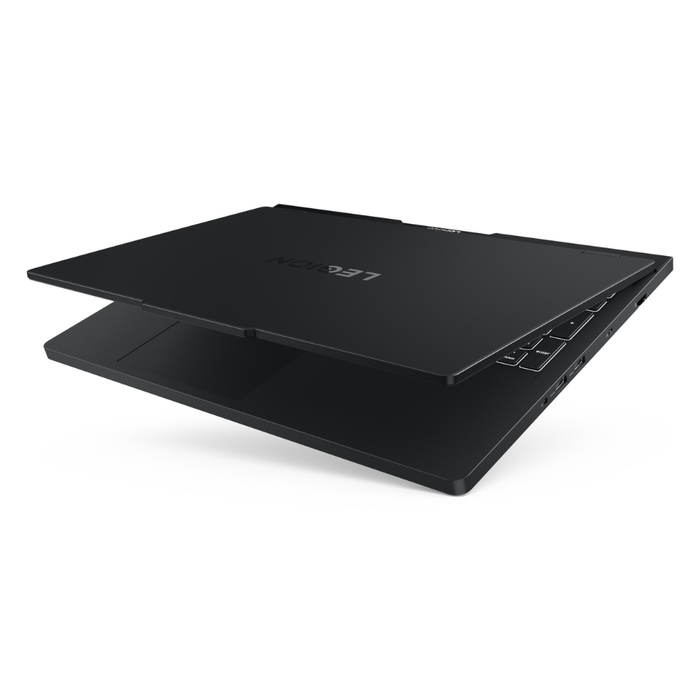

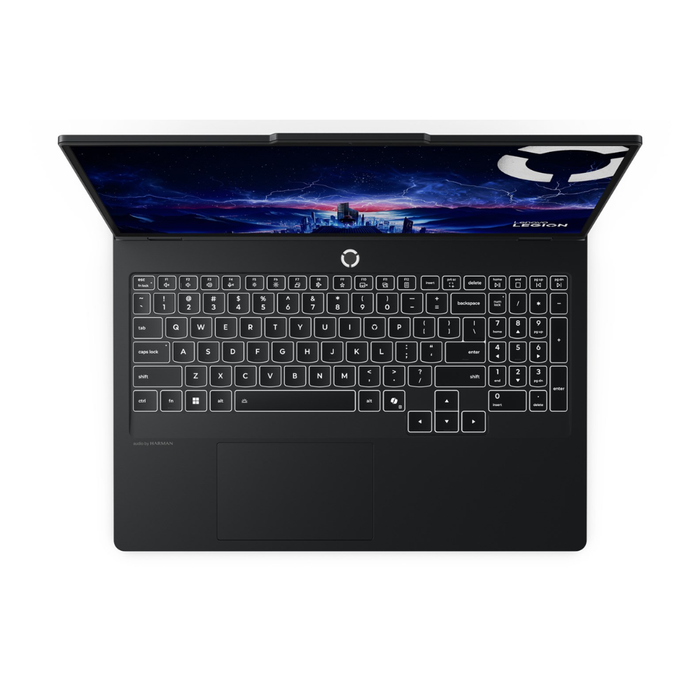

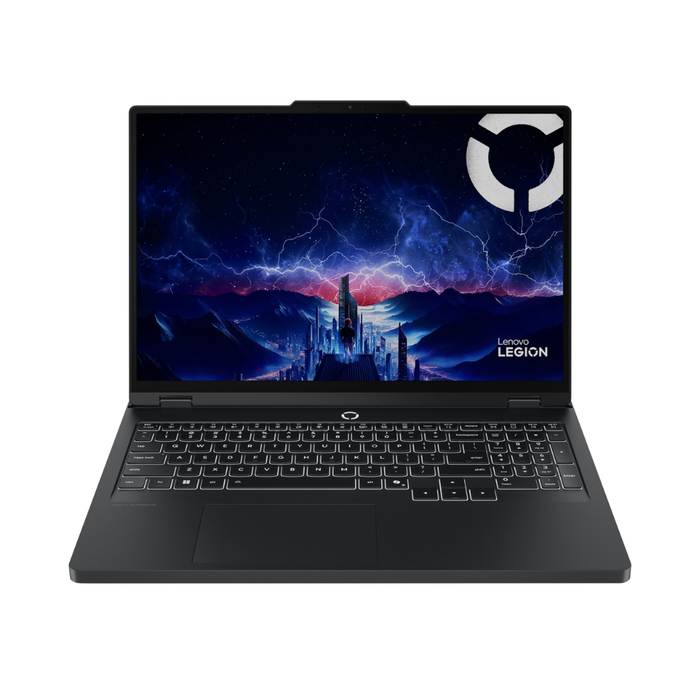

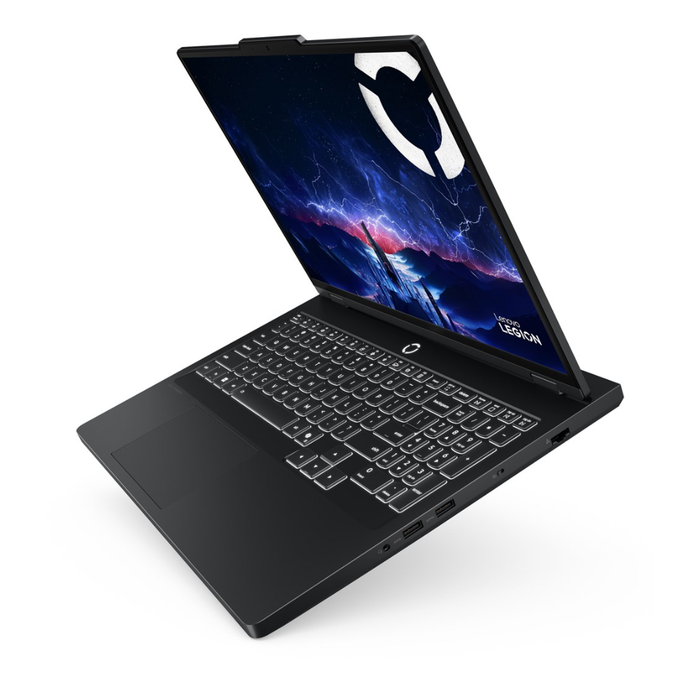

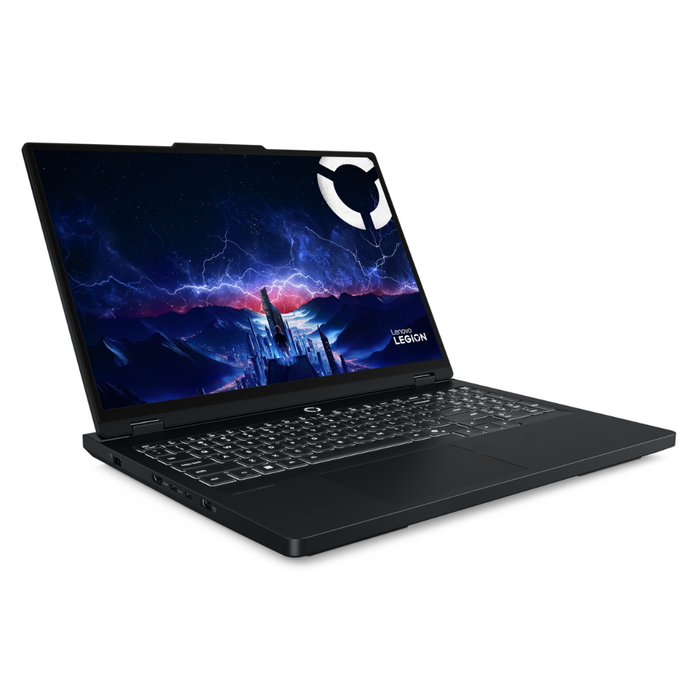

Lenovo Legion Pro 5 Gaming Laptop/ Ultra 7 255HX/ 32GB/ 1TB/ RTX 5070

Specifications:

• Product Number: 83F3003CPB

Design

• Colour name: Eclipse black

• Product type: Laptop

• Product colour: Black

• Housing material: Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Display

• Display diagonal: 40.6 cm (16")

• Display resolution: 2560 x 1600 pixels

• Touchscreen: No

• HD type: WQXGA

• Panel type: OLED

• LED backlight: Yes

• Native aspect ratio: 16:10

• Display surface: Gloss

• Display brightness: 500 cd/m²

• RGB colour space: DCI-P3

• Colour gamut: 100%

• Maximum refresh rate: 165Hz

• High Dynamic Range (HDR) supported: Yes

• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000/ Dolby Vision

Processor

• Processor manufacturer: Intel

• Processor family: Intel Core Ultra 7

• Processor generation: Intel Core Ultra (Series 2)

• Processor model: 255HX

• Processor cores: 20

• Processor threads: 20

• Processor boost frequency: 5.2 GHz

• Performance cores: 8

• Efficient cores: 12

• Performance-core Max Turbo Frequency: 5.2 GHz

• Efficient-core Max Turbo Frequency: 4.5 GHz

• Performance-core base frequency: 2.4 GHz

• Efficient-core base frequency: 1.8 GHz

• Processor cache:  30 MB

• Processor base power:  55 W

• Maximum turbo power: 160 W

Memory

• Internal memory: 32 GB

• Internal memory type: DDR5-SDRAM

• Memory clock speed: 5600 MHz

• Memory form factor: SO-DIMM

• Memory layout (slots x size): 2 x 16 GB

• Memory slots: 2x SO-DIMM

• Maximum internal memory: 32 GB

Storage

• Total storage capacity: 1 TB

• Storage media: SSD

• Total SSDs capacity: 1 TB

• Number of SSDs installed:  1

• SSD capacity: 1 TB

• SSD interface: PCI Express 4.0

• NVMe: Yes

• SSD form factor: M.2

• Optical drive type: No

• Card reader integrated:No

Graphics

• Discrete GPU manufacturer: NVIDIA

• Discrete graphics card model: NVIDIA GeForce RTX 5070

• Discrete graphics card memory:  8 GB

• Discrete graphics memory type: GDDR7

• On-board graphics card: Yes

• On-board GPU manufacturer: Intel

• Discrete graphics card: Yes

• On-board graphics card family: Intel® Graphics

• On-board graphics card model: Intel® Graphics

 Audio

• Audio chip: Realtek ALC3306

• Number of built-in speakers:  2

• Speaker power: 2 W

• Built-in microphone: Yes

• Number of microphones: 2

Camera

• Front camera resolution (numeric): 5 MP

Network

• Top Wi-Fi standard:  Wi-Fi 7 (802.11be)

• Wi-Fi standards: Wi-Fi 7 (802.11be)

• Mobile network connection: No

• Antenna type: 2x2

• Ethernet LAN: Yes

• Ethernet LAN data rates:100/1000

• Bluetooth: Yes

• Bluetooth version: 5.4

• WWAN: Not installed

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2

• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1

• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1

• Ethernet LAN (RJ-45) ports:  1

• HDMI ports quantity: 1

• HDMI version: 2.1

• Thunderbolt 4 ports quantity:  1

• Combo headphone/mic port: Yes

• USB Sleep-and-Charge: Yes

Performance

• Motherboard chipset:  Intel HM870

Keyboard

• Pointing device: Touchpad

• Numeric keypad: Yes

• Keyboard backlit: Yes

• Keyboard backlit colour: RGB

Battery

• Battery capacity: 80 Wh

Software

• Operating system installed: Windows 11 Pro

Power

• AC adapter power:  245 W

• AC adapter frequency: 50/60 Hz

• AC adapter input voltage: 100 - 240 V

• USB Type-C charging port: Yes

• USB Power Delivery (USB PD): Yes

Security

• Fingerprint reader: No

• Trusted Platform Module (TPM): Yes

• Trusted Platform Module (TPM) version: 2.0


Weight & dimensions

• Width: 364.4 mm

• Depth: 268.1 mm

• Height (front): 2.17 cm

• Height (rear): 2.6 cm

• Weight: 2.43 kg

Warranty

• 2 years
