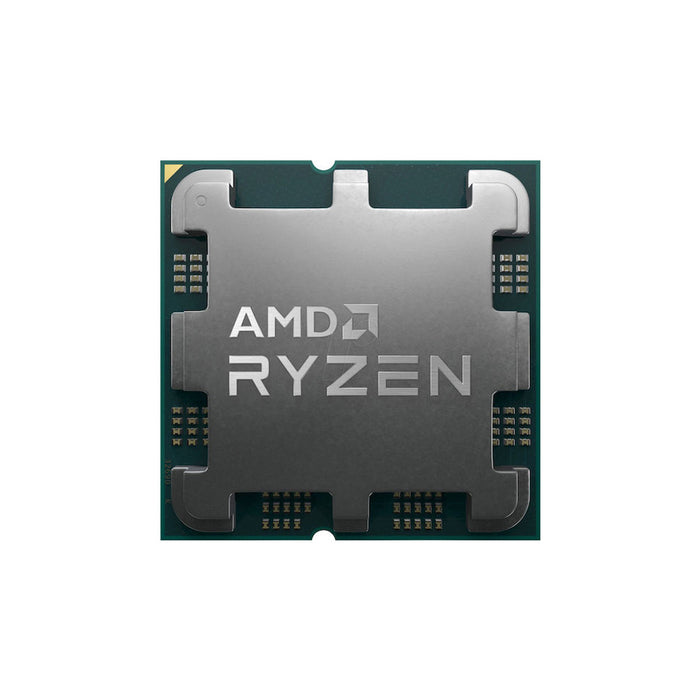

AMD CPU Ryzen 5 7600X3D Tray

Specifications

• Name: AMD Ryzen™ 5 7600X3D
• CPU Cores: 6
• Multithreading (SMT): Yes
• Threads: 12
• Max. Boost Clock: Up to 4.7 GHz
• Base Clock : 4.1 GHz
• L1 Cache: 384 KB
• L2 Cache: 6 MB
• L3 Cache: 96 MB
• Default TDP: 65W
• Processor Technology for CPU Cores: TSMC 5nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• CPU Compute Die (CCD) Size: 71mm²
• I/O Die (IOD) Size: 122mm²

• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5

• CPU Boost Technology: Precision Boost 2

• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 89°C


Connectivity

• Native USB 3.2 Gen 2 (10Gbps) Ports: 4

• Native USB 3.2 Gen 1 (5Gbps) Ports: 0

• Native USB 2.0 (480Mbps) Ports: 1

• Native SATA Ports: 0

• PCI Express® Version: PCIe® 5.0

• Native PCIe® Lanes (Total/Usable): 28 , 24
• NVMe Support: Boot , RAID0 , RAID1 , RAID10

• System Memory Type: DDR5

• Memory Channels: 2

• Max. Memory: 128 GB

• System Memory Subtype: UDIMM

• Max Memory Speed:

  • 2x1R DDR5-5200

  • 2x2R DDR5-5200

  • 4x1R DDR5-3600

  • 4x2R DDR5-3600

Graphics Capabilities

• Graphics Model: AMD Radeon™ Graphics

• Graphics Core Count: 2

• Graphics Frequency: 2200 MHz

• USB Type-C® DisplayPort™ Alternate Mode: Yes

Key Features

• Supported Technologies: AMD EXPO™ Technology , AMD Ryzen™ Technologies
