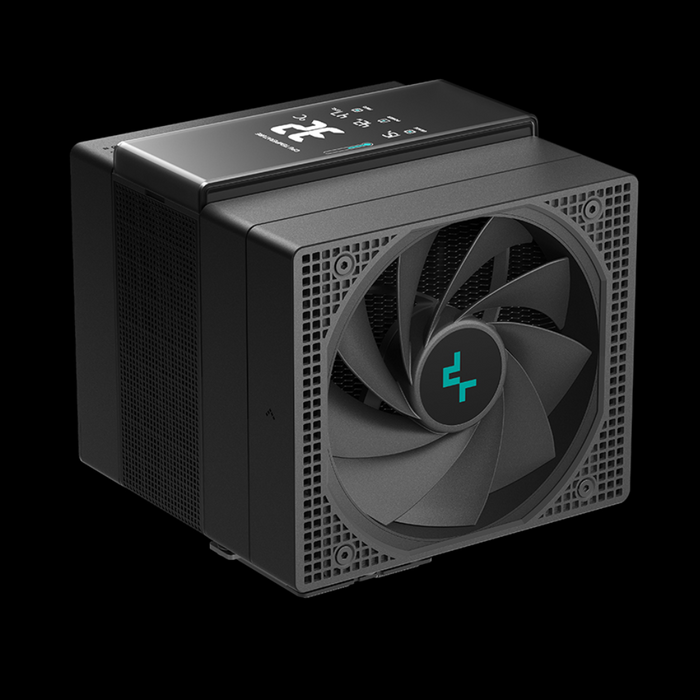

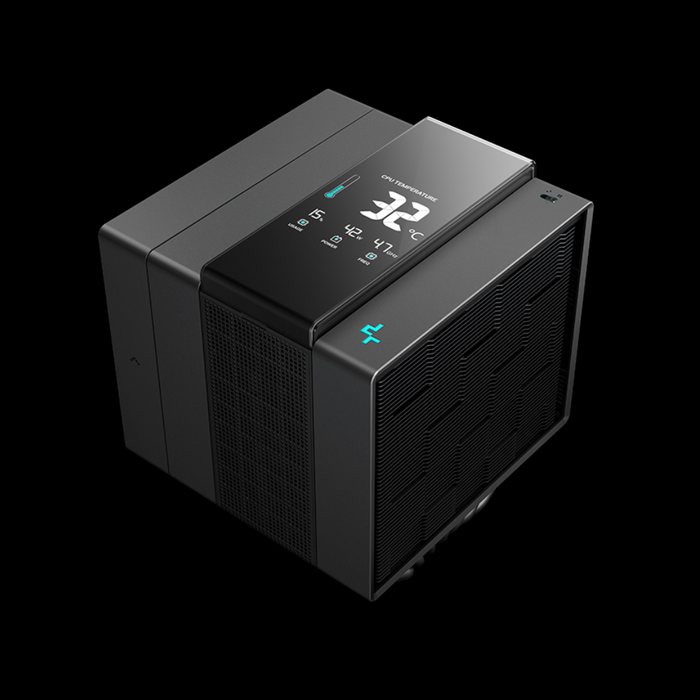

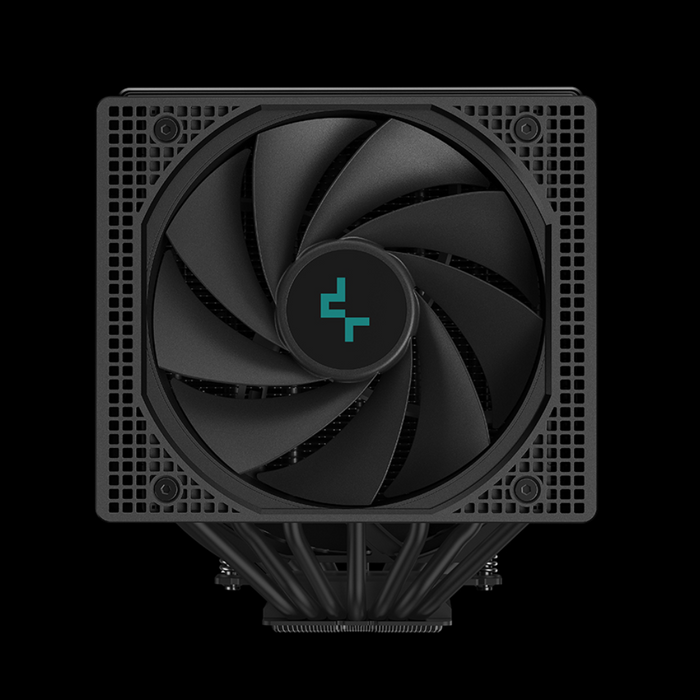

DeepCool CPU Cooler Assassin IV VC Vision

Specifications:

• Product Number: R-ASN4-BKNVMD-G

Services

• Recommended placement: processor

• Type: Air cooling

• Fan diameter: 120/140 mm

• Supported processor slots
  The sockets (plugs) for processors that are supported (can be used) by the device.
  LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066

• Rotation speed (min.): 500 RPM

• Rotation speed (max.): 1800 RPM

• Maximum airflow: 61.25 cfm

• Maximum air pressure: 3.76 mmH2O

• Fan 2 maximum airflow: 58.06 cfm

• Fan 2 maximum air pressure: 2.1 mmH2O

• Support for pulse width modulation: yes
• Bearing type: Fluid dynamic bearing (FDB)

• Fan noise level (max.): 29.3 dB

• Quantity per pack: 1 piece(s)

Design

• Product color: Black

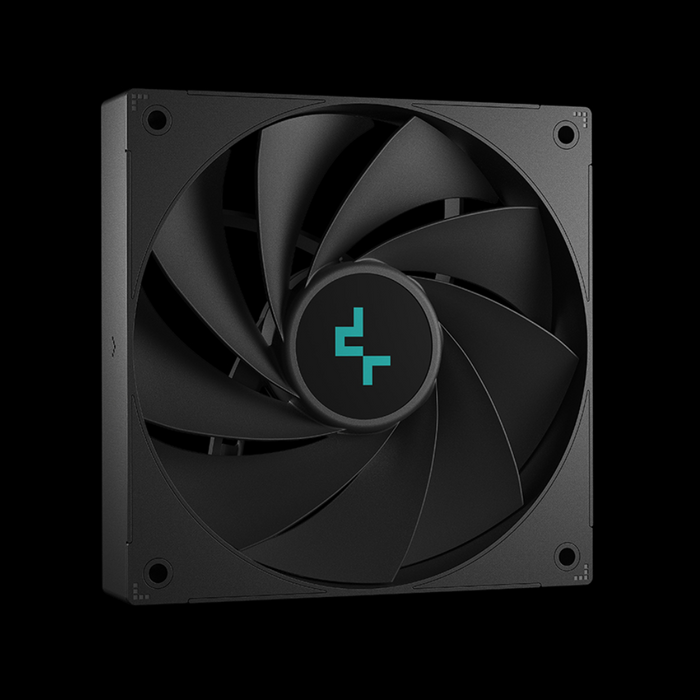

• Number of fans: 2 fans

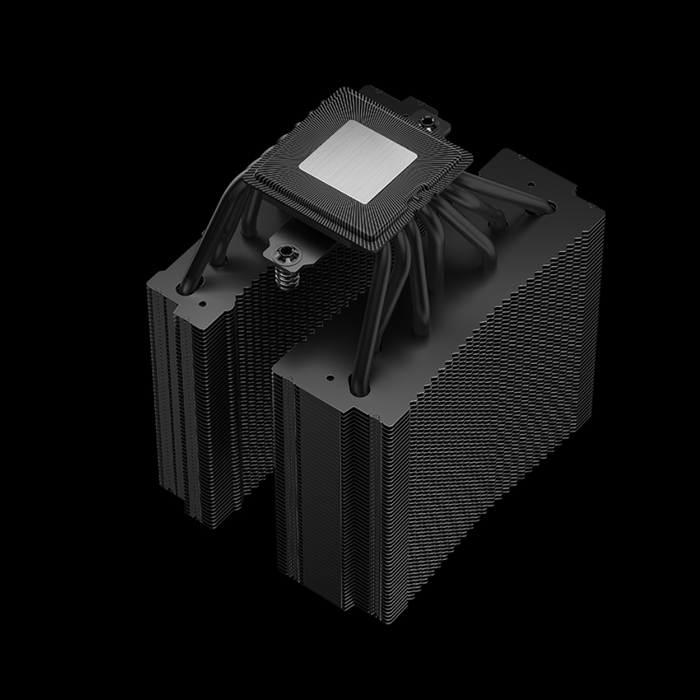

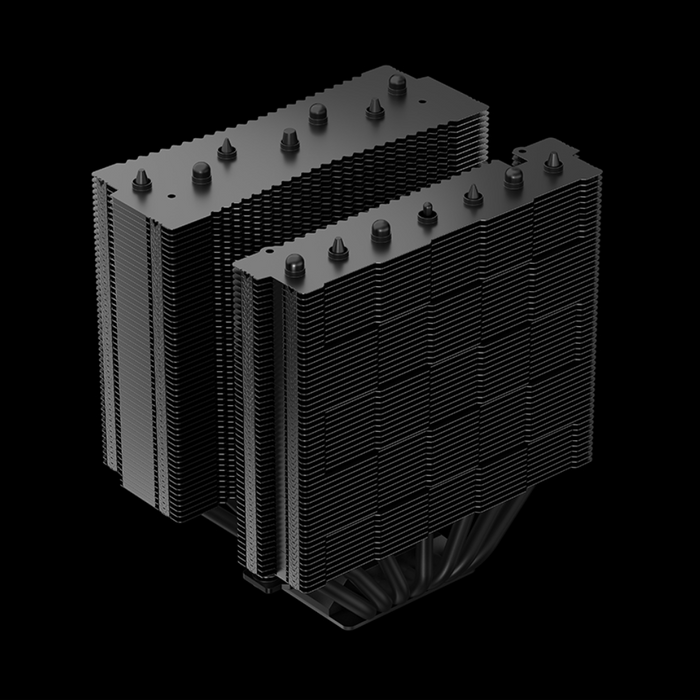

• Number of heat pipes: 7

• Fan connection: 4-pin

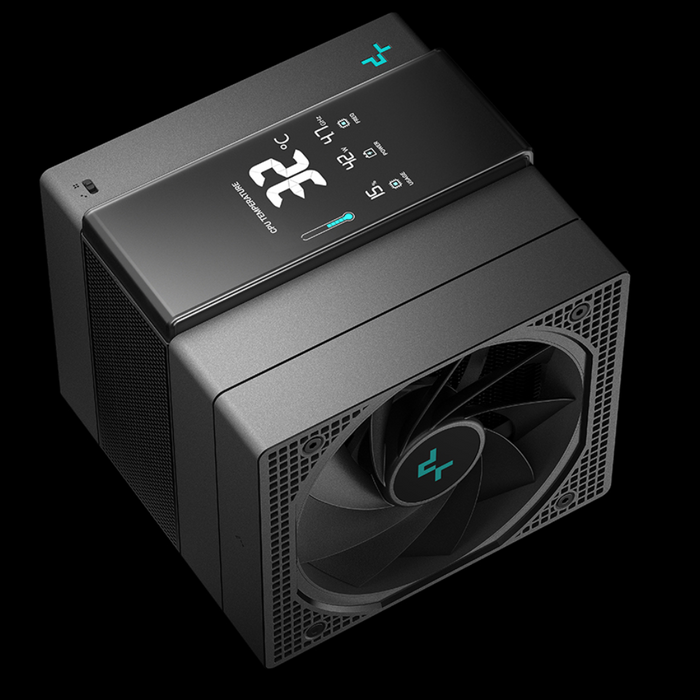

• Display device: 44.6 x 53.6 mm

Energy

• Power consumption (standard operation): 4.8 W

• Nominal voltage: 12 V

• Thermal Design Power (TDP): 300 W

• Fan voltage:12 V

• Fans electricity: 0.2 A

Weight and dimensions

• Width:147 mm

• Heating width: 14 cm

• Heating depth: 11 cm

• Heating height: 16 cm

• Depth: 144 mm

• Height: 172 mm

• Weight: 1.78 kg

• Fan dimensions (W x D x H): 140 x 140 x 25 mm

• Dimensions fan 2 (W x D x H): 120 x 120 x 25 mm

• Diameter of heat pipes: 6 mm

Packaging Data

• Packaging type: box

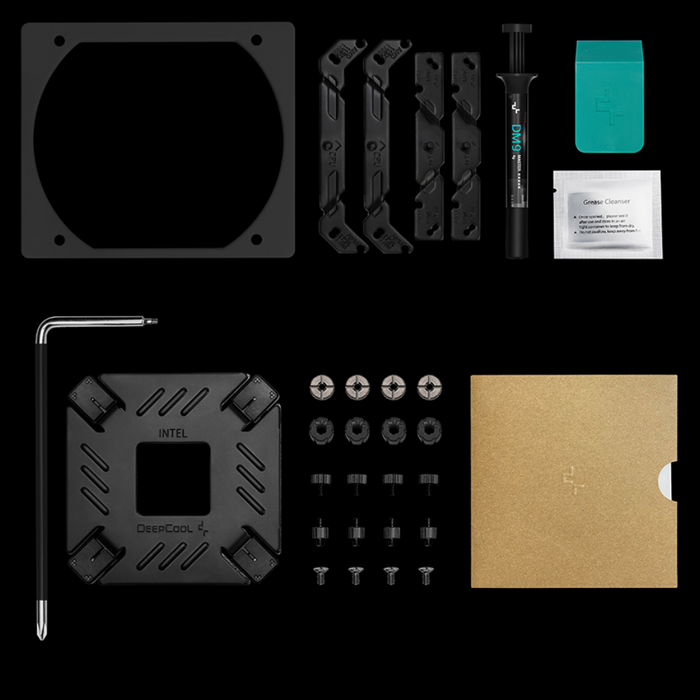

• Mounting kit: Yes
