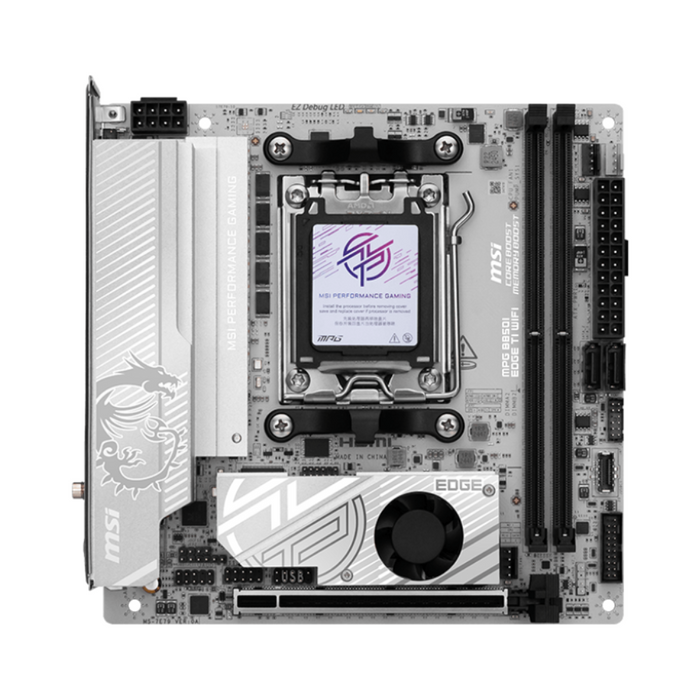

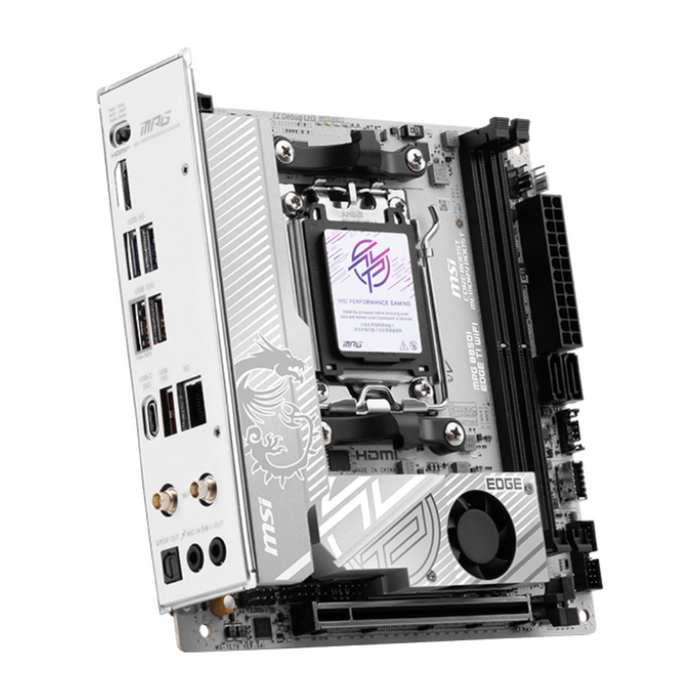

MSI Motherboard PRO B850I EDGE Ti WiFi

Specifications:

• Product Number: 7E79-001R


Processor

• Chipset: AMD B850
• CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

• Socket: AM5


Memory

• 2x DDR5 UDIMM
• Maximum Memory Capacity 128GB

• Ryzen 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 8000+ MT/s
• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPO

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 1x HDMI
• Support HDMI 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz

Slot

• 1x PCI-E x16 slot

  • PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E1 slot
  • Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

• Realtek ALC4080

• 7.1-Channel USB High-Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel

• Supports S/PDIF output

Storage

• 2x M.2

  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

  • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices

  • 2x SATA 6G
• M.2_1 slot
  • Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
• M.2_2 slot
  • Supports up to PCIe 4.0 x4
  • Supports 2280 storage devices

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices

• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

• 2x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 2x USB 5Gbps Type A (Front)

• 3x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Rear)

LAN

• 1x Realtek 8126 5G LAN

Wireless LAN and Bluetooth

• Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4**, MLO, 4KQAM

I/O

• 1x Power Connector(ATX_PWR)

• 1x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 1x System Fan

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x Addressable V2 RGB LED connector (JARGB_V2)

• 1x TPM pin header(Support TPM 2.0)

• 2x USB 2.0 ports

• 2x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

LED Feature

• 4x EZ Debug LED

• 1x EZ Memory Detection LED

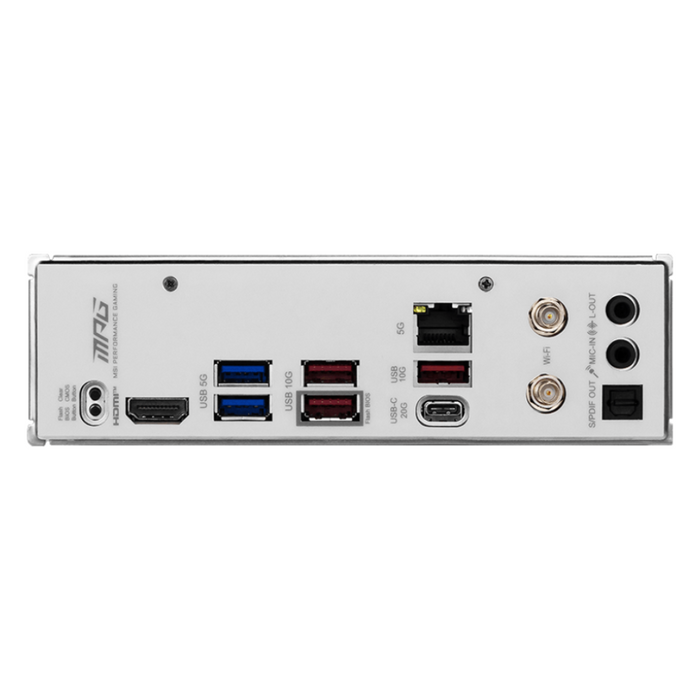

Back Panel Ports

• Clear CMOS Button
• 5G LAN

• Wi-Fi / Bluetooth

• Audio connectors

• Flash BIOS Button

• HDMI

• USB 5Gbps Type-A

• USB 10Gbps Type-A

• USB 20Gbps Type-C

• USB 10Gbps Type-A
• Optical S/PDIF OUT

Operating System

• Support for Windows 11 64-bit

PCB Info

• Mini-ITX

• 170mmx170mm
