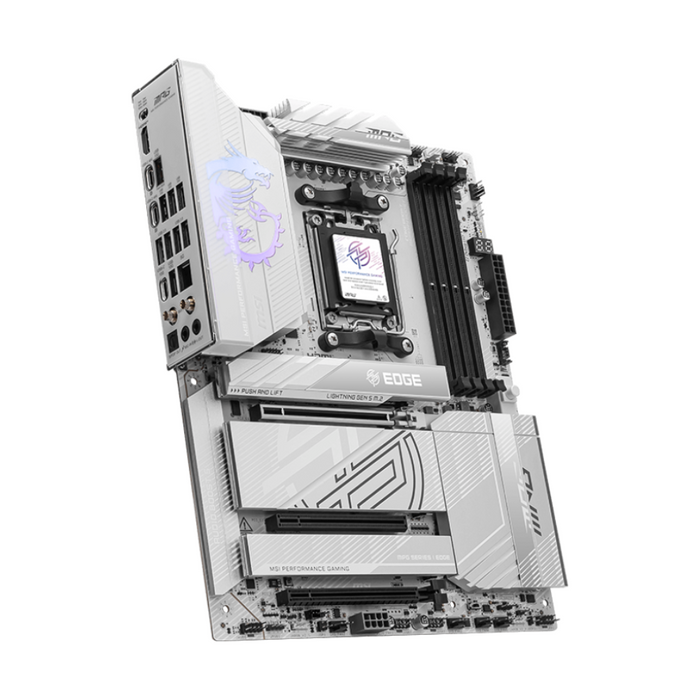

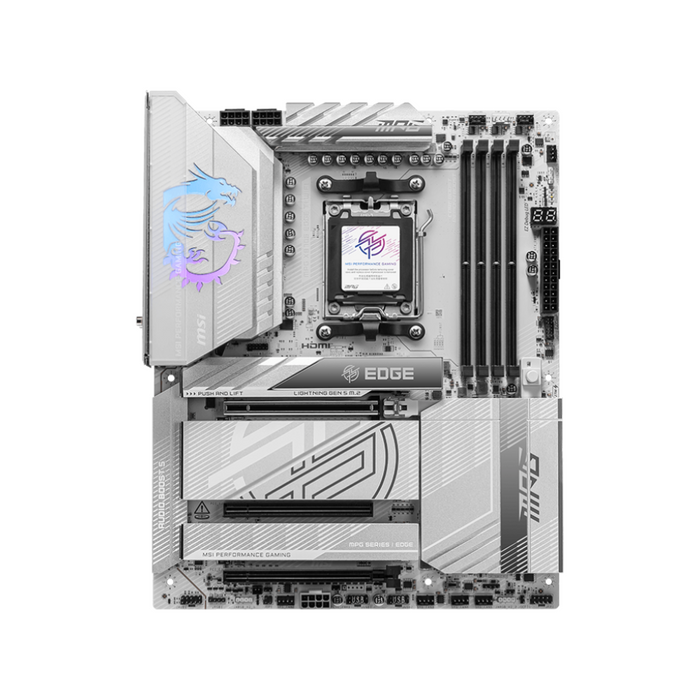

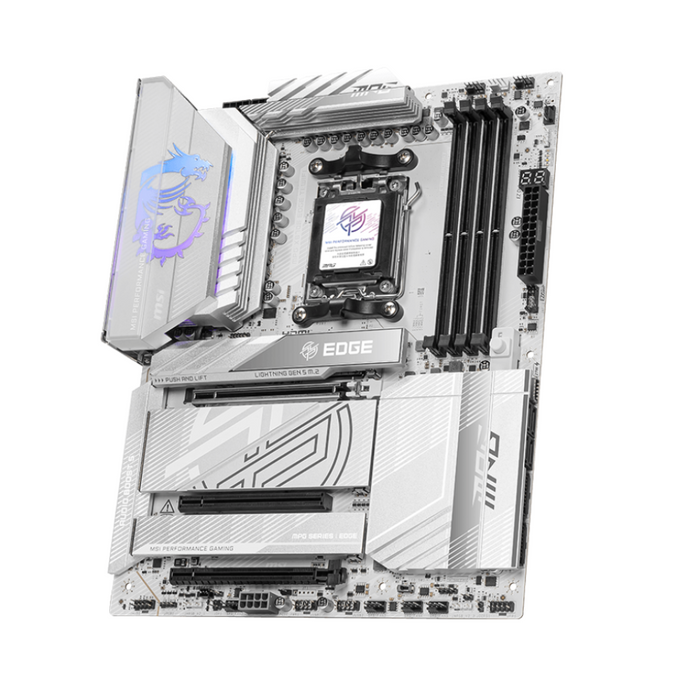

MSI Motherboard MPG X870E EDGE Ti WiFi

Specifications:

• Product Number: MPG X870E EDGE TI WIFI


Chipset

• AMD X870E

CPU

• Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  Socket AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

• Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s

  • 1DPC 2R Max speed up to 6400+ MT/s

  • 2DPC 1R Max speed up to 6400+ MT/s

  • 2DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPOTM

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 1x HDMI: Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz

• 2x Type-C DisplayPort: USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Slot

• 3x PCI-E x16 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

• Realtek ALC4080 Codec

• 7.1-Channel USB High-Performance Audio

• Supports S/PDIF output

Storage

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G
• M.2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
• M.2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• RAID 5 configuration is only supported by Ryzen 9000 series processors.
• RAID 10 for M.2 NVMe storage devices is only supported by Ryzen 9000/7000 series processors.

USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 4x USB 5Gbps Type A (Front)

• 5x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

• 1x USB 20Gbps Type C (Front)

• 2x USB 40Gbps Type C (Rear)

LAN

• 1x Realtek 8126 5G LAN

Internal IO

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)
• 1x Power Connector(PCIE_PWR 8pin)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 6x System Fan

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 20Gbps Type C ports

Wireless LAN & Bluetooth

• Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4**, MLO, 4KQAM


LED Feature

• 4x EZ Debug LED

• 1x EZ Digi-Debug LED

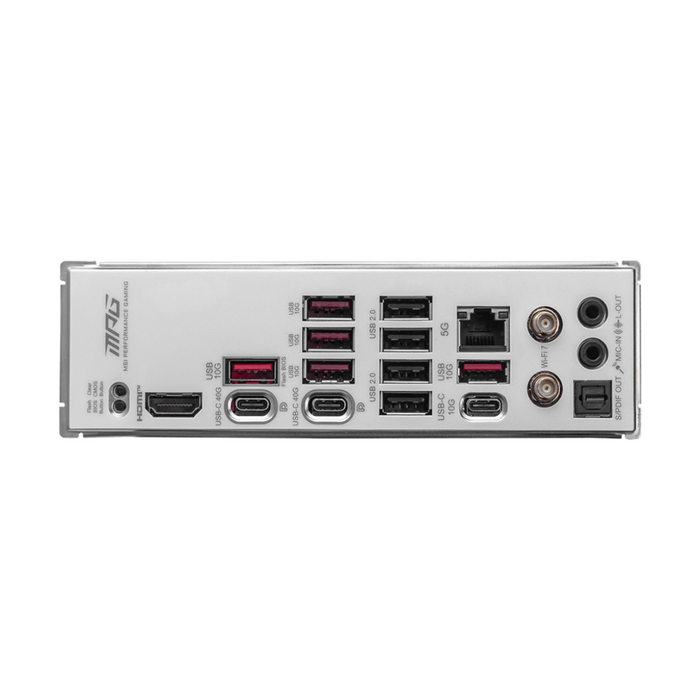

Back Panel Ports

• Clear CMOS Button

• USB 10Gbps Type-A

• USB 2.0

• 5G LAN

• Wi-Fi / Bluetooth

• Audio Connectors

• Flash BIOS Button

• HDMI

• USB 40Gbps Type-C

• USB 10Gbps Type-A

• USB 10Gbps Type-C
• Optical S/PDIF Out

Operating system

• Support for Windows 11 64-bit

PCB Info

• Size: ATX

• 243.84mm x 304.8mm
