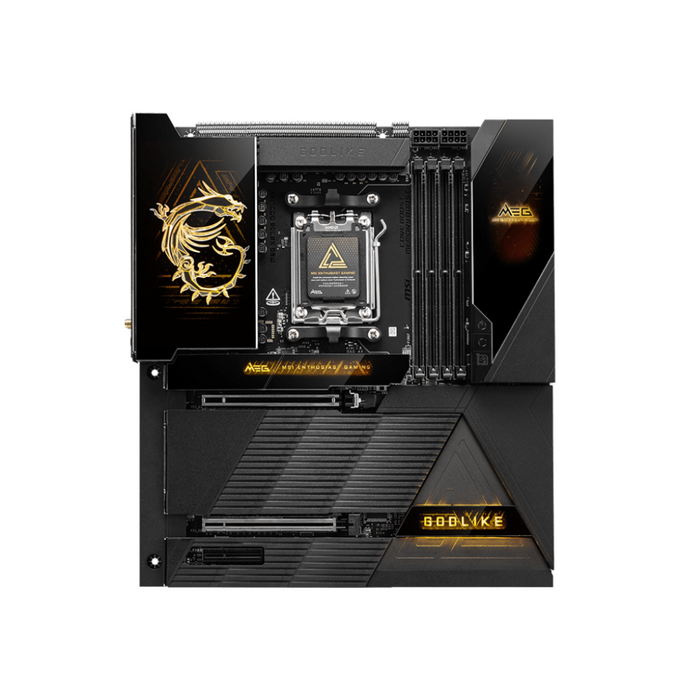

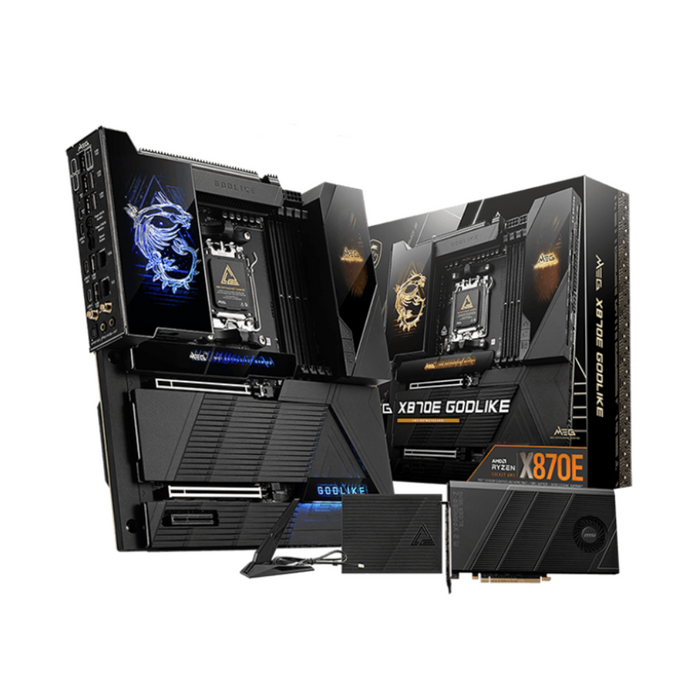

MSI Motherboard MEG X870E GODLIKE

Specifications:

• Product Number: 7E48-001R
• Model: MEG X870E GODLIKE
• Chipset: AMD X870E

• CPU: Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

• Socket AM5

Memory

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
• Ryzen 9000 Series Processors max. overclocking frequency:
  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6400+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPO
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM, Clock Driver bypass mode only

Onboard Graphics

• 2x Type-C DisplayPort

• USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz

Slot

• 2x PCI-E x16 slot

• 1x PCI-E x4 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 & PCI_E2 slots
  • Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen9000/ 7000 Series processors)
  • Supports up to PCIe 4.0 x8/ x0 (For Ryzen 8700/ 8600/ 8400 Series processors)
  • Supports up to PCIe 4.0 x4/ x0 (For Ryzen 8500/ 8300 Series processors)

• PCI_E3 slot
  • Supports up to PCIe 4.0 x4

Audio

• Realtek ALC4082 Codec + ESS9219Q Combo DAC/HPA

• 7.1-Channel USB High-Performance Audio

• Supports S/PDIF output

• Supports up to 32-Bit/384 kHz playback on front panel

Storage

• 7x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices

• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

• M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G

• M.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices

• M.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devices
• M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
  M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.
  M2_4:

• PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

RAID

• Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

USB

• 4x USB 2.0 (Front)

• 4x USB 5Gbps Type A (Front)

• 8x USB 10Gbps Type A (Rear)

• 5x USB 10Gbps Type C (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Front)

• 2x USB 40Gbps Type C (Rear)

Internal IO

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x Power Connector(PCIE_PWR 8pin)

• 1x Front Type-C Quick Charge Connector(PD_PWR1)

• 1x CPU Fan

• 2x Combo Fan (Pump_Sys Fan)

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 2x Thermal Sensor connectors(T_SEN)

• 1x Tuning Controller connector(JDASH)

• 1x Addressable V2 RGB LED connector (JARGB_V2)

• V-check point

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

• 1x USB 20Gbps Type C ports

Wireless Lan & Bluetooth

• Wi-Fi 7 Solution
• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
• Supports Bluetooth 5.4, MLO, 4KQAM

LED Feature

• 1x Dynamic Dashboard III

• 1x EZ Digit Debug LED

• 1x EZ LED Control switch

Back Panel Ports

• USB 10Gbps (Type-A)

• Flash BIOS Button

• Clear CMOS Button

• Smart Button

• 10G LAN

• 5G LAN

• Wi-Fi / Bluetooth

• HD Audio Connectors

• USB 40Gbps (Type-C)

• USB 10Gbps (Type-C)

• USB 10Gbps (Type-A)

• Optical S/PDIF-Out

PCB Info

• E-ATX

• 304.8mmx277mm
