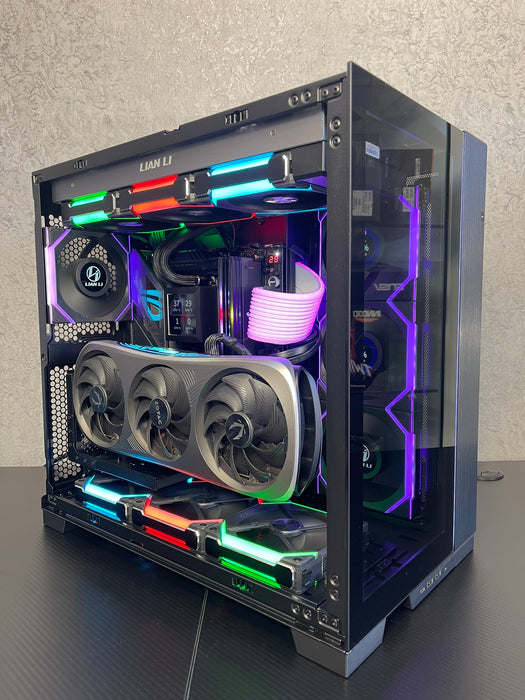

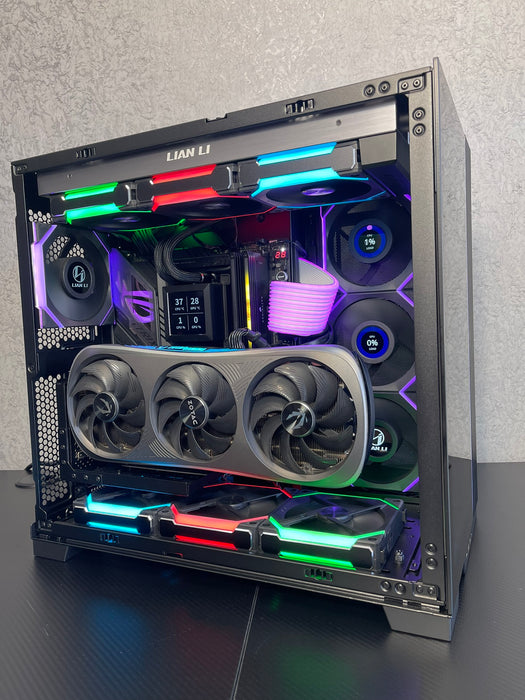

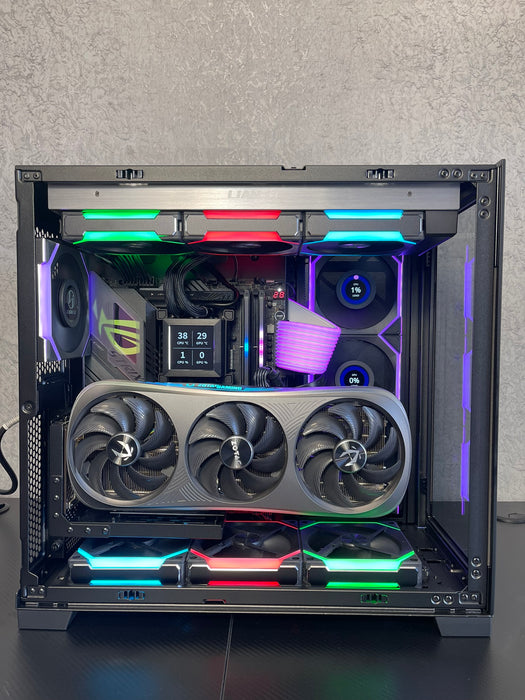

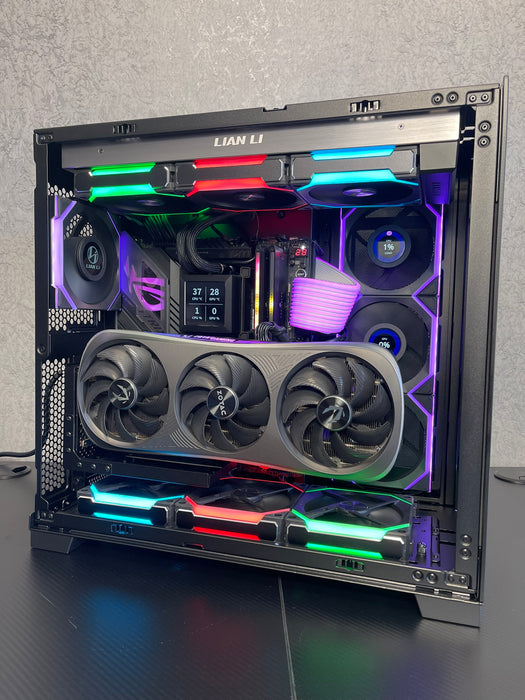

Lian Li PC Case 011 Dynamic EVO Black

Specifications:

• Product Number: O11 DYNAMIC EVO
• Case Type: Tower Chassis
• Model: O11DEX
• Colour: Black
• Dimensions: (D)465mm × (W)285mm × (H)459mm
• Material:
  • Steel
  • 4.0mm Tempered Glass
  • Aluminium
• Motherboard Support:
  • E-ATX (Under 280mm)
  • ATX
  • Micro-ATX
  • Mini-ITX
• Expansion Slots: 8
• Storage
• Behind MB Tray: 3 x 2.5” SSD
• Hard Drive Cage: 4 x 3.5” HDD / 2.5” SSD
• GPU Length Clearance: 426mm (Max.)
• CPU Cooler Height Clearance: 167mm (Max.)
• PSU: 220mm
• Fan Support:
  • Top: 120mm × 3 or 140mm × 2

  • Side: 120mm × 3 or 140mm × 2

  • Bottom: 120mm × 3 or 140mm × 2

  • Rear: 120mm × 1

  • On Drive Cage: 60mm × 1
• Radiator Support:
  • Top: 360mm × 1 or 280mm × 1
  • Side: 360mm × 1 or 280mm × 1

  • *Inner scenario total max thickness:

  • 83mm(120mm fan on top and bottom)

  • 63mm(140mm fan on top and bottom)

  • *Outer scenario total max. thickness：

  • 120mm(120mm fan on top and bottom)

  • 100mm(140mm fan on top and bottom)

  • Bottom: 360mm × 1

  • *Total max thickness: 87.5mm
• Drive Support:
  • Bottom：2.5” SSD × 4 or 3.5” HDD × 2

  • Side：2.5” SSD × 4 or 3.5” HDD × 2

  • Drive Cage：2.5” SSD × 3 or 3.5” HDD × 2 + 2.5” SSD × 1

  • Cable Management Bar：2.5” SSD × 2

  • *Only 9 sets of 2.5” SSD mounting pads are provided
• I/O Ports:
  • 2 × USB 3.0

  • 1 × USB 3.1 TYPE-C,

  • 1 × HD AUDIO/ MIC

  • LED Color and Mode button

  • Reset Button

  • Power Button
• Dust Filters:
  • 1 x Bottom
• Warranty: 1 year
