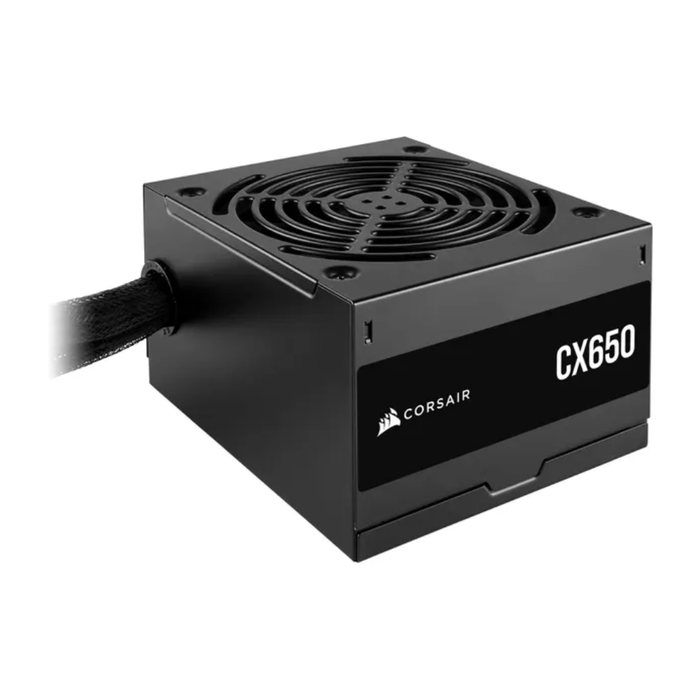

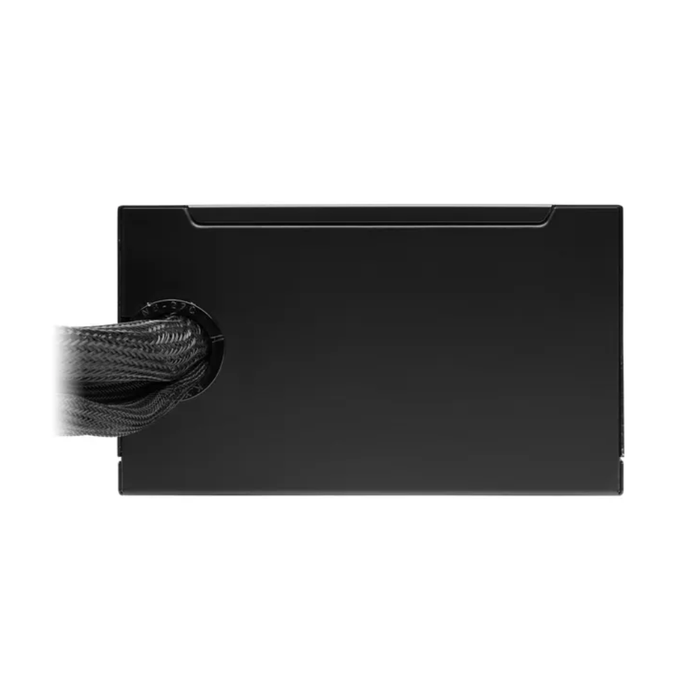

Corsair Power Supply CX650 650W

Specifications:

• Product Number: CP-9020278-EU

Power

• Combined power (+12V): 624 W

• Max. output current (+5Vsb): 3 A

• AC input voltage: 100 - 240 V

• Combined current (+5Vsb): 15 W

• Combined current (-12V): 3.6 W

• Max. output current (+12V): 52 A

• Max. output current (+3.3V): 24 A

• AC input frequency: 47 - 63 Hz

• Maximum output current (+5V): 20 A

• Combined current (+5V): 130 W

• Input current: 10 - 5 A

• Combined current (+3.3V): 130 W

• Total performance: 650 W

• Max. output current (-12V): 0.3 A

Connections and interfaces

• Number of PCI Express power connectors: 6+2pin: 1

• Motherboard connector: 24-pin ATX

• Number of Molex connectors: 4-pin: 0

• EPS power connector (8-pin): Yes

• Cable type: Non-modular

• Power cable length motherboard: 60 cm

• Number of SATA power connectors: 8

Design

• Cooling: Active

• Product color: Black

• Number of fans: 1 fan

• Fan placement: Above

• Fan diameter: 12 cm

Weight and dimensions

• Depth: 125 mm

• Width: 150 mm

Other

• Purpose: PC

• Power Supply Unit (PSU) Form Factor: ATX

• 80 Plus Certification: 80 PLUS Bronze
