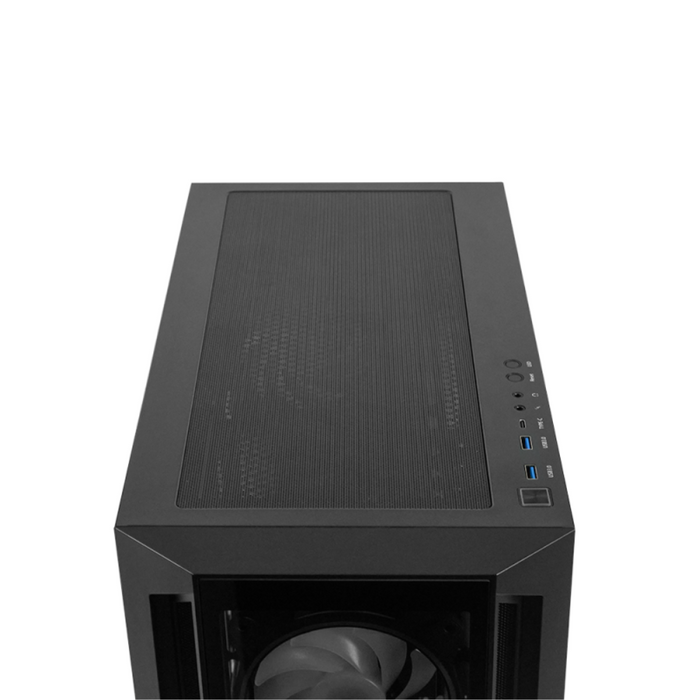

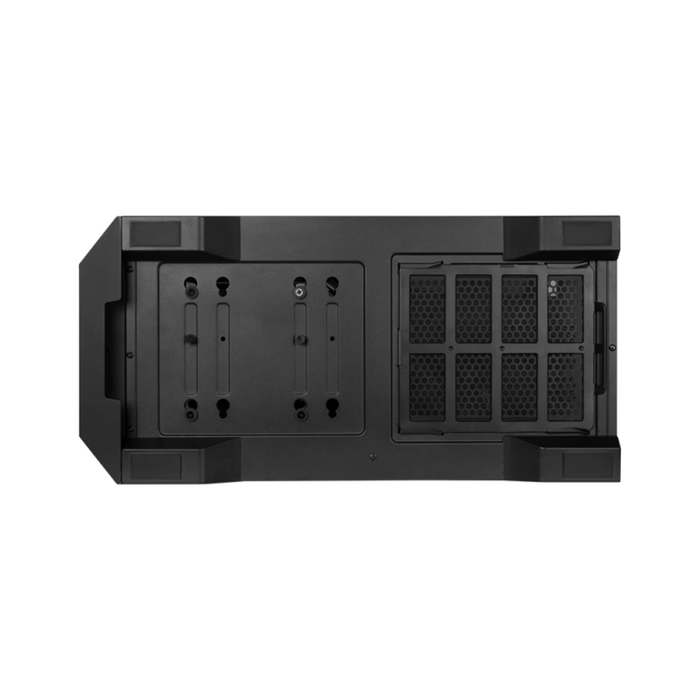

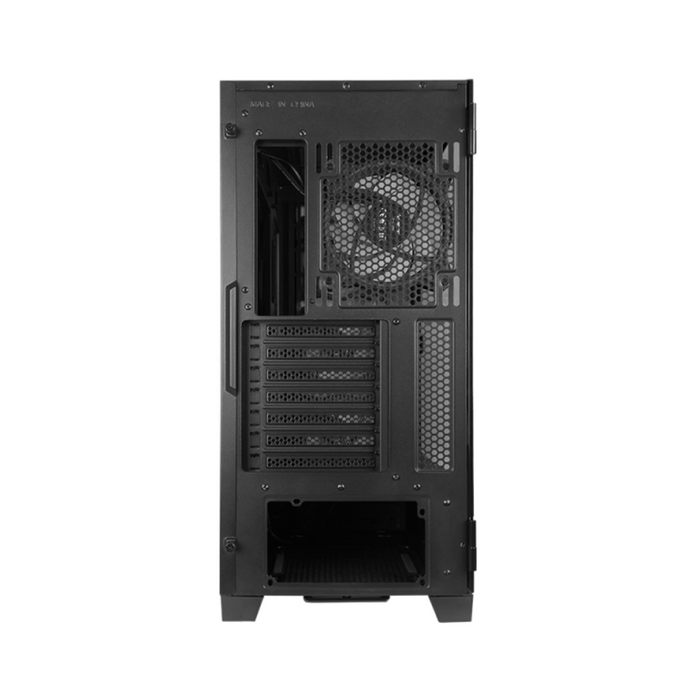

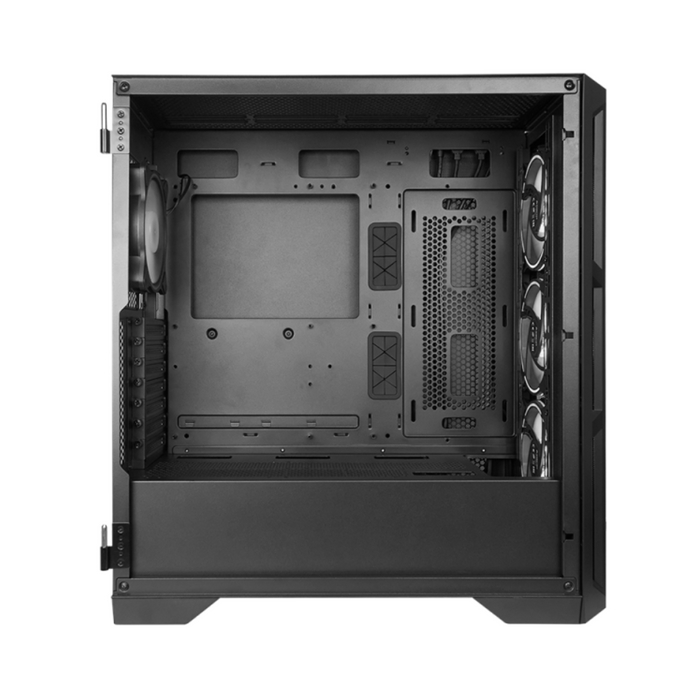

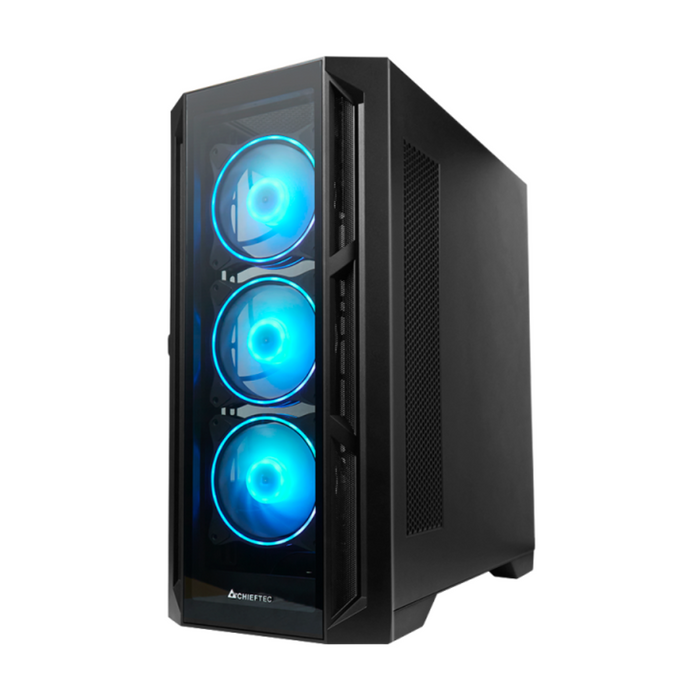

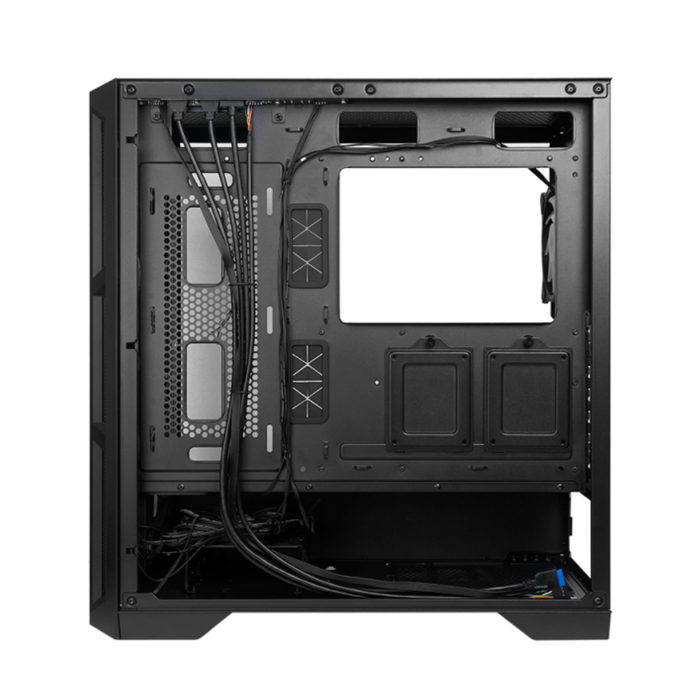

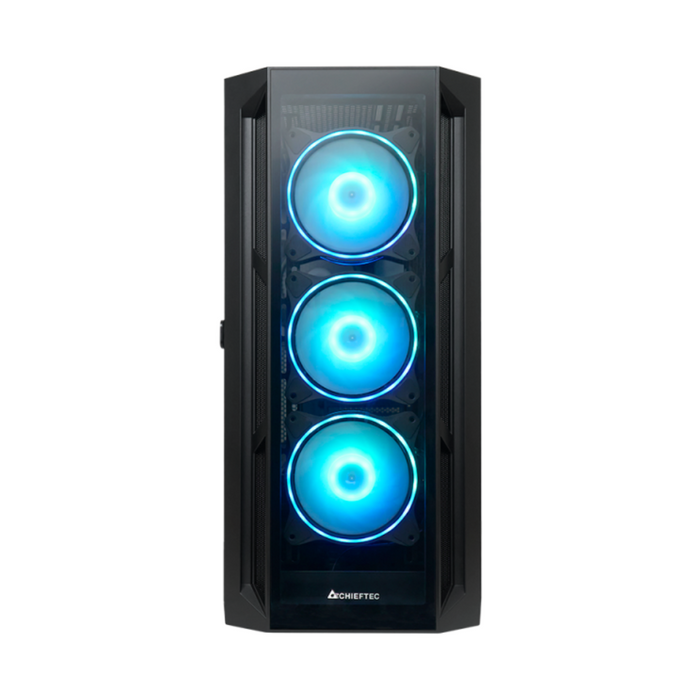

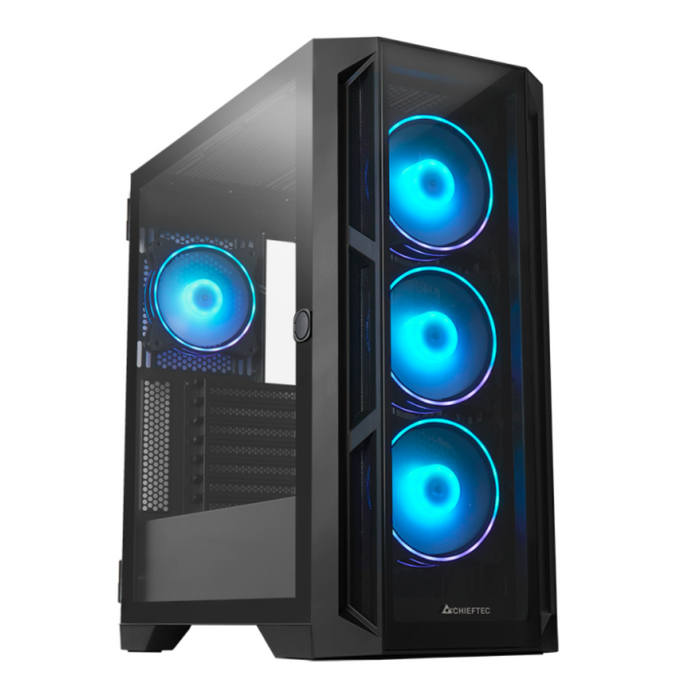

Chieftec PC Case GA-01B-TG-OP

Specifications

• Product Number: GA-01B-TG-OP
• Model: APEX

• Colour: Black

• Material: Material 0.6mm SPCC and tempered glass at left side panel
  Motherboard support: Mini ITX, M-ATX, ATX, E-ATX
• Dimensions:
  • Depth: 465mm
  • Width: 230mm
  • Height: 495mm
• Weight (without/with package): 8.0 kg / 9.50 kg

• Drive bay internal: 3x 2.5“ and 1x 3.5“ / 2x 2.5“ and 2x 3.5“

• Power supply: ATX PSU (optional, ~220mm)

• Front I/O: 1x USB3.2 Gen2 Type C, 2x USB3.0 , Audio-out (AZALIA / HD-Audio), Mic-In, RGB Mode Button

• Scope of delivery: Set of screws, instruction manual

• RGB control hub (DF-200) with 3PIN +5V M/B Sync and SATA power cable

• Front: 3x 120mm A-RGB rainbow fans pre-installed

• Rear: 1x 120mm A-RGB rainbow fan pre-installed

• Expansion slots: 7

• Cooling Compatibility:
  • Front: 3x 120mm or 3x 140mm or 240mm/280mm/360mm radiator or 420mm radiator

  • Top: 3x 120mm or 2x 140mm or 240mm radiator or 280mm radiator or 360mm radiator

  • Rear: 1x 120mm or 1x 140mm

• PSU Cover : 2 x 120mm fan

• Side: 2 x 120mm fan

• CPU cooler height (max.): 175mm

• VGA card length (max.): 400mm
