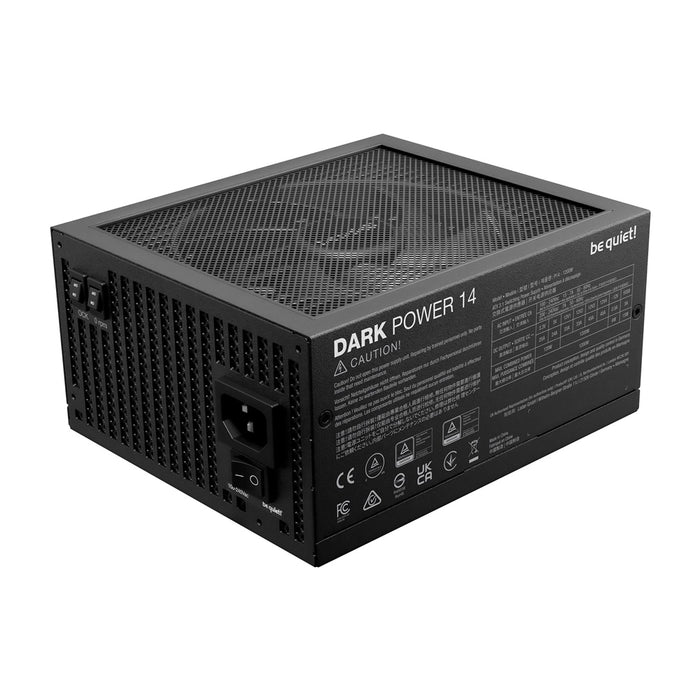

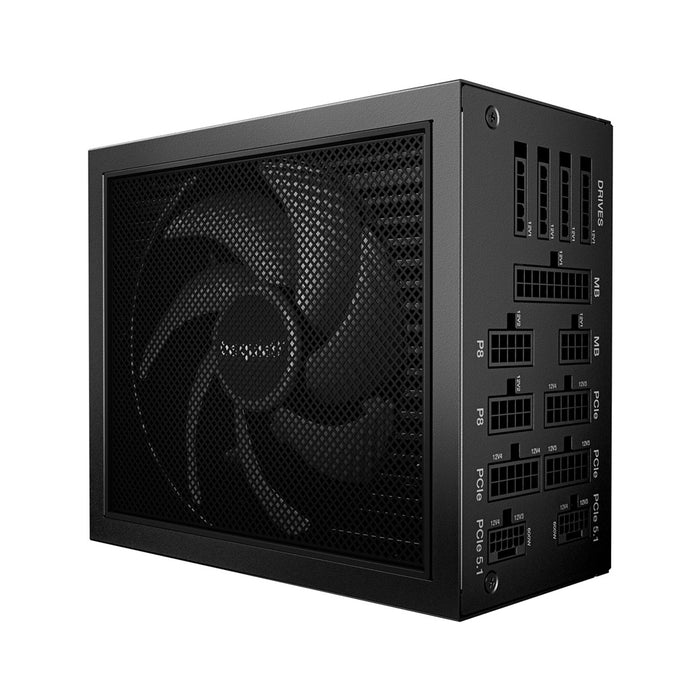

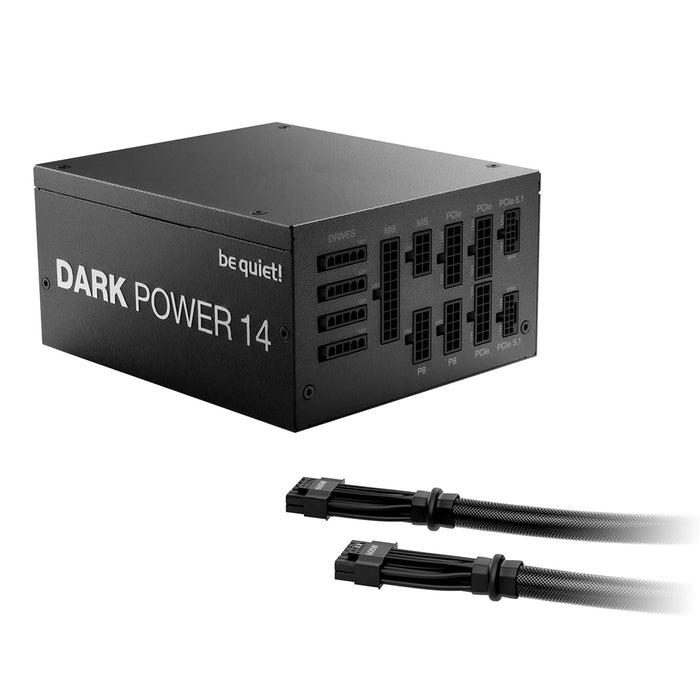

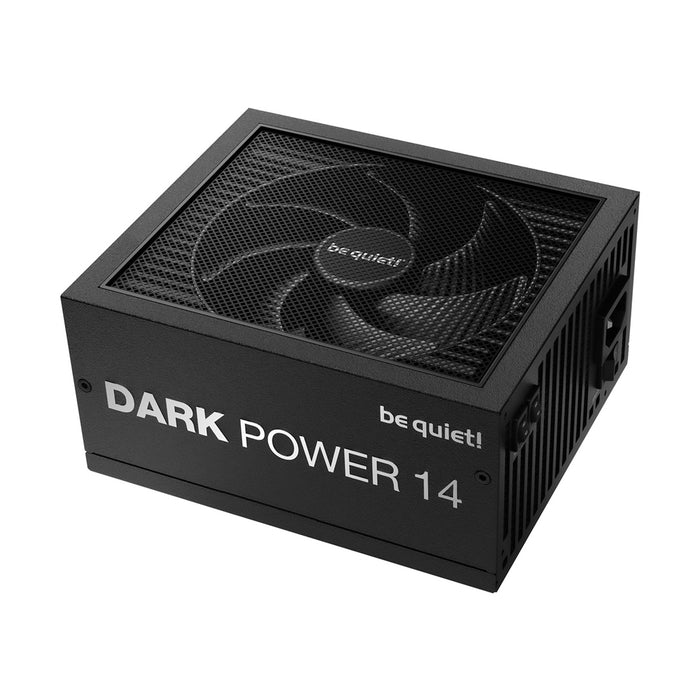

Be Quiet Power Supply Dark Power 14 Plus Titanium 1200W

Specifications:

• Product Number: BP021EU
• Total power: 1200 W

• Peak power: 1300 W

• AC input voltage: 100 - 240 V

• AC input frequency: 50/60 Hz

• Maximum input current (@110V): 10 A

• Maximum input current (@220V): 5 A

• Power factor: 0.98

• Number of +12V rail(s): 4

• Combined power (+3.3V): 120 W

• Combined power (+12V): 1200 W

• Combined power (+5V): 120 W

• Max output current (+3.3V): 25 A

• Max output current (+12V1): 33 A

• Max output current (+12V2): 33 A

• Max output current (+12V3): 45 A

• Max output current (+12V4): 45 A

• Max output current (+5V): 24 A

• Max output current (-12V): 0.5 A

• Max output current (+5Vsb): 3 A

• Hold time: 19.5 ms

• Efficiency: 93.1%

• Power protection features:

  • Over current

  • Over voltage

  • Overheating

  • Overload

  • Short circuit

  • Surge & inrush protection (SIP)

  • Under voltage

Cables and connectors

• Motherboard power connector: 20+4 pin ATX

• Motherboard power cable length: 60 cm

• Number of SATA power connectors: 13

• SATA power cable length:

  • 1050 mm

  • 600 mm

  • 750
• Peripheral (Molex) power connectors (4-pin): 2

• Peripheral (Molex) power cable length:

  • 1050 mm

  • 900

• EPS power connector (8-pin): Yes
• EPS power connector (4+4 pin): Yes
• PCI Express power connectors (6+2 pin): 4

• PCI Express power connectors (12-pin): 2

• PCI Express power cable length: 60 cm

• CPU power connector (4+4 pin): Yes

• CPU power cable length: 70 cm

• ATX power connector (20+4 pin): Yes

• PCI Express connector: Yes

• Cabling type: Fully-Modular

Performance

• 80 PLUS certification: 80 PLUS Titanium

• Purpose: PC

• Power supply unit (PSU) form factor: ATX

• ATX version: 3.1

• EPS version: 2.92

• Noise level: 21.1 dB

• Bearing technology: FDB

• Mean time between failures (MTBF): 100000 h

Design

• Product colour: Black

• Cooling type: Active

• Fan diameter: 13.5 cm

• Number of fans: 1 fan(s)

• Fan speed: 0 - 2100 RPM

• On/off switch: Yes

Weight & dimensions

• Width: 150 mm

• Depth: 175 mm

• Height: 86 mm

• Weight: 2.3 kg

Packaging data

• Manual: Yes

 Technical details

• Sustainability certificates

  • ENERGY STAR

  • ErP

  • Triman

Other features

• Screws included: Yes

• Cable ties included: Yes
