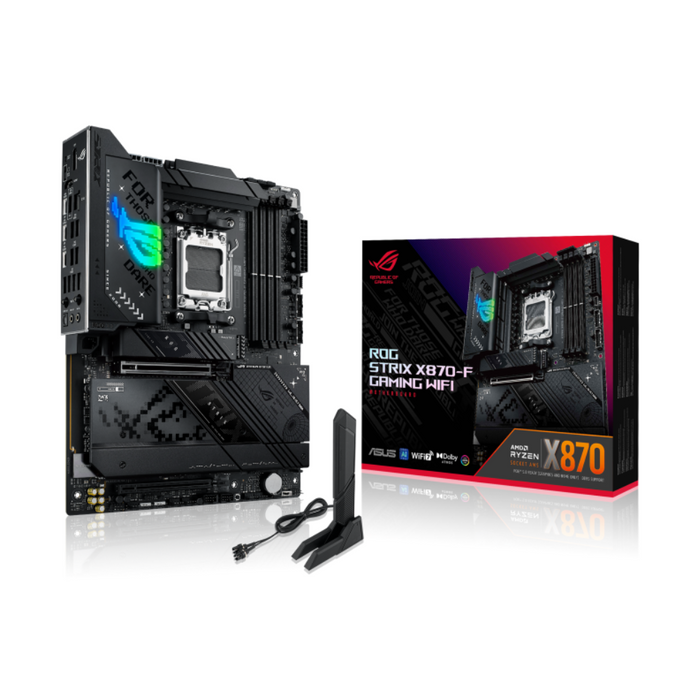

Asus Motherboard ROG Strix X870-F Gaming WiFi

Asus Motherboard ROG Strix X870-F Gaming WiFi

by Asus
SKU CMB-277
€549,00 - €549,00
€549,00
€549,00 - €549,00
€549,00

Specifications:

  • Product Number: ROGSTRIXX870-FGAMWIFI
  • Model: ROG STRIX X870-F GAMING WIFI

CPU

  • AMD Socket AM5 for AMD Ryzen™ 9000 &
    8000 & 7000 Series Desktop Processors

Chipset

  • AMD X870 Chipset

Memory

  • 4 x DIMM slots, max. 192GB, DDR5
  • Supports up to 8000+MT/s(OC) with Ryzen™
    9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
    Memory
  • Dual channel memory architecture
  • Supports AMD Extended Profiles for
    Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)

Graphics

  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB
  • Type-C® display outputs

Expansion Slots

  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD X870 Chipset
    • 1 x PCIe 4.0 x16 slots (support x1 mode)

Storage

  • Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
  • AMD X870 Chipset
    • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • 2 x SATA 6Gb/s ports

Ethernet

  • 1 x Intel® 2.5Gb Ethernet
  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7
  •  2x2 Wi-Fi 7 (802.11be)
  •  Supports 2.4/5/6GHz frequency band
  •  Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  •  Bluetooth® v5.4

USB

  • Rear USB (Total 12 ports)
    • 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)
    • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
    • 4 x USB 5Gbps ports (4 x Type-A)
  • Front USB (Total 9 ports)
    • 1 x USB 20Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
    • Impedance sense for front and rear headphone outputs
    • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    • High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    • Supports up to 32-Bit/384 kHz playback on front panel"
  • Audio Features
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Audio cover

Back Panel I/O Ports

  • 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)**
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet
  • 2 x Audio jacks 
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button 
  • 1 x Clear CMOS button 

Internal I/O Connectors

  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 5 x 4-pin Chassis Fan headers
  • Power related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connectors
  • Storage related
    • 4 x M.2 slots (Key M)
    • 2 x SATA 6Gb/s ports
  • USB
    • 1 x USB 10Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Clear CMOS header
    • 1 x COM Port header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x S/PDIF Out header
    • 1 x SPI TPM header (14-1 pin)
    • 1 x 10-1 pin System Panel header

Software Features

  • Extreme Engine Digi+
    • 5K Black metallic capacitors
  • ASUS Q-Design
    • M.2 Q-Latch
    • M.2 Q-Release
    • M.2 Q-Slide
    • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    • Q-Antenna
    • Q-Dashboard
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsink backplate
    • M.2 heatsink
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • Clear CMOS button
    • ProCool II
    • Pre-mounted I/O shield
    • SafeSlot
    • SafeDIMM
  • Aura Sync
    • Addressable Gen 2 headers

Accessories

  • Cables
    • 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x ASUS WiFi Q-Antenna
    • 1 x Cable ties package
    • 1 x M.2 Q-Latch package
    • 1 x M.2 Q-Slide package
    • 1 x ROG key chain
    • 1 x ROG Strix stickers
    • 4 x M.2 rubber packages
  • Documentation
    • 1 x Quick start guide
  • Additional Cooling Kit
    • 1 x Thermal pad for M.2 22110

Operating System

  • Windows® 11

Form Factor

  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

-Despite our best efforts we cannot guarantee that the published specifications and images do not contain errors or mistakes.
