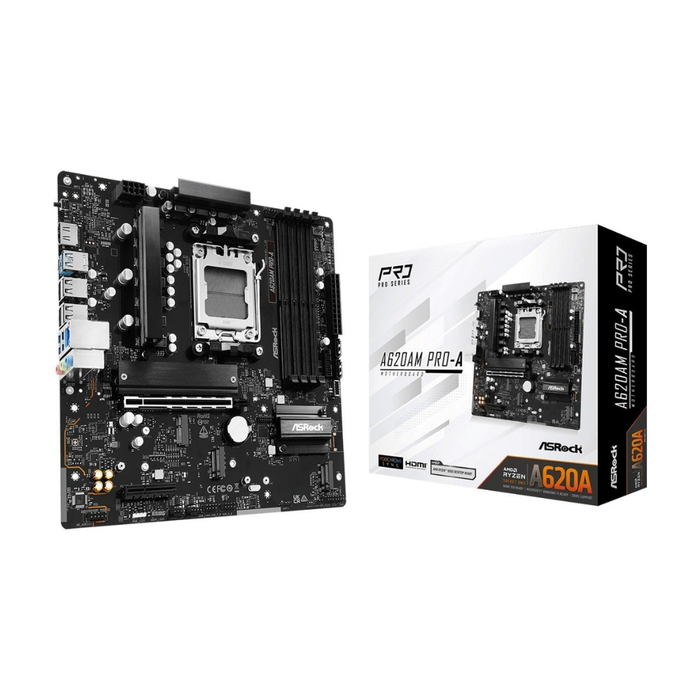

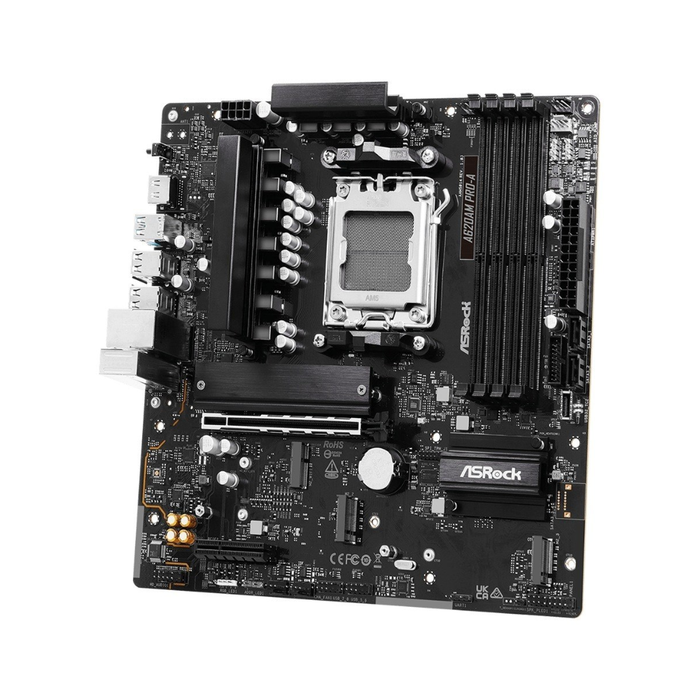

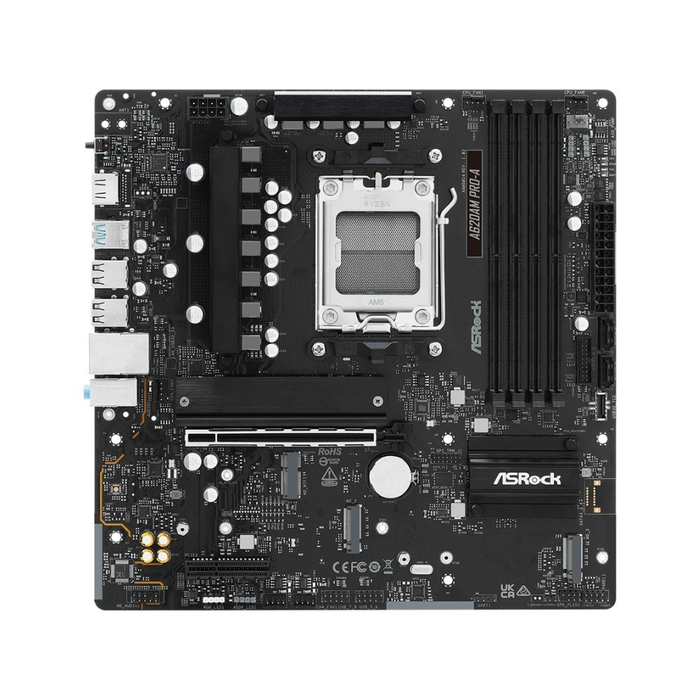

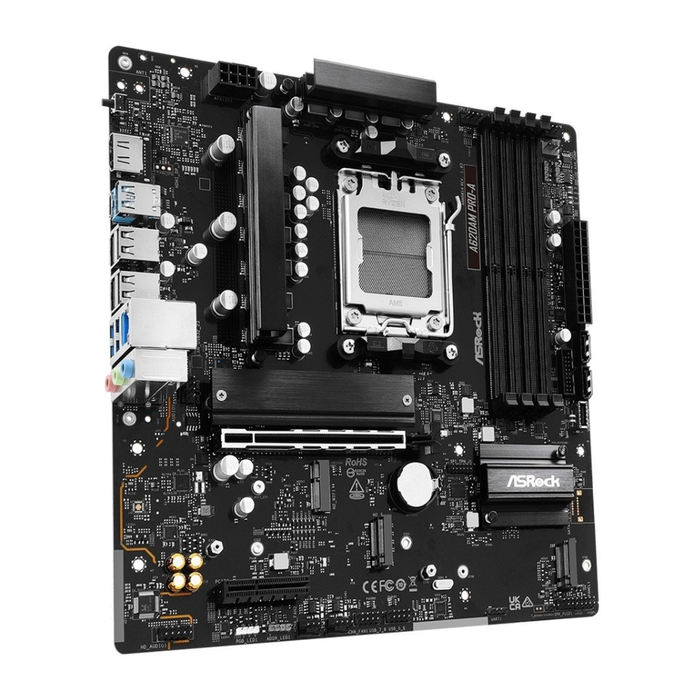

Asrock Motherboard A620AM PRO-A

Specifications:

• Product Number: A620AM PRO-A

Processor

• Processor manufacturer: AMD

• Processor socket: Socket AM5

• Compatible processor series: AMD Ryzen 7000, 8000, 9000 Series

Memory

• Supported memory types: DDR5 UDIMM

• Number of memory slots: 4

• Memory slots type: DIMM

• Memory channels: Dual-channel

• Maximum internal memory: 256 GB

Storage controllers

• Supported storage drive types: HDD & SSD

• Supported storage drive interfaces: M.2, SATA

• Number of HDDs supported: 2

• RAID support: Yes


Internal I/O

• USB 2.0 connectors: 2

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1

• Number of SATA III connectors: 2

• ATX Power connector (24-pin): Yes

• Power fan connector: Yes

• CPU fan connector: Yes

• TPM connector: Yes

• RGB LED pin header: Yes

• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Rear panel I/O ports

• USB 2.0 ports quantity: 4

• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

• Ethernet LAN (RJ-45) ports: 1

• HDMI ports quantity: 1

• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 3

Network

• Ethernet LAN: Yes

• Ethernet interface type: Gigabit Ethernet

• Wi-Fi: No

• Bluetooth: No

Features

• Motherboard chipset: AMD A620

• Audio output channels: 7.1 channels

• Motherboard form factor: micro ITX

• Motherboard chipset family: AMD

• Windows operating systems supported: Windows 10, Windows 11

• Certification: FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required)

Expansion slots

• PCI Express x16 (Gen 4.x) slots: 1

• Number of M.2 (M) slots: 3

• Number of M.2 (E) slots: 1

BIOS

• BIOS type: UEFI AMI

Weight & dimensions

• Width: 244 mm

• Depth: 244 mm

Packaging content

• Bundled software: ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
